Rockwell Allen Bradley 1747-DTAM Data Table Access Module, LCD, 2 x 16 Ch
Sku:1747-DTAM
Country Of Origin: USA
Vendor: Allen Bradley
Type: Data Table Access
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1747-DTAM is a PLC Data Table Access Module designed for use with Allen-Bradley SLC 500 processors. It enables users to modify, monitor, clear faults, and transfer memory for efficient control and monitoring of plant operations.
Key Specifications
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number/Catalog No.: 1747-DTAM
Series: SLC 500
Product Type: PLC Data Table Access Module
UNSPSC: 43232608
Electrical Specifications
Supply Voltage: 12 Volts DC
Current Rating: 0.5 Amps
Input Voltage Range: 18 to 30 Volts DC
Input Current (Max at 24V DC): 104 mA
Physical Characteristics
Dimensions: 458 x 155 x 508 mm
Weight: 2.4 kg
Mounting Type: Panel Mount

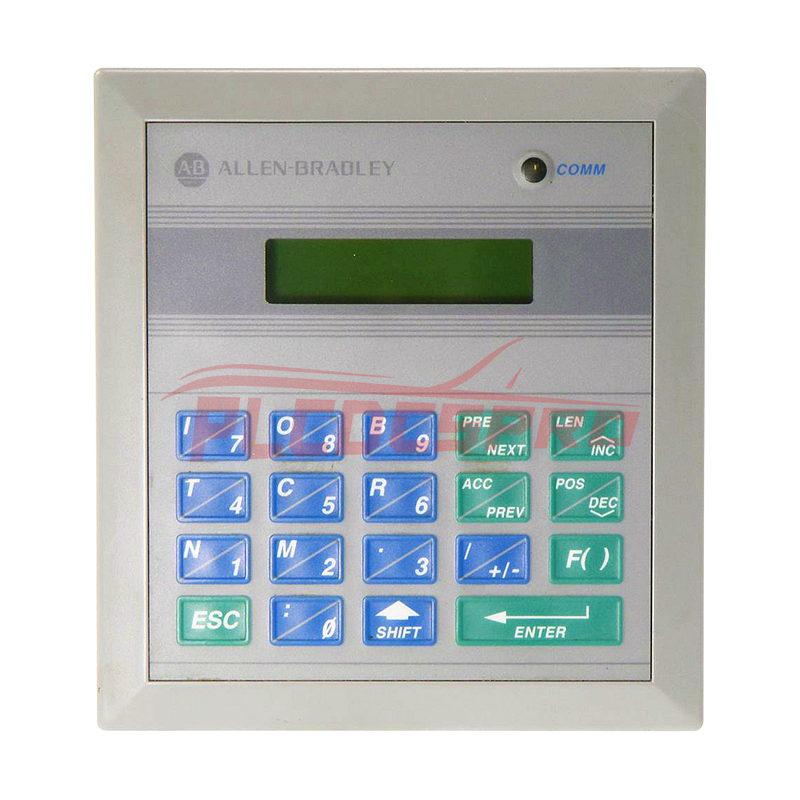

Display and Interface
Display: LCD Monochrome Display with Back-Lighting
Display Characteristics: 2 lines of 16 characters, adjustable contrast
Keypad: 19 sealed membrane keys with tactile feedback
Language Support: Six languages (English, French, German, Italian, Spanish, Japanese)
Environmental Specifications
Operating Temperature: 0 to 55 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Features
Supports modifying file information, changing operating modes, monitoring and clearing faults, and transferring memory.
Operates in monitor or modify modes.
Equipped with a status indicator and an interconnect cable for connecting to processors.
Factory default settings include:
Language: English
DTAM Node Address: 0
Baud Rate: 19200
Auto-Attach: OFF
LCD Backlighting: ON
Monitor Override: OFF
Connection Details

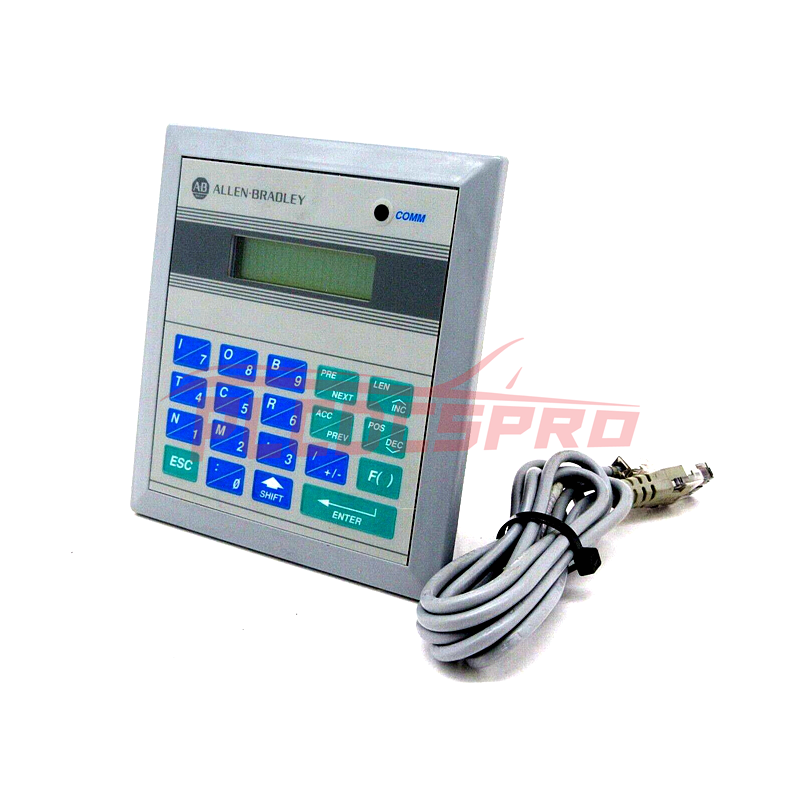

Connects to SLC processors via the 1747-C10 interconnect cable.
Compatible with SLC 5/03 and later processors; floating point, string, and ASCII data values are not supported.
For SLC 5/03, the keyswitch must be in REM position to switch operating modes.
Can interface with a 1747-AIC link coupler and connects using Belden 9842 communication cable for SLC 5/04 processors.
