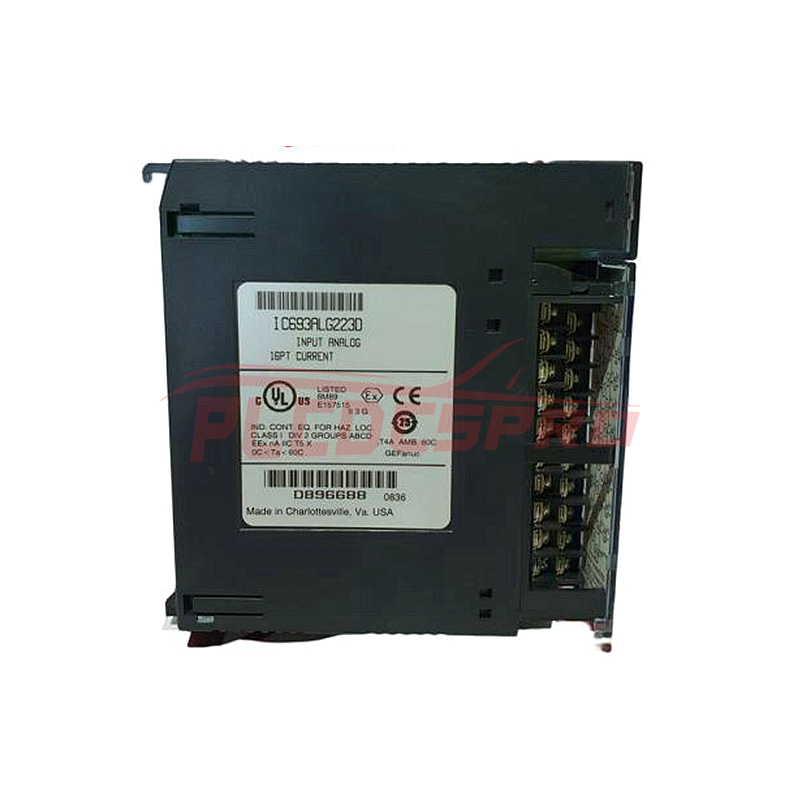

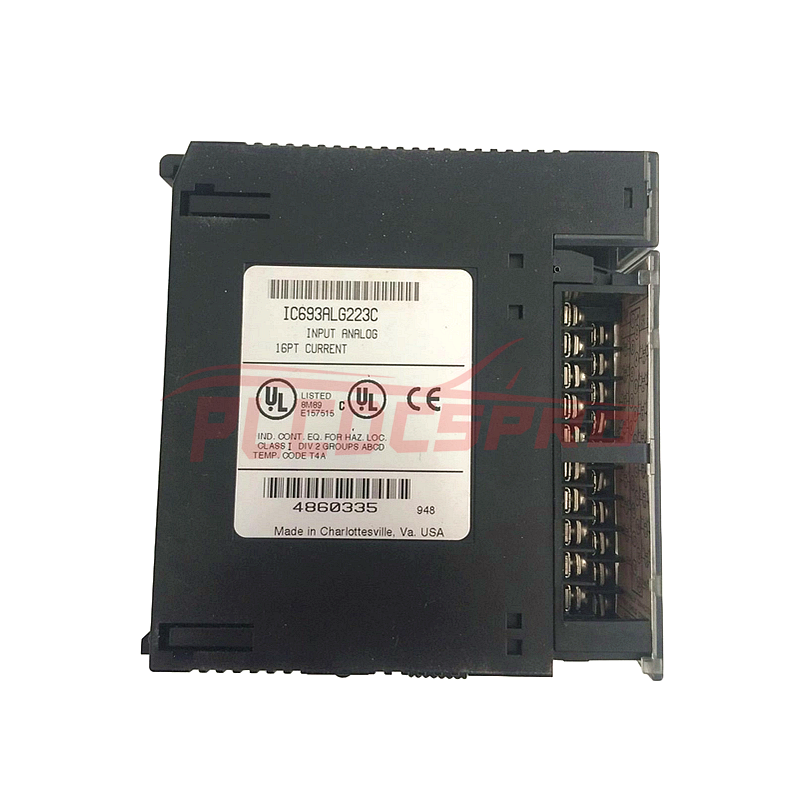

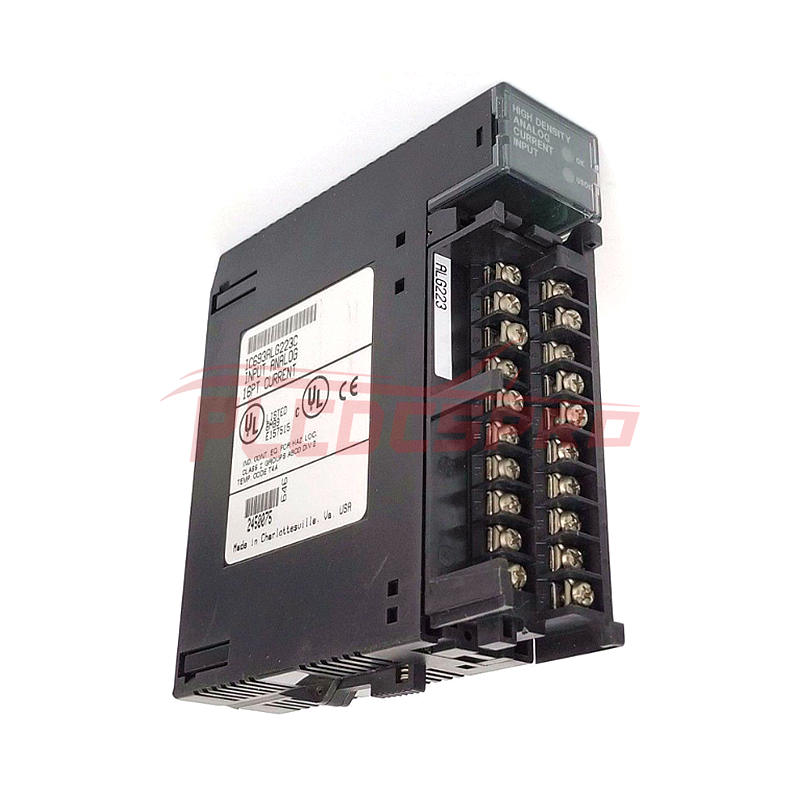

IC693ALG223 | GE Fanuc 90-30 Series RX3i 16PT Analog Current Input Module
Sku:IC693ALG223
Country Of Origin: USA
Vendor: GE
Type: Analog Current Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: GE
Product No.: IC693ALG223
The PACSystems RX3i/Series 90* 16-Channel Analog Current Input module provides 16 single-ended input channels, configurable for three input ranges:
4 to 20 mA
0 to 20 mA
4 to 20 mA Enhanced
Each channel supports high and low alarm limits. In the 4 to 20 mA Enhanced range, a low alarm limit can detect input current from 4 mA to 0 mA, enabling open-wire fault detection in 4 to 20 mA applications. The module reports module and external power supply status to the CPU.
Specifications:
Number of Channels: 1 to 16 selectable; single-ended
Input Current Ranges: 0 to 20 mA, 4 to 20 mA, and 4 to 20 mA Enhanced (selectable per channel)
Calibration: Factory calibrated to:
4 μA per count on 4 to 20 mA range
5 μA per count on 0 to 20 mA and 4 to 20 mA Enhanced range
Update Rate: 6 ms
Resolution:
4 μA (4 μA/bit) at 4–20 mA
5 μA (5 μA/bit) at 0–20 mA
5 μA (5 μA/bit) at 4–20 mA Enhanced
Absolute Accuracy: ±0.25% of full scale @ 25°C; ± 0.5% of full scale over specified operating temperature range
Linearity: < 1 LSB from 4 to 20 mA; < 1 LSB from 100 μA to 20 mA
Isolation, Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute
Common Mode Voltage: 0 volts (single-ended channels)
Cross–Channel Rejection: > 70dB from DC to 1kHz
Input Impedance: 250 Ω
Input Low Pass Filter Response: 19 Hz
External Supply Voltage Range: 20 to 30 VDC
External Supply Voltage Ripple: 10%
Internal Power Consumption: 120 mA from the +5 VDC bus on the backplane; 65 mA from 24 VDC external user power supply (in addition to current loop currents)
