Manufacturer: Triconex
Product No.: 4211

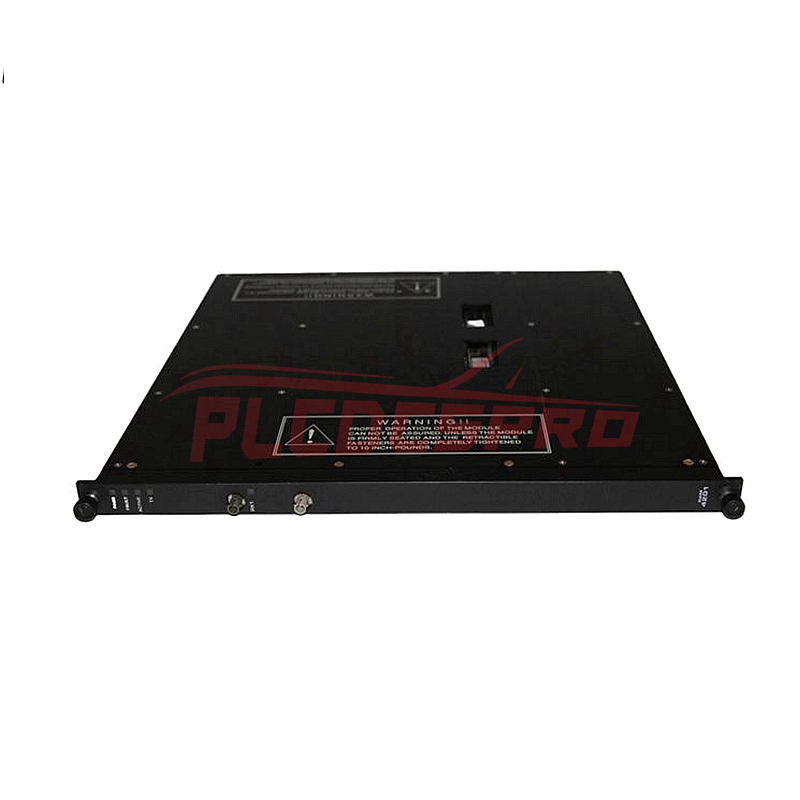

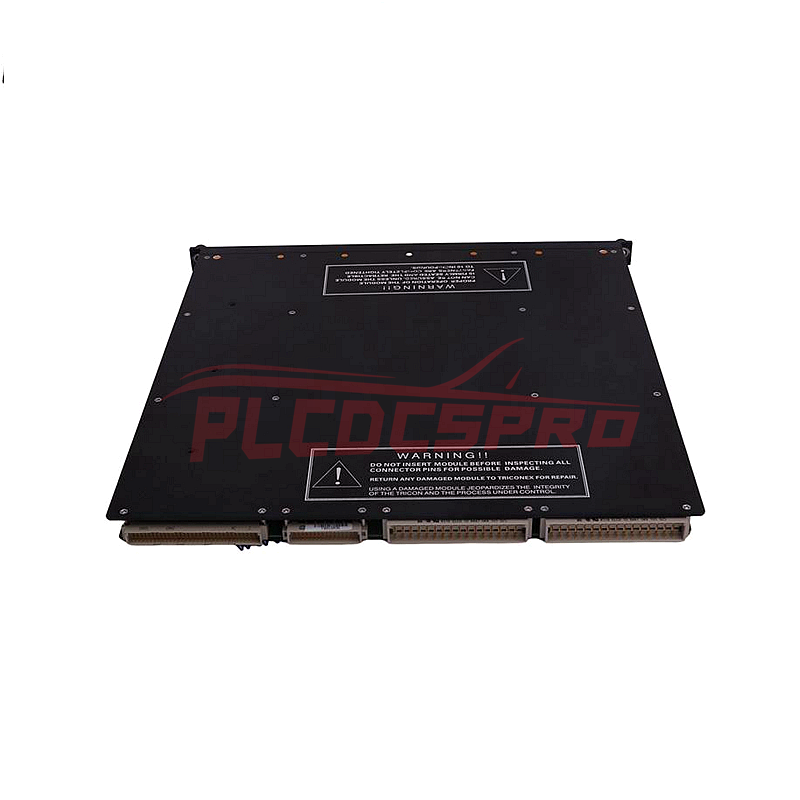

Triconex 4211 Remote Extender Module (RXM) and chassis allow I/O modules to be located several kilometers from the Main Chassis. RXM sets, consisting of three identical modules, serve as repeaters and extenders of the Tricon I/O bus and provide ground loop isolation. A primary RXM set supports three remote locations by connecting to three remote RXM sets housed in a remote chassis.
RXM sets are available for fiber-optic cables with a communication rate of 375 kilobits per second. These sets provide maximum immunity against electro-static and electromagnetic interference and support configurations with optical modems and fiber-optic point-to-point cabling. Remote sites can be located as far as 7.5 miles (12 kilometers) from the primary site.
The figure at right shows uni-directional cabling for three channels of a remote location. For each channel, one cable carries data transmitted from the primary RXM to the remote RXM, and the other cable carries data received by the primary RXM from the remote RXM. A pair of modules must be wired for each of the three channels, amounting to a total of six cables for each remote location.
RXM Model: 4211-3
RXM Chassis Location: Remote
Cable Type: Single-mode
Cable Length Limit: 7.5 miles (12 kilometers)
Connectors: 6
Remote Sites Supported: n/a
Modem Ports: Fiber Optic with ST connectors
Diagnostic Indicators: PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3
Description | Model No. |
---|---|
Chassis Assemblies | |
Main Chassis, High Density Configuration | 8110 |
Expansion Chassis, High Density Configuration | 8111 |
Remote Expansion Chassis, High Density Configuration | 8112 |
I/O Bus Expansion Cables (Set of 3) | 9000 |
I/O Bus Expansion Cables are available in custom lengths. | |
I/O-COMM Bus Expansion Cables (Set of 3) | 9001 |
Blank I/O Slot Panel | 8105 |
Power Modules | |
120 VAC/VDC – 175-Watt Power Module | 8310 |
24 VDC – 175-Watt Power Module | 8311 |
230 VAC – 175-Watt Power Module | 8312 |
Main Processor Modules | |
3008 Main Processor, 16 megabytes DRAM | 3008 |
Communication Hardware and Software | |
Tricon Communication Module (TCM) | 4351A, 4352A, 4353, 4354 |
Enhanced Intelligent Communication Module (EICM) | 4119, 4119A |
Safety Manager Module (SMM), Honeywell UCN Interface | 4409 |
Network Communication Module (NCM) | 4329, 4329G |
Advanced Communication Module (ACM) | 4609 |
Hiway Interface Module (HIM) | 4509 |
Triconex DDE Server Software | 7523-1 |
Network Accessory Kit (Ethernet thin cable, connectors and terminators) | 7600-3 |
Remote Extender Modules | |
Primary RXM, Multi-Mode Fiber Optics, Set of 3 Modules | 4200-3 |
Remote RXM, Multi-Mode Fiber Optics, Set of 3 Modules | 4201-3 |
Primary SRXM, Single-Mode Fiber Optics, Set of 3 Modules | 4210-3 |
Remote SRXM, Single-Mode Fiber Optics, Set of 3 Modules | 4211-3 |
TriStation Software | |
TriStation 1131 v4.1.x Software License with printed manuals | Contact Triconex |
TriStation 1131 v3.1.3 Software License with printed manuals | 7244-4 |
CEMPLE Language Editor, v3.1.3 | 7224-4 |
