Thermocouple input module | Allen Bradley 1769sc-IT6I
Sku:1769sc-IT6I
Country Of Origin: USA
Vendor: Allen Bradley
Type: Thermocouple input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: Rockwell / Allen-Bradley/ AB
Product No.: 1769sc-IT6I

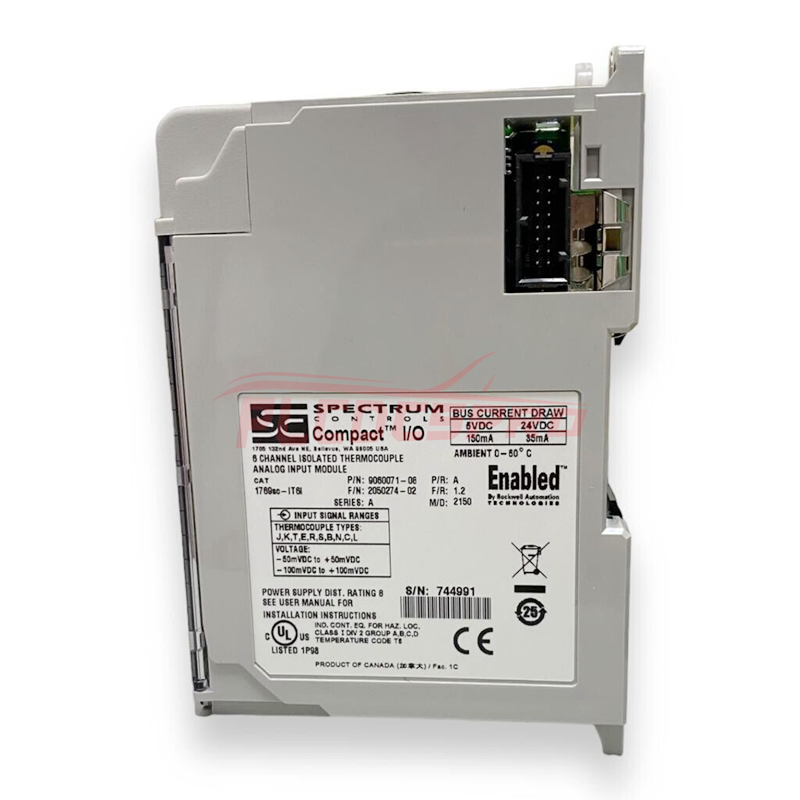

The 1769sc-IT6I module is designed for Allen-Bradley CompactLogix™ and MicroLogix™ 1500 PLCs. It features six analog thermocouple/mV inputs, each individually isolated for precise measurements. This Series A module ensures compatibility and reliability within Spectrum Controls' product range.
Technical Specifications：
Number of Inputs: 6 input channels plus 2 CJC sensors
Bus Current Draw, Max:
100 mA at 5V DC
40 mA at 24V DC
Heat Dissipation: 1.5 Total Watts
Converter Type: Delta Sigma
Input Filtering: Programmable notch filter with multiple frequencies
Rated Working Voltage: 30V AC/30V DC
Common Mode Voltage Range: ±10V DC max per channel
Open-Circuit Detection Time: 7 ms to 2.1 s
Non-Linearity: ±0.03%
Repeatability: ±0.03%
Overload at Input Terminals, Max: ±35V DC continuous
Power Supply Distance Rating: 8 modules away from the Compact I/O power supply
Input Group to Bus Isolation: 720V DC for 1 min
Channel-to-Channel Common Mode Separation, Max: ±10V DC
Input Channel Configuration: Via configuration software screen or user program
Module OK Status Indicator: On - module has power, has passed internal diagnostics, and is communicating over the bus; Off - any of the above is not true
Channel Diagnostics: Over- or under-range and open-circuit by bit reporting
Vibration, Operating: 10…500 Hz, 5 g, 0.030 in. peak-to-peak
Shock, Operating: 30 g, 11 ms panel-mounted (20 g, 11 ms DIN rail-mounted)
Radiated and Conducted Emissions: EN50081-2 Class A
Certifications:
Hazardous Environment Class I, Division 2, Hazardous Location, Groups A, B, C, D
c-UL Certified
UL 508 Listed
CE Compliant for all application directives
Calibrated Accuracy - 1769-IT6
Thermocouple J (-210…1200 °C (-346…2192 °F)): ±0.6 °C (±1.1 °F) @ 25 °C (77 °F); ±0.9 °C (±1.6 °F) @ 0…60 °C (32…140 °F)
Thermocouple N (-200…1300 °C (-328…2372 °F)): ±1 °C (±1.8 °F) @ 25 °C (77 °F); ±1.5 °C (±2.7 °F) @ 0…60 °C (32…140 °F)
Thermocouple T (-230…400 °C (-382…752 °F)): ±1 °C (±1.8 °F) @ 25 °C (77 °F); ±1.5 °C (±2.7 °F) @ 0…60 °C (32…140 °F)
Thermocouple K (-230…1370 °C (-382…2498 °F)): ±1 °C (±1.8 °F) @ 25 °C (77 °F); ±1.5 °C (±2.7 °F) @ 0…60 °C (32…140 °F)
Thermocouple E (-210…1000 °C (-346…1832 °F)): ±0.5 °C (±0.9 °F) @ 25 °C (77 °F); ±0.8 °C (±1.4 °F) @ 0…60 °C (32…140 °F)
Thermocouples S and R: ±1.7 °C (±3.1 °F) @ 25 °C (77 °F); ±2.6 °C (±4.7 °F) @ 0…60 °C (32…140 °F)
Thermocouple C: ±1.8 °C (±3.2 °F) @ 25 °C (77 °F); ±3.5 °C (±6.3 °F) @ 0…60 °C (32…140 °F)
Thermocouple B: ±3.0 °C (±5.4 °F) @ 25 °C (77 °F); ±4.5 °C (±8.1 °F) @ 0…60 °C (32…140 °F)
±50 mV: ±15 µV @ 25 °C (77 °F); ±25 µV @ 0…60 °C (32…140 °F)
±100 mV: ±20 µV @ 25 °C (77 °F); ±30 µV @ 0…60 °C (32…140 °F)
Repeatability - 1769-IT6
Repeatability for various input types, detailed for each type
Answer 1: PLC DCS Pro Ltd. collaborates with over 50 countries worldwide. As a leading supplier in China, we can provide significant discounts to customers based on market demand.
Question 2: What Is The Warranty Period?
Answer 2: We offer a standard one-year warranty for all new and original items.
Question 3: What Payment Methods Do We Accept?
Answer 3: We accept 100% T/T (Telegraphic Transfer) before shipping. For items with a lead time, a 30% deposit is required in advance, with the remaining 70% balance due before shipping. If you have an agent in China, please contact us for RMB transfer.
Question 4: What Shipping Methods Do We Use?
Answer 4: We primarily utilize carriers such as FedEx, DHL, UPS, BRE, etc. If you have an account with any of these carriers, you can arrange the shipping yourself. Additionally, we offer free shipping to China freight forwarders.
Question 5: What Is Our Delivery Time?
Answer 5: Typically, delivery takes around 1-3 days after receiving the advance payment. For items with a quoted lead time, delivery will occur as per the specified lead time.
Question 6: How Do We Package The Goods?

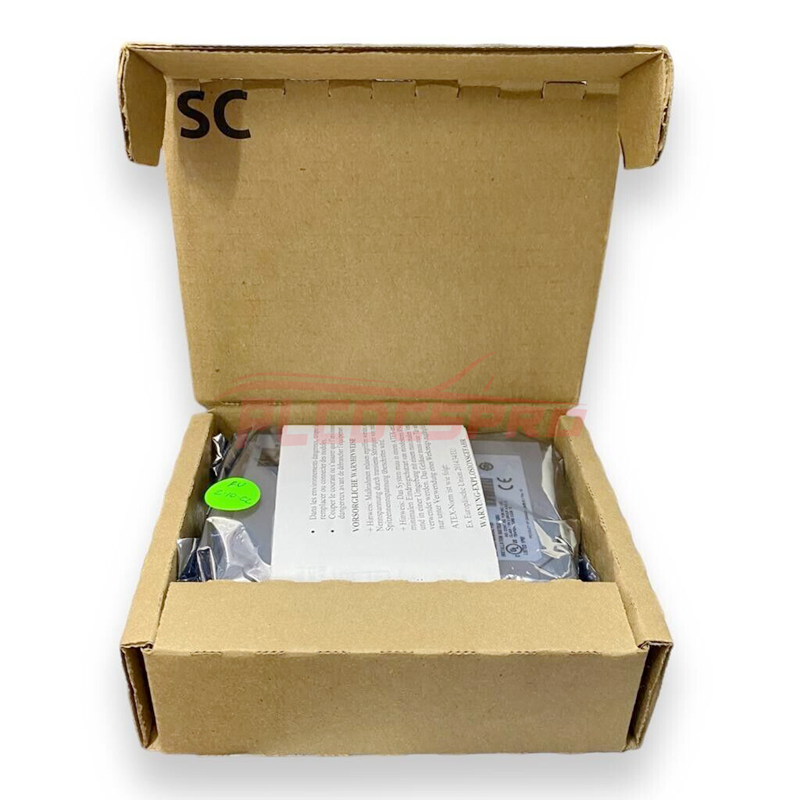

Answer 6: Our packaging process involves multiple layers of protection. Initially, the product is placed in its original box, sealed with a label. Then, we add a layer of bubble wrap to safeguard against collisions during transportation. Finally, all products are securely packed in sturdy boxes for further protection.
