1756-RM | Allen Bradley ControlLogix Redundancy Module 1756 RM
Sku:1756-RM
Country Of Origin: USA
Vendor: Allen Bradley
Type: Redundancy Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

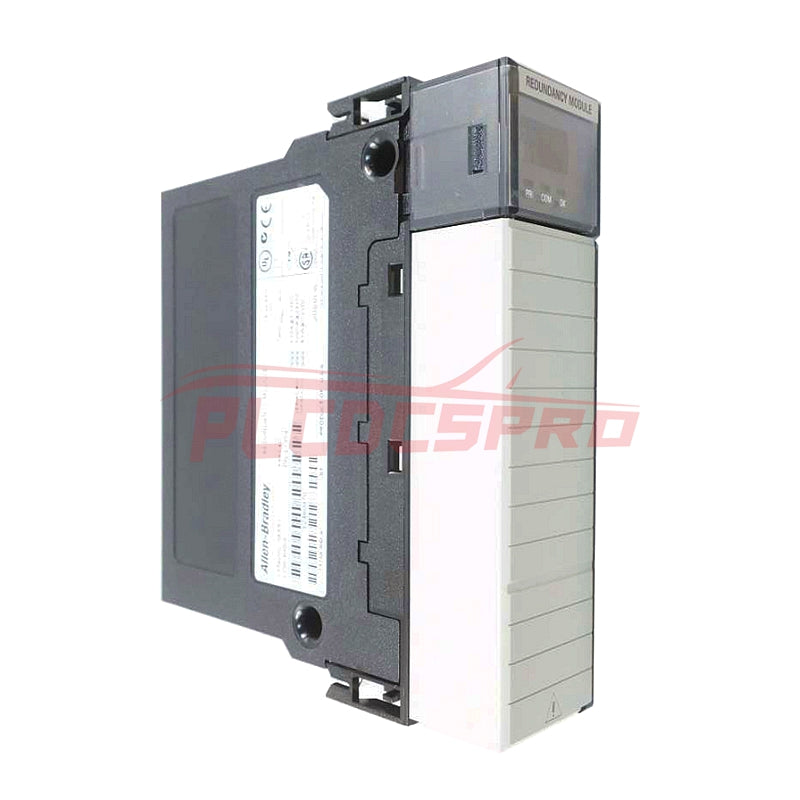

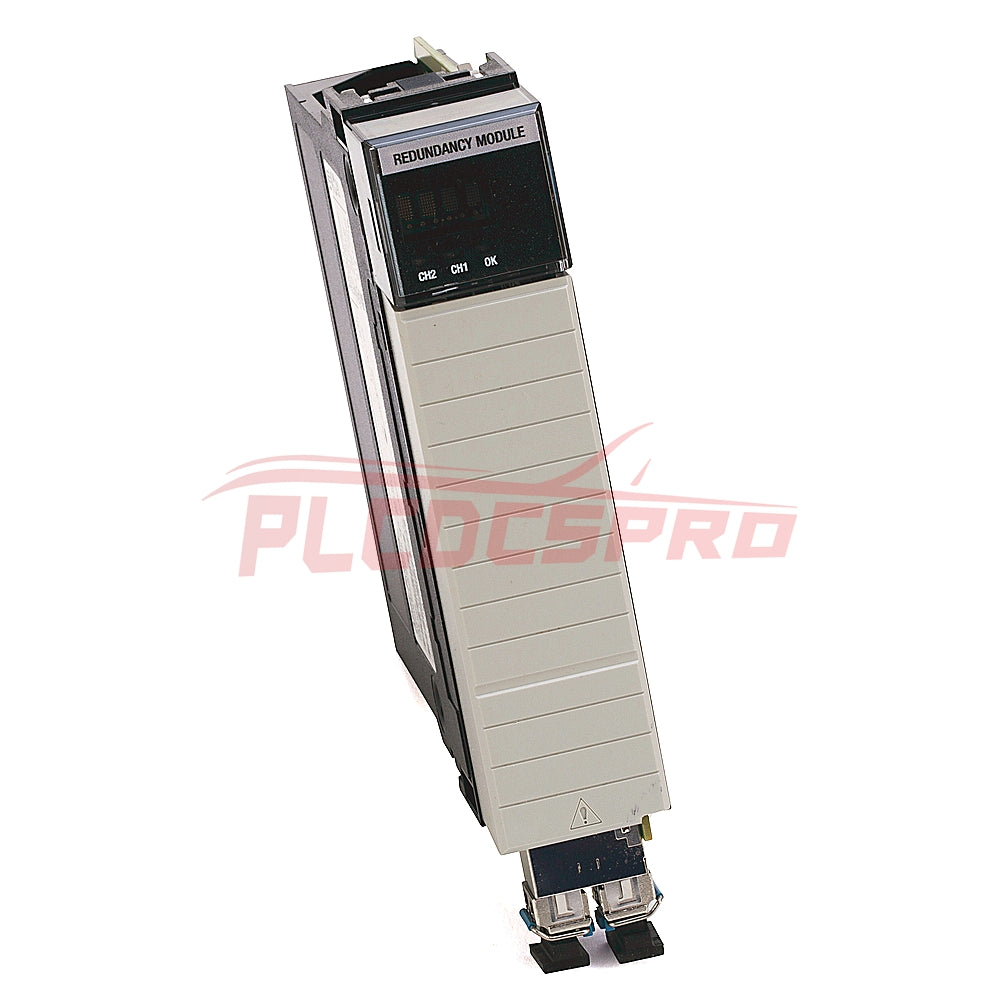

The Allen-Bradley 1756-RM is a redundancy module specifically designed for the ControlLogix platform. It enables redundancy for controllers by managing the connectivity between two identical controllers deployed in a rack with identical components and configurations. This module offers redundancy system monitoring and module health monitoring via an embedded LED display that includes indicators for PRI, COM, and OK. The 1756-RM is available in series A and B, and it is strongly recommended to install the same series to maximize the redundancy setup's functionality.
Power Consumption and Dissipation
Current Consumption:
4 mA at 1.2 volts DC
1.2 mA at 5.1 volts DC
120 mA at 24 volts DC
Power Dissipation: 9 watts
Thermal Dissipation: 31 BTU per hour
Physical and Environmental Specifications
Enclosure: Open
Temperature Code: T4
Operating Temperature Range: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Temperature Range: -40 to 85 degrees Celsius
Compatible Power Supplies: 1756-PA72/PA75/PB72/PB75 standard power supplies, as well as other 1756-xx redundant power supplies
Slot Requirement: Single-slot module that can be installed in any available chassis position
Redundancy Cable: Requires 1756-RMCx redundancy cable to synchronize the redundant controller pair's operation
Fiber Optic Connector: One LC fiber optic connector with single-mode operation
Network Speed: 100 Mbps when paired with the same series of redundancy modules
Configuration and Setup
The 1756-RM can be configured using the redundancy configuration utility for setting up redundancy and the Studio 5000 Logix Designer for configuring the module's global parameters. The redundant pair's configuration must match that of the companion chassis to ensure optimal performance.
Certifications
The 1756-RM module carries certifications from the following standards:
CE
CSA
Ex
C-Tick
cUL-us
Technical Specifications for 1756-RM
Manufacturer Name: Allen Bradley
Product Type: Redundancy module
Series: ControlLogix
Current Draws: 4 milliamps at 1.2 VDC, 1.2 milliamps at 5.1 VDC, and 120 milliamps at 24 VDC
Power Dissipation: 9 watts
Thermal Dissipation: 31 BTU per hour
Certification: CE, CSA, Ex, C-Tick, and cUL-us
IEC Temperature Code: T4
Storage Temperature: (-40 to 85) degrees Celsius
Operating Temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
