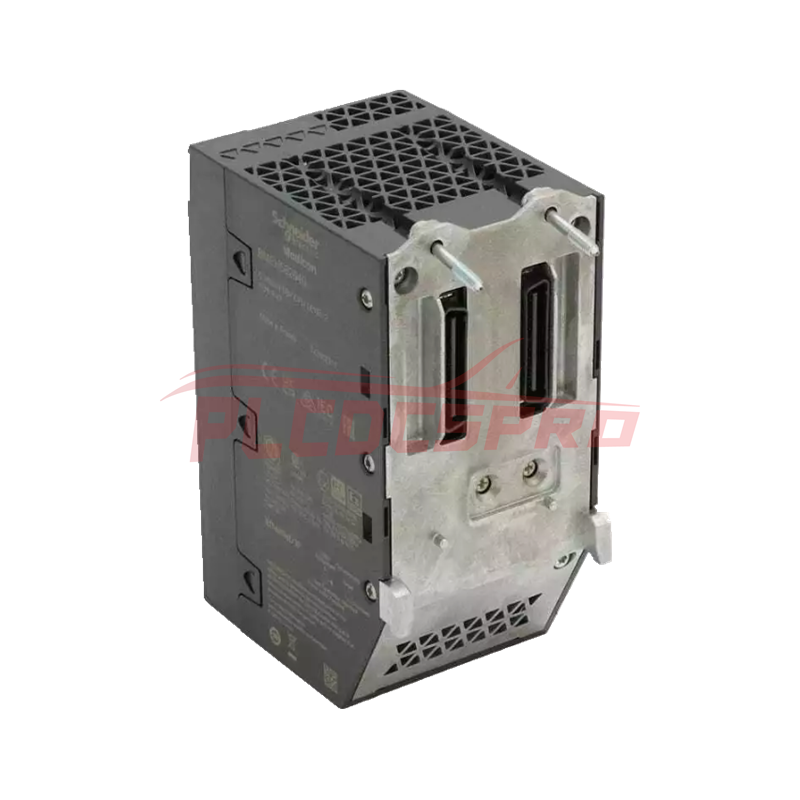

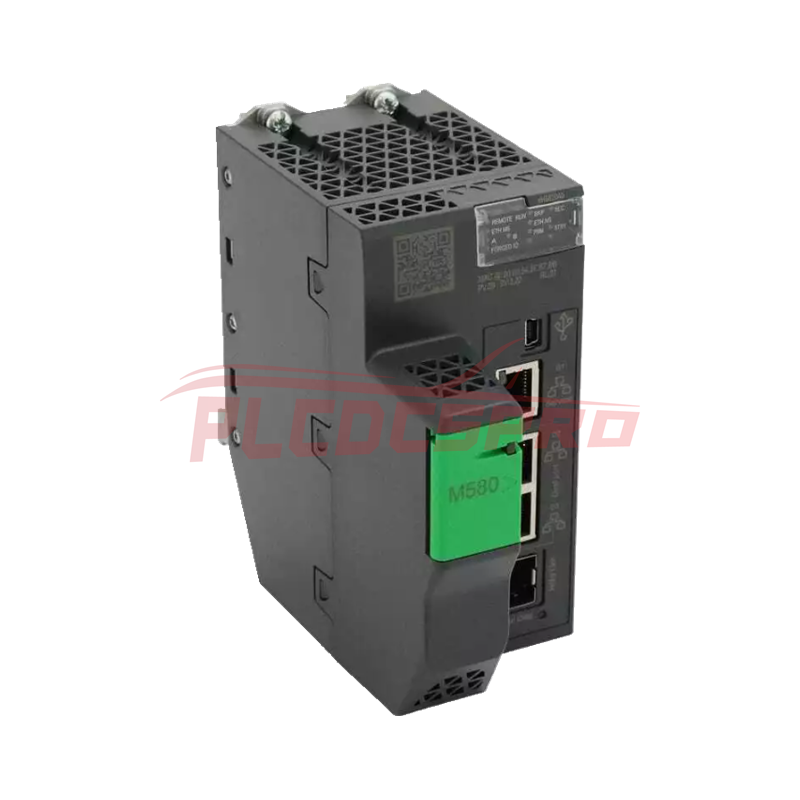

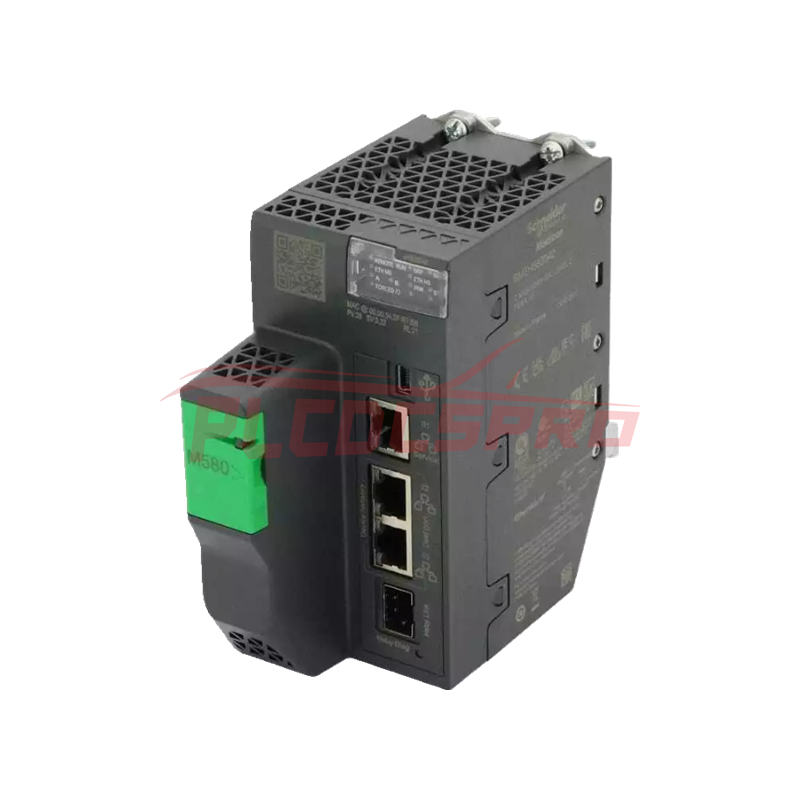

This product is part of the Modicon M580 range, offering Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. The Schneider BMEH582040 redundant processor module is designed for maximum reliability, supporting a single rack configuration. With a current consumption of 270mA at 24V DC, it provides robust performance suitable for medium to large process applications.
The module supports various communication protocols and services, including Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B, and Ethernet HSBY port. It offers advanced features such as DIO and RIO scanning, expandable flash memory of 4 GB for data storage, and integrated RAM of 8 MB for program execution and 768 kB for data.
Specifications:
Main:
Range of Product: Modicon M580
Product or Component Type: Redundant processor module
Number of Racks: 1
Complementary:
Application Specific I/O:
Counter
Accurate time stamping
Serial link
HART
Motion control
SSI encoder
Checks
Process control
Control channels
Programmable loops
Integrated Connection Type:
1 Ethernet TCP/IP service port
2 Ethernet TCP/IP device network
USB type mini B
1 Ethernet HSBY port
Number of Remote I/O Stations: 8 - 2 X80 remote drop
Number of Distributed Equipment: 64
Communication Module Processor Capacity:
2 Ethernet communication module
8 AS-Interface module
Communication Service:
DIO scanner
RIO scanner
Memory Description:
Expandable flash, 4 GB data storage
Integrated RAM, 10 kB system memory
Integrated RAM, 8 MB program
Integrated RAM, 768 kB data
Application Structure:
1 periodic fast task
1 cyclic/periodic master task
Cybersecurity:
Achilles certified
DoS prevention
IPSec
SNMP logging
Syslog protocol support
Transport layer security
Audit trail
Embedded firewall
Firmware signature
Password protection
Port hardening
Secure communication (HTTPS)
Security log
Number of Instructions per ms:
7.5 Kinst/ms (65% Boolean + 35% fixed arithmetic)
10 Kinst/ms (100% Boolean)
MTBF Reliability: 650000 H
Marking: CE
Environment:
Vibration Resistance: 3 gn
Shock Resistance: 30 gn
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Operating Altitude: 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Relative Humidity: 5…95% 131 °F (55 °C) without condensation
IP Degree of Protection: IP20
Directives:
2014/35/EU - Low Voltage Directive
2014/30/EU - Electromagnetic Compatibility
Supply: Internal power supply via rack
Status LED:
Processor running (RUN): 1 LED (Green)
Processor or system fault (ERR): 1 LED (Red)
I/O module fault (I/O): 1 LED (Red)
Download in progress (DL): 1 LED (Green)
Memory card or CPU flash fault (BACKUP): 1 LED (Red)
Ethernet port configuration status (ETH MS): 1 LED (Green/Red)
Ethernet network status (Eth NS): 1 LED (Green/Red)
Peer processor running (REMOTE RUN): 1 LED (Green)
Processor ID set to A (A): 1 LED (Green)
Processor ID set to B (B): 1 LED (Green)
Processor acting as Primary (PRIM): 1 LED (Green)
Processor acting as Standby (STBY): 1 LED (Green)
I/O values overridden by user (FORCED IO): 1 LED (Green)
Hot standby link status (Hsby Diag): 1 LED (Green)
