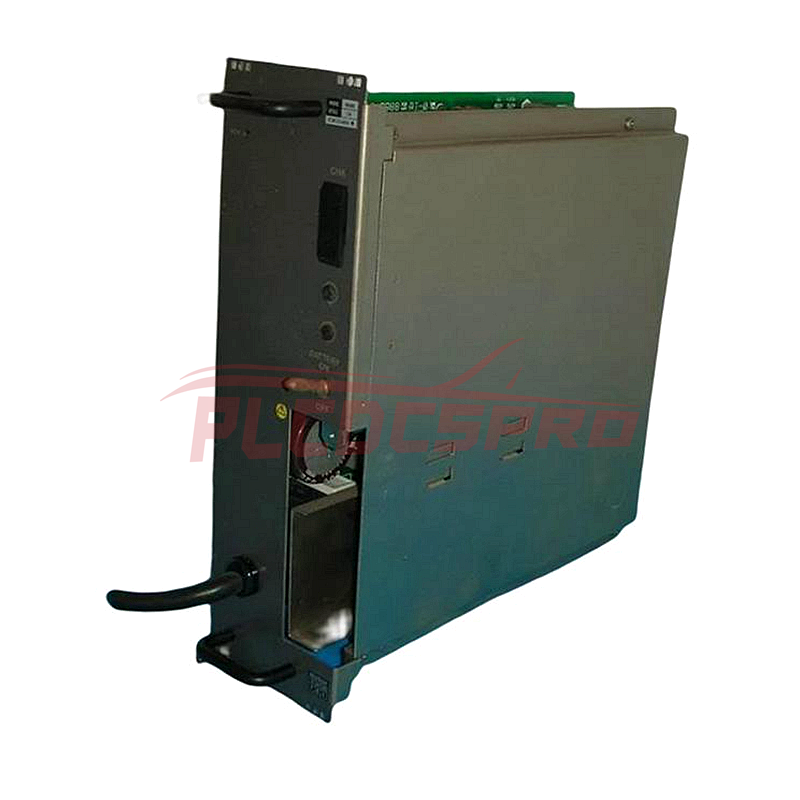

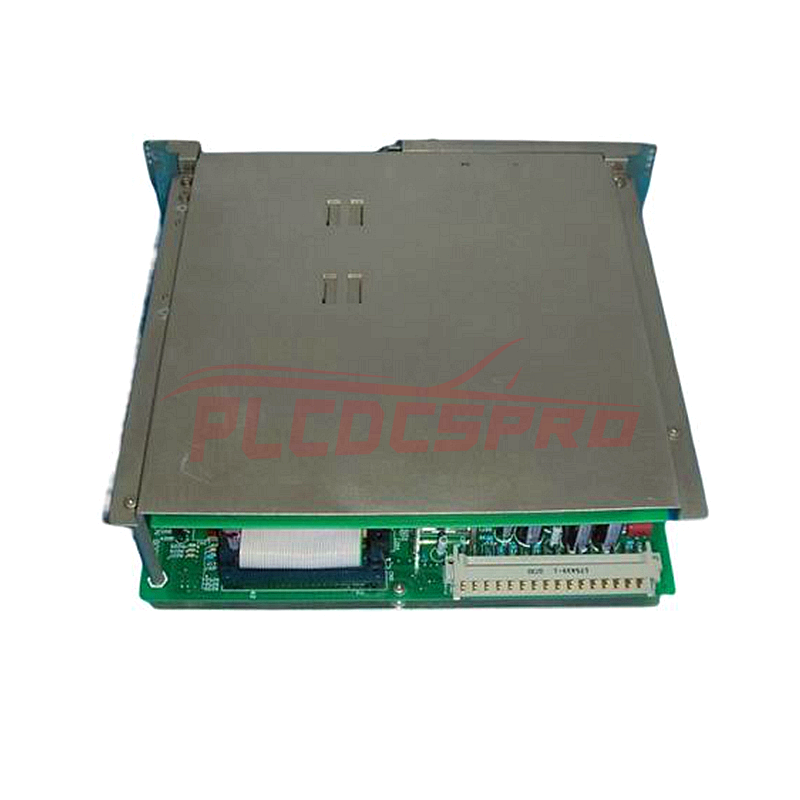

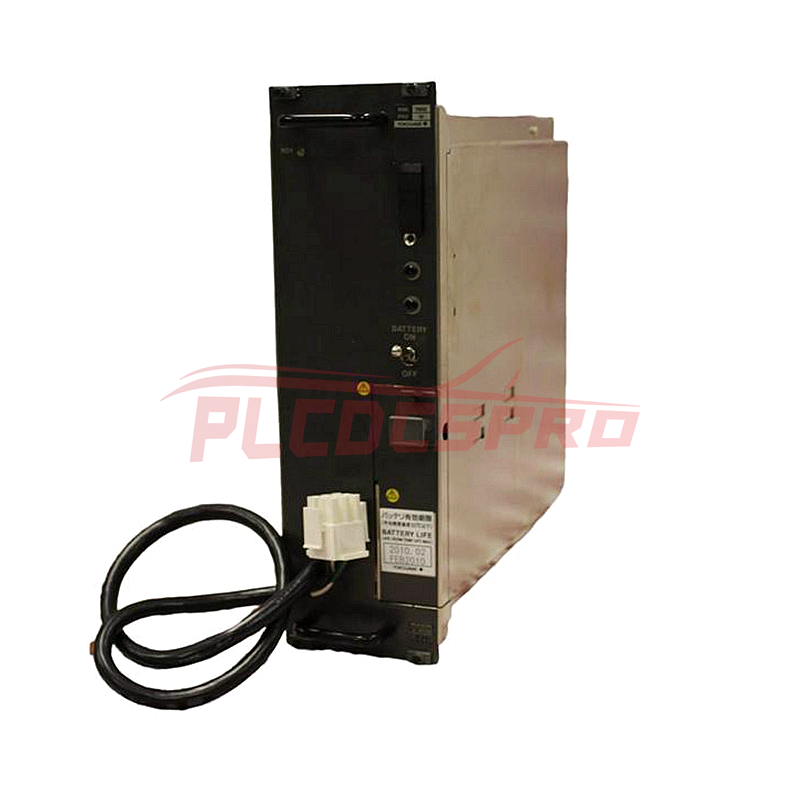

The Yokogawa PW302 is a switching power supply module specifically designed for use in Yokogawa FA-M3 control systems. It serves to deliver regulated and stable DC power output to various electronic devices within the control system. Known for its reliability, efficiency, and compact size, the PW302 ensures dependable performance in industrial environments.
Specifications
Feature
Specification
Input voltage range
100 to 120 VAC or 220 to 240 VAC
Input voltage tolerance
±10%
Input current
2.6 A at 100 VAC, 1.25 A at 220 VAC
Power consumption
220 VA at 100 VAC, 220 VA at 220 VAC
Output voltage
+5.1 VDC and +12 VDC
Output voltage accuracy
±5%
Output ripple and noise
50 mVp-p (5.1 VDC), 100 mVp-p (12 VDC)
Output current
20 A for +5.1 VDC, 3 A for +12 VDC
Efficiency
Up to 86%
Operating temperature range
0 to 50°C (41 to 122°F)
Cooling method
Natural convection
Protection features
Overvoltage protection, overcurrent protection, short circuit protection
MTBF
100,000 hours
Dimensions
102 mm x 279 mm x 254 mm (4.02 in x 11.0 in x 10.0 in)
