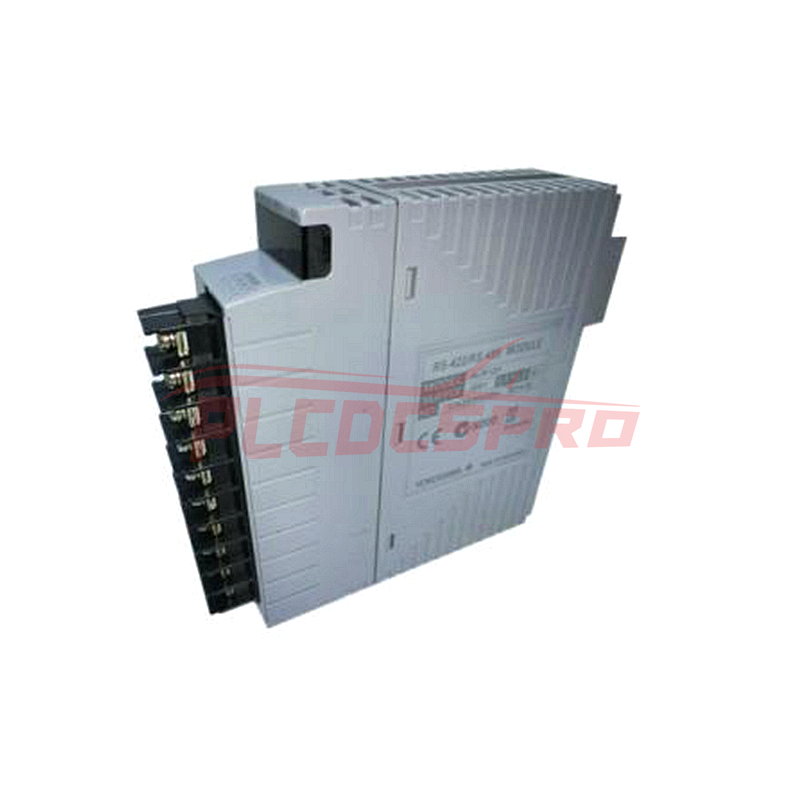

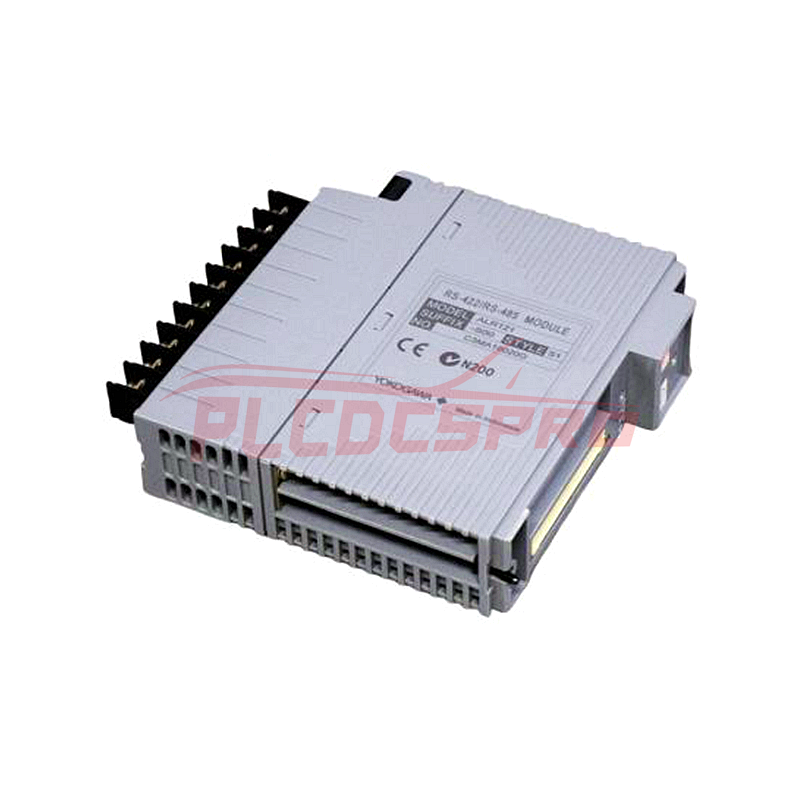

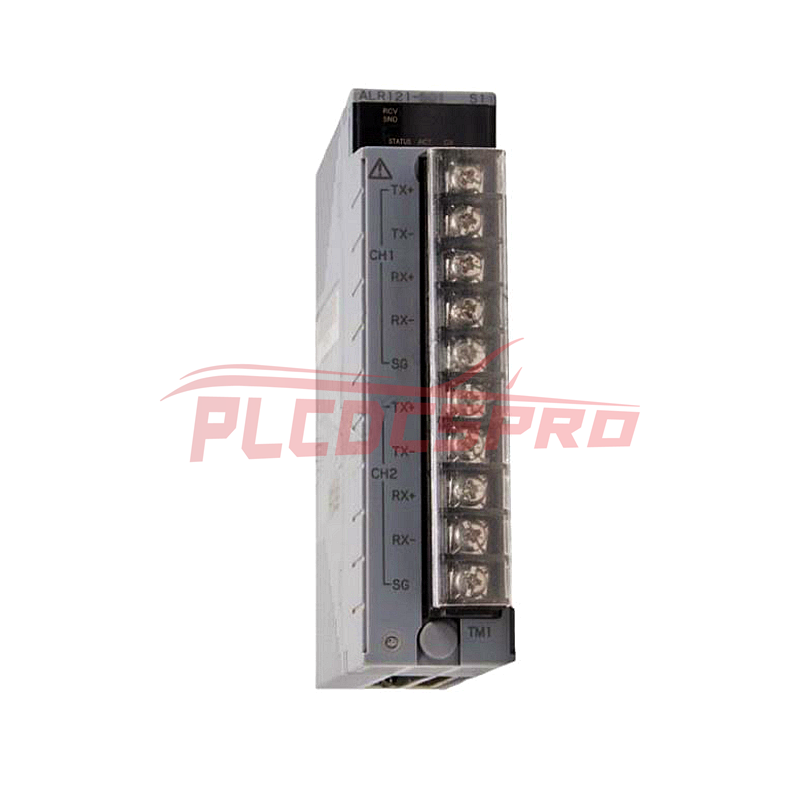

Yokogawa | ALR121-SE1 | RS-422/RS-485 Serial Communication Module
Sku:ALR121-SE1
Country Of Origin: Japan
Vendor: Yokogawa
Type: Communication Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Product Description:
The Yokogawa ALR121-SE1 is a serial communication module designed to facilitate communication between a field control station (FCS) and subsystems like FA-M3. It is compatible with Yokogawa CENTUM CS and CENTUM VP distributed control systems (DCS).
Features
Supports RS-422 and RS-485 communication
Two independent communication ports
Transmission speeds up to 38400 bps
Supports ASCII and binary data formats
Half-duplex communication
Start-stop synchronization
Selectable parity
1 ms lag time after data transmission
Maximum transmission distance of 1200 m (total extended length)
Specifications
Feature
Specification
Interface
RS-422/RS-485
Connection method
Point-to-point (RS-422), multipoint (RS-485)
Communication function
Half-duplex
Synchronization method
Start-stop synchronization
Transmission speed
1200/2400/4800/9600/19200/38400 bps
Transmission code
ASCII/binary
Character length
7/8 bits
Stop bit length
1/2 bits
Parity check
None/even/odd
Lag time after data transmission
1 ms
Transmission distance
Maximum 15 m (RS-422), maximum 1200 m (total extended length) (RS-485)
Installation method
Mounted on ANB10, ANR10, AFF50, AFV10, AFV30, or AFV40
I/O wiring
AKB131, AKB132, AKB133, AKB134 cables, etc. Cable with 3-pair shield, AKB161 or AKB162
