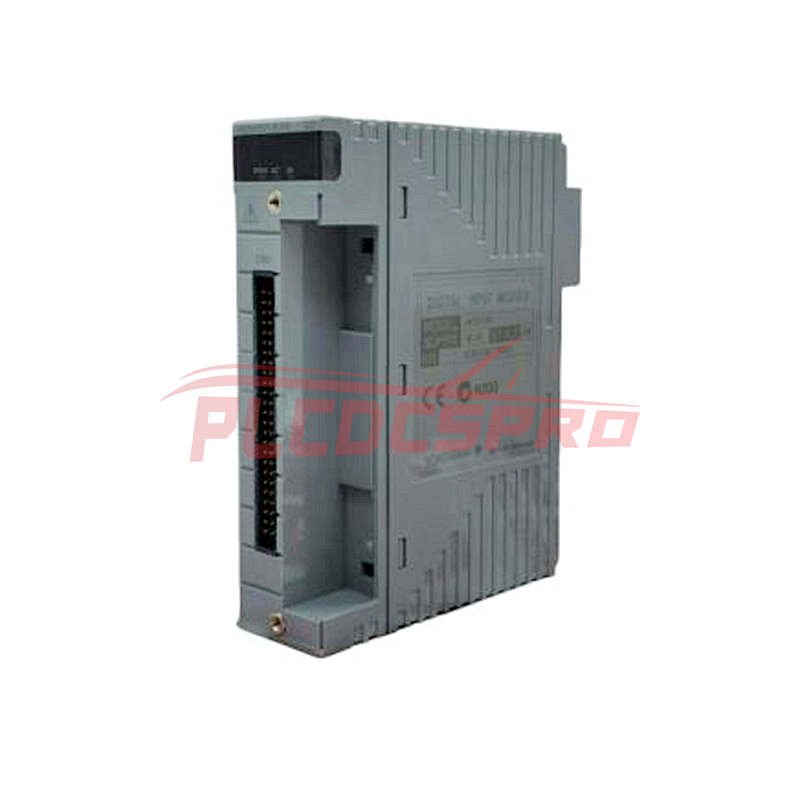

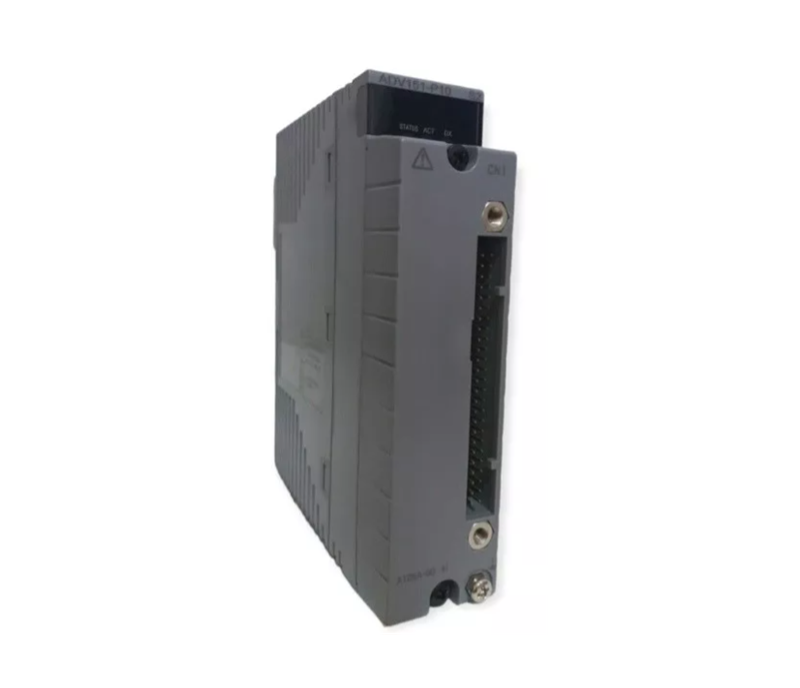

Digital Input Module (32-channel, 24 V DC, Isolated) Suffix Codes:
E: With SOE capture
5: Without status display; with no explosion protection
0: Basic type
Technical Specifications
Number of Input Channels: 32
Rated Input Voltage: 24 V DC (sink/source)
Input ON Voltage: 18 to 26.4 V DC
Input OFF Voltage: 5.0 V DC or less
Input Current (at rated input voltage): 4.1 mA ± 20% per channel
Maximum Allowable Input Voltage: 30.0 V DC
Withstanding Voltage:
Between input signal and system: 2 kV AC for 1 minute
Between commons: 500 V AC for 1 minute, common every 16-channel
Functions:
Status Input: Function for detecting ON/OFF status
Pushbutton Input: Function for counting the pushbutton edges
SOE Input: Function for capturing the SOE data
Input Response Time: 8 ms or less (for status input)
Minimum ON Detection Time: 20 ms (for pushbutton input)
Maximum ON/OFF Cycle: 25 Hz (for pushbutton input)
Maximum Current Consumption: 500 mA (5 V DC)
Weight: Approx. 0.30 kg
External Connections
Connection Types:
Pressure clamp terminal
Dedicated cable (AKB331)
MIL connector cable
Additional Information
Operating Conditions:
Temperature Range: -20 to 70 °C
Humidity: 5-95% without condensation
Installation Notes:
The ADV151-E cannot be installed in the ER Bus Node Unit.
All voltage input signals (24 V DC) must be connected with the same polarity.
The withstanding voltage for using a dedicated cable is 500 V AC (between input signal and system). The withstanding voltage for using MIL connector cable depends on the electrical specifications of its cable.
Option Codes
/D5A00: With KS Cable Interface Adapter for 32-channel digital (Model: ATD5A-00)
/B5S00: With Pressure Clamp Terminal Block for Digital Input (Model: ATB5S-00)
/B5S10: With Pressure Clamp Terminal Block for Digital Input (surge absorber) (Model: ATB5S-10)
/B5D00: With Dual Pressure Clamp Terminal Block for Digital Input (Model: ATB5D-00)
/B5D10: With Dual Pressure Clamp Terminal Block for Digital Input (surge absorber) (Model: ATB5D-10)
/CCC01: With Connector Cover for MIL Cable (Model: ACCC01)
