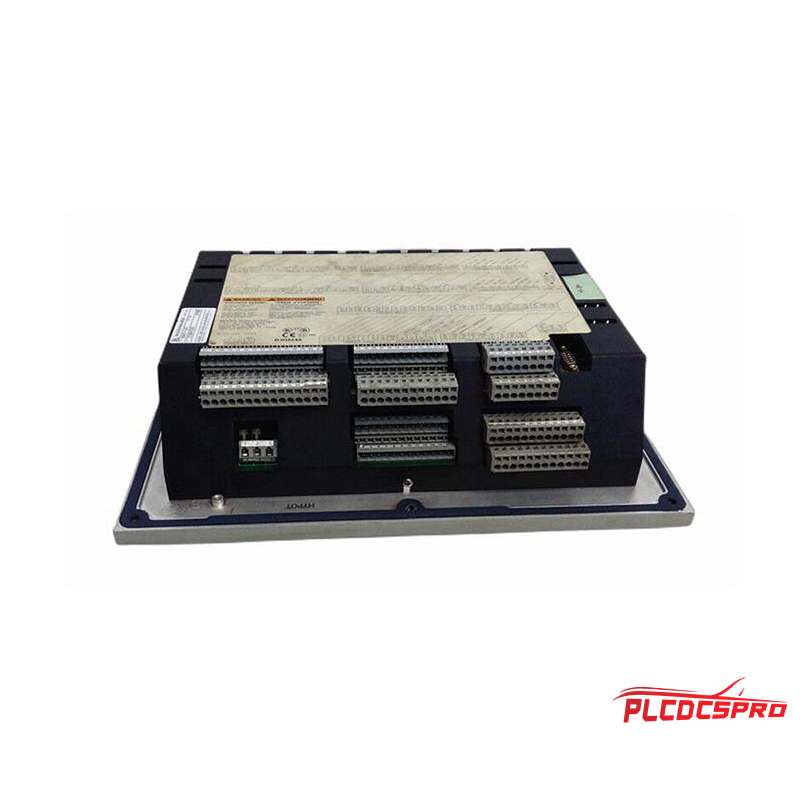

Woodward 9907-163 Governor Unit
Manufacturer: Woodward Inc.
Dimensions: W14in. x H11in. x D4in.
Display Type: 24 character LED
Enclosure Type: NEMA Type 4X
Features: Emergency Stop Button
Input Voltage: 24VDC
Inputs: 6 Programmable Current Inputs, 16 Discrete Contact Inputs
Keypad/Display: 30 Keys
Operating Temperature: Passes Lloyd’s type ENV3 Dry Heat test
Slot Type: RS232C/RS422 serial port
Software Version: OpView™ and 505View
Storage Temperature: For longest life, store near room temperature and limit the thermal cycle range.
Weight: 9lb 11oz
The Woodward 9907-163 is part of the 505/505E series of digital control units developed by Woodward Inc., America's oldest and leading manufacturing company. These units are designed to operate steam turbines by controlling one or both split stage actuators to drive the inlet steam valves.
Designated as a legacy AC 505, DC 505 component, it is rated for Class 1 Div 2 locations. The 9907-163 model serves as a governor unit, capable of processing all turbine operational parameters. Equipped with an internal microprocessor module, it can control turbines, turbogenerators, or expander modules.
Featuring printed circuit boards, protected by the unit's frame, optional NEMA 4X graded protective frame provides additional protection. Although, it slightly reduces the acceptable ambient temperature range from 65°C to 55°C.
To configure the unit and turbine specifications, operators input changes via the integrated control panel, displaying two lines of text, each with 24 characters.
