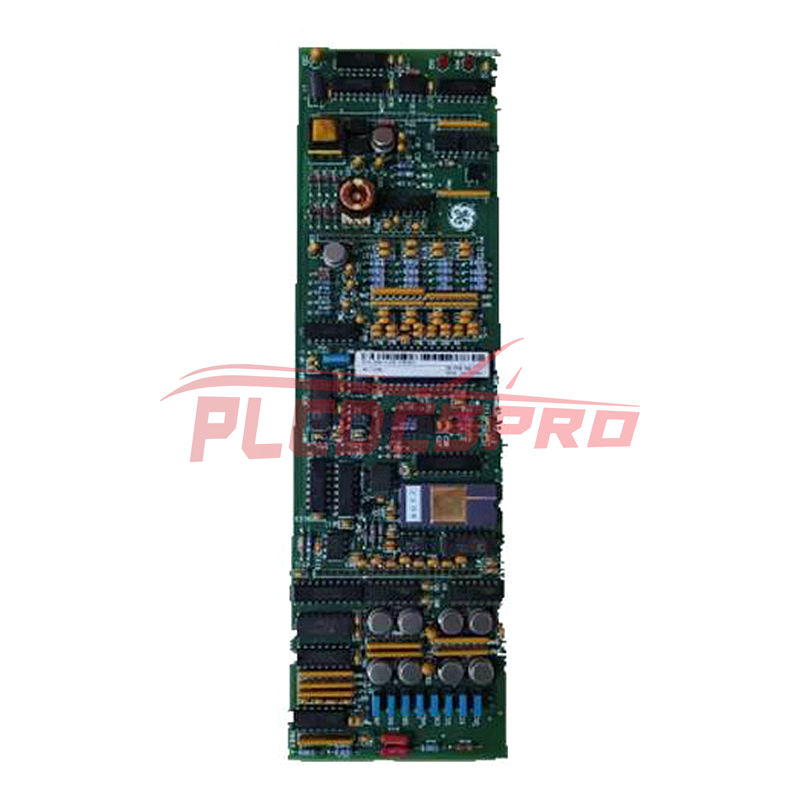

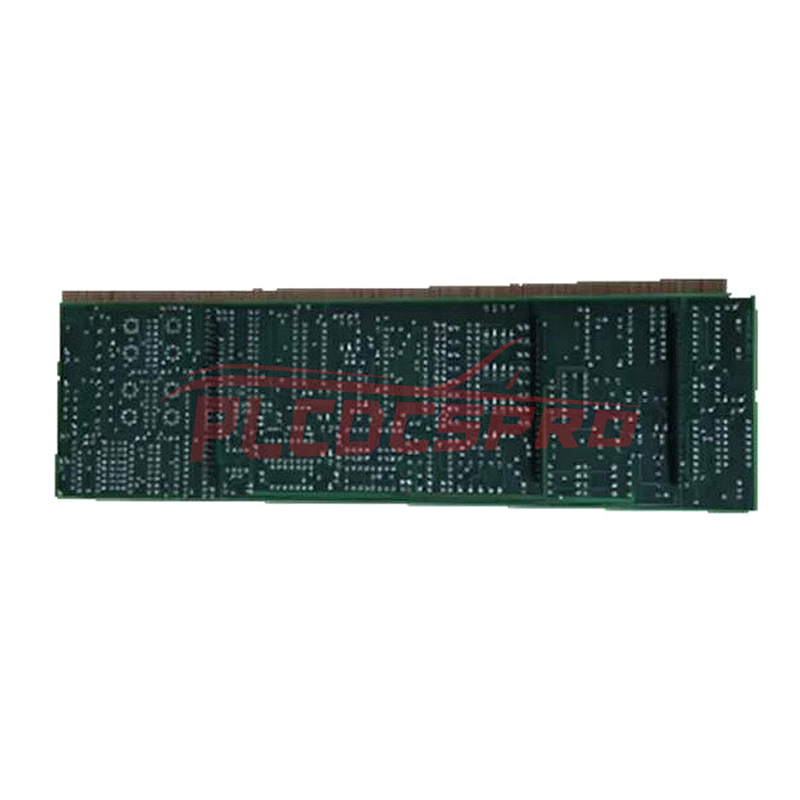

The GE WESDAC D20C is a versatile I/O module used in industrial control systems, integrating two detachable components: the WESTERM D20 C and the WESDAC D20 C. The WESTERM D20 C handles field wiring termination, while the WESDAC D20 C processes data and communicates with the main D20 processor.
Features
Channel Configurations:
16 digital inputs
8 momentary or dual-function control outputs
Optional 16 analog inputs
Optional 8 analog inputs and 8 analog outputs
Processing Speed: Utilizes a faster clock for enhanced processing power.
Relays and Communication:
Supports interposing relays via the WESTERM D20KI.
Includes a Local/Remote switch for relay coil power management and module status indication.
Connectivity:
Two DB9 connectors for daisy-chaining the D.20 Link and providing power.
A DB9 connector for the WESMAINT D20 maintenance port.
Specifications
Processor: 8-bit Freescale 68HC11 MPU
Clock Speed: 2 MHz
Memory:
24 KB EPROM
32 KB static RAM
512 bytes EEPROM
Analog Inputs
Type: Plug-in daughter board for 16 bipolar, differential inputs
Accuracy: ±0.05% (voltage), ±0.1% (current)
Resolution: 14 bits plus sign
Conversion Rate:
275 ms for 16 inputs @ 60 Hz
328 ms for 16 inputs @ 50 Hz
Input Impedance: 44 MΩ ±5% (VDC)
Common Mode Rejection: 95 dB (60 Hz)
Normal Mode Rejection: 60 dB (60 Hz)
Over Voltage Rating: ±35 VDC (normal mode)
Analog Inputs/Outputs (Add-on Options)
Physical: Plug-in daughter board for 8 unipolar or bipolar outputs, and 8 bipolar inputs
Output Ranges:
Voltage: 0-5 V, 0-10 V, ±5 V, ±10 V
Current: 0-1 mA, 0-5 mA, 0-10 mA, 0-20 mA
Accuracy: 0.1% (voltage), 0.15% (current)
Resolution: 12 bits plus sign
Maximum Output: 5 kΩ @ 5 V out
Status Inputs
Type: 16 optically isolated inputs in two groups of 8
Contact Wetting: ±12 V, ±24 V, ±48 V, or ±125 VDC
Current Burden: ±3 to ±6 mA per input
Scan Rate: 1.0 ms
Debounce: 1 to 255 ms
SOE Time Resolution: 1.0 ms
Overload Rating: 500 VDC (common mode to GND)
Control Outputs
Type: 8 relays plus two Master Trip/Close relays
Output Configurations:
Various pairs of trip/close and relay outputs
Contact Duration: Programmable from 1 ms to 215 s
Contact Rating: 60 W max, 3 A max, 220 VDC max
Coil Status Check: Every 500 µs
Isolation Ratings:
Component Isolation: 1500 Vrms
Dielectric: 1000 VDC
General Specifications
D.20 Link Ports: 2
Maintenance Port: 9600 baud, RS-232
Power Requirements: 20-60 VDC, 5 W typical; 11 W full load
