Use with I/O: AI843, AO845, AO845A, DI840, DI880, DO840, DO880 and DP840
Process Connections: 56 up to 16 I/O channels (2 terminals per channel)
4 Process power
20 Process power (0 V)
Single/Redundant I/O: Redundant
Detailed Data
Maximum Current per I/O Channel: 3 A
Maximum Current Process Connection: 10 A
Acceptable Wire Sizes:
Solid: 0.2 - 4 mm²
Stranded: 0.2 - 2.5 mm², 24 - 12 AWG
Recommended Torque: 0.5 - 0.6 Nm
Stripping Length: 7 mm
Dielectric Test Voltage: 500 V a.c.
Dimensions
Width: 131 mm (5.16”) including connector, 124 mm (4.88”) edge to edge installed
Depth: 64 mm (2.52”) including terminals
Height: 186.5 mm (7.34”) including locking device
Weight: 0.6 kg (1.3 lbs.)

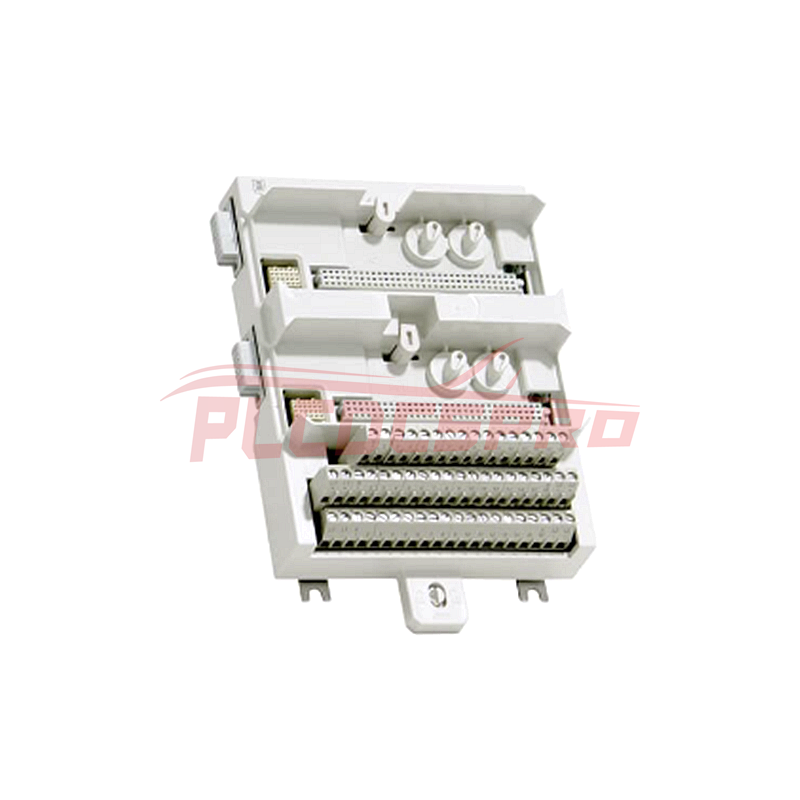

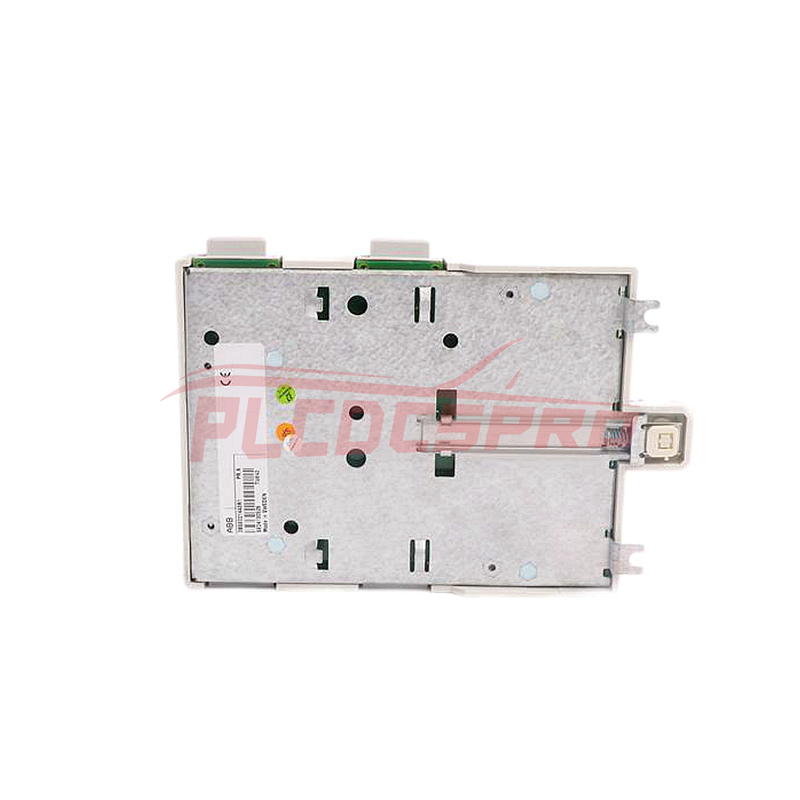

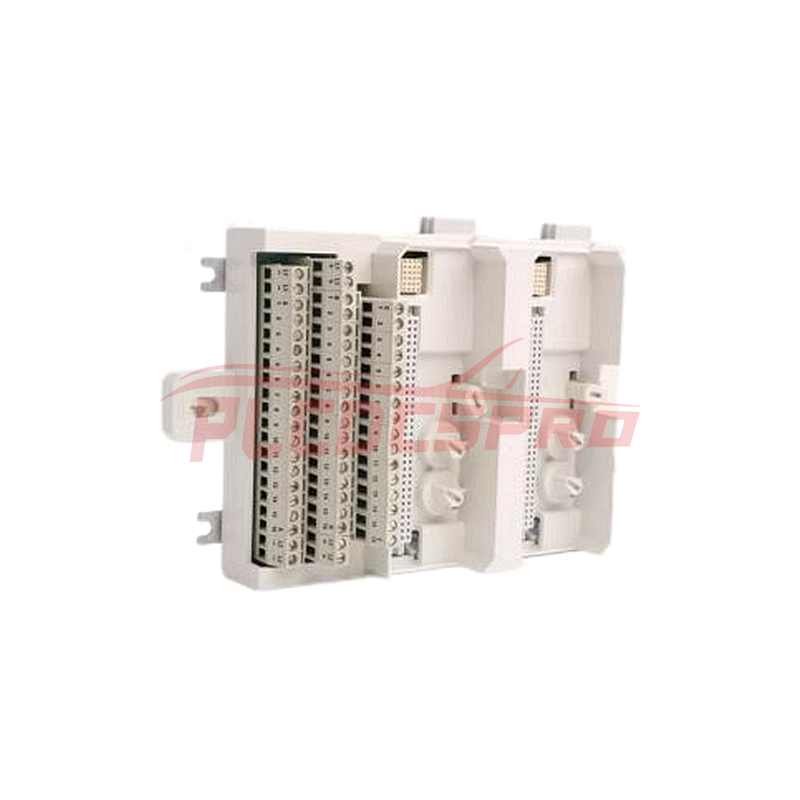

Introduction to TU843 (3BSE021443R1)
The TU843 MTU is designed for redundant configurations and supports up to 16 I/O channels along with 2+2 process voltage connections. Each channel includes two I/O connections and one ZP connection, with a maximum rated voltage of 50 V and maximum rated current of 3 A per channel.
Features and Benefits
Complete installation of I/O modules using 3-wire connections and field power distribution.
Support for up to 16 channels of field signals and process power connections.
Connections to two ModuleBuses and I/O modules.
Mechanical keying prevents insertion of the wrong I/O module.
Latching device to DIN rail for grounding.
DIN rail mounting ensures secure installation in industrial environments.
