Triconex 3625 Digital Output Module | Invensys Main Processor
Sku:3625
Country Of Origin: USA
Vendor: Invensys System
Type: Digital Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: Triconex
Product No.: 3625
Product Specifications

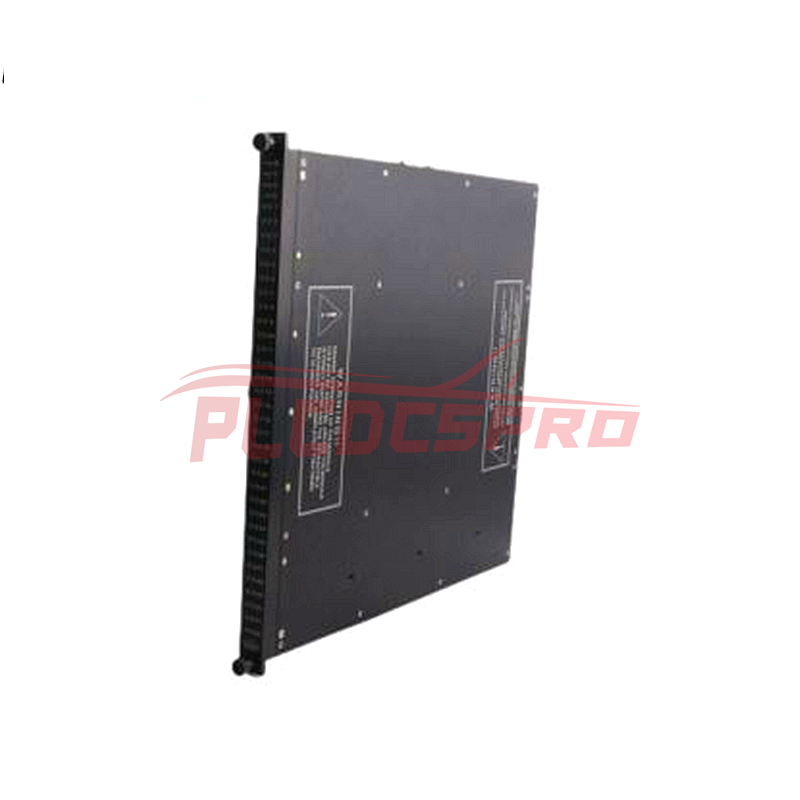

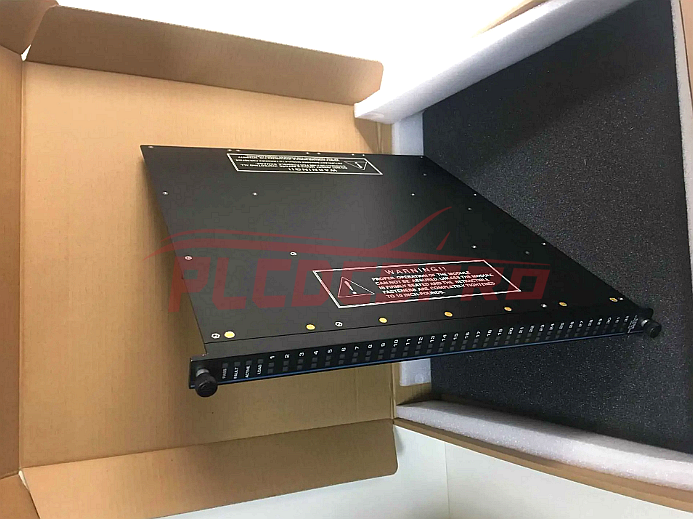

Triconex 3625 32-Point Supervised/Non-Supervised Digital Output Modules
Designed for the most critical control programs, Supervised Digital Output (SDO) modules meet the needs of systems whose outputs remain in a single state for extended periods of time (in some applications, for years). An SDO module receives output signals from the Main Processors on each of three channels. Each set of three signals is then voted upon by a fully fault-tolerant quadruplicated output switch whose elements are power transistors, so that one voted output signal is passed to the field termination.
Each SDO module has voltage and current loopback circuitry coupled with sophisticated online diagnostics that verify the operation of each output switch, the field circuit, and the presence of a load. This design provides complete fault coverage without the need to influence the output signal.
The modules are called “supervised” because fault coverage is extended to include potential field problems. In other words, the field circuit is supervised by the SDO module so that the following field faults can be detected:
Loss of power or blown fuse
Open or missing load
A field short resulting in the load being energized in error
A shorted load in the de-energized state
Failure to detect field voltage on any output point energizes the power alarm indicator. Failure to detect the presence of a load energizes the load alarm indicator.
All SDO modules support hot-spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane.
Product Specifications
Model Number: 3625
Nominal Voltage: 24 VDC
Type: TMR, Supervised/Non-Supervised DO
Output Signals: 32, commoned
Voltage Range: 16-32 VDC
Maximum Voltage: 36 VDC
Voltage Drop: < 2.8 VDC @ 1.7A, typical
Power Module Load: < 13 watts
Current Ratings, Maximum:
1.7A per point
7A surge per 10 ms
Minimum Required Load: 10 mA
Load Leakage: 4 mA maximum
Fuses (on Field Termination): n/a—self-protecting
Point Isolation: 1,500 VDC
Diagnostic Indicators:
On or Off State: 1 per point
Module Status: PASS, FAULT, LOAD, ACTIVE
Field Alarm: LOAD (1 per point)
Color Code: Dark blue
Tricon I/O Modules
Type
Voltage Description
Model No.
Points
Digital Input Modules
115 VAC/VDC Opto-Isolated, Non-Commoned
3501E/3501T
32
Digital Input Modules
48 VAC/VDC Commoned in Groups of 8, Self-Test
3502E
32
Digital Input Modules
24 VAC/VDC Commoned in Groups of 8, Self-Test
3503E
32
Digital Input Modules
24/48 VDC High-Density, DC Coupled
3504E
64
Digital Input Modules
24 VDC Low Threshold with Self-test, Commoned
3505E
32
Digital Input Modules
24 VDC Single, Opto-Isolated, Commoned
3564
64
Digital Input Modules
Pulse Input Differential, AC Coupled
3511
8
Digital Input Modules
Pulse Totalizer Opto-isolated, Non-commoned
3515
32
Digital Output Modules
115 VAC Opto-Isolated, Non-commoned
3601E/3601T
16
Digital Output Modules
120 VDC Opto-Isolated, Non-commoned
3603B, 3603E/3603T
16
Digital Output Modules
24 VDC Opto-Isolated, Non-commoned
3604E
16
Digital Output Modules
48 VDC Opto-Isolated, Non-commoned
3607E
16
Digital Output Modules
115 VAC Galvanically Isolated, Commoned, Supv.
3611E
8
Digital Output Modules
48 VDC Galvanically Isolated, Commoned, Supv.
3617E
8
Digital Output Modules
120 VDC Opto-Isolated, Commoned, Supervised
3623/3623T
16
Digital Output Modules
24 VDC Opto-Isolated, Commoned, Supervised
3624
16
Digital Output Modules
24 VDC Supervised/Non-Supervised, Commoned
3625
32
Digital Output Modules
24 VDC Opto-Isolated, Commoned Dual
3664
32
Digital Output Modules
24 VDC Opto-Isolated, Commoned Dual
3674
32
Digital Output Modules
Relay Output Non-triplicated, Normally Open
3636R/3636T
32
Analog Input Modules
0-5 VDC Differential, DC Coupled
3700A
32
Analog Input Modules
0-10 VDC Differential, DC Coupled
3701
32
Analog Input Modules
0-5, 0-10 VDC Differential, Isolated
3703E
16
Analog Input Modules
0-5, 0-10 VDC High-Density, Differential, DC Coupled
