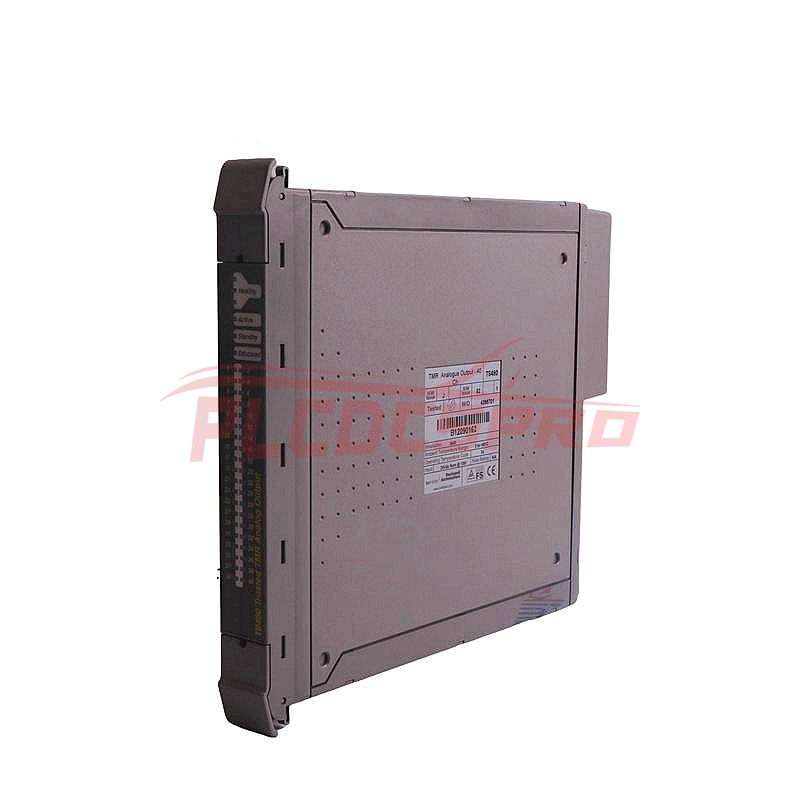

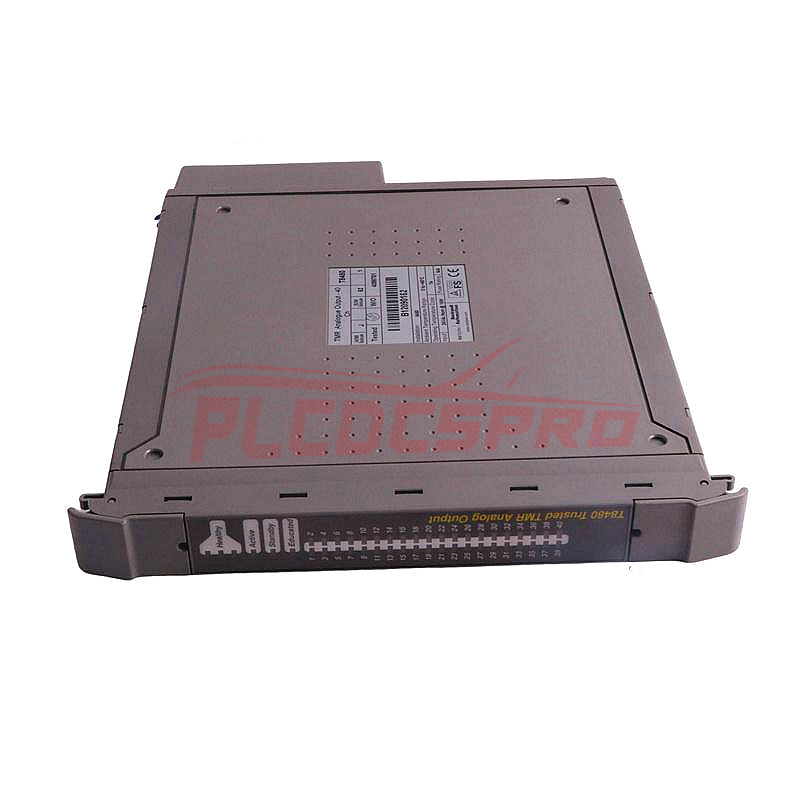

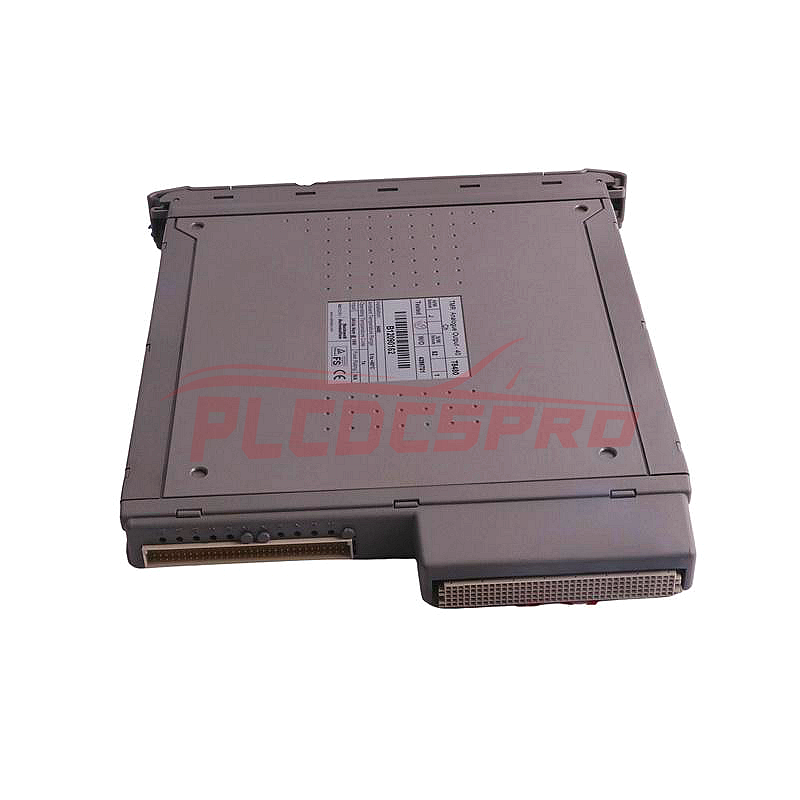

T8480 Trusted TMR Analog Output Module – 40 Channel
Description
The T8480 Trusted TMR (Triple Modular Redundant) Analog Output Module interfaces with 40 field devices. It incorporates triplicated diagnostic tests across the module, including precise measurements of current and voltage for each segment of the output channel. Utilizing a TMR architecture for all 40 output channels ensures high fault tolerance. The module automatically monitors line conditions, detecting open and short circuits in field wiring and load devices.
Specifications
Backplane (IMB) Supply
Voltage: 20V DC to 32V DC
Power: 22 W
Field Supply
Voltage: 18V DC to 32V DC
Maximum Current: 0.9 A
Power Dissipation:
Field Supply at Maximum Channel Current: 28 W
System Supply: 22 W
Module Location
Slots: T8100, T8300 I/O Module Slot
Isolation
Power Group to Power Group: 50V Reinforced (continuous) [Type tested at 1411V DC for 60 s]
Field Common: 50V Reinforced (continuous) [Type tested at 1411V DC for 60 s]
Channel to Channel (within Power Group): 250V Basic (fault) [Type tested at 2436V DC for 60 s]
Fusing: Not user serviceable
Outputs
Number of Outputs: 40
Number of Power Groups: 5 (Each Power Group comprises 8 channels)
Output Characteristics:
Off State Leakage Current @ 24V: 350 µA max
Current Rating (Continuous): 1 mA to 22 mA
Recommended Output Current: 4 mA to 20 mA
Calibration Accuracy @ +25 °C: ±0.1% of Full Scale
Overall Accuracy 0 °C to +60 °C: ±0.25% of Full Scale
Field Voltage Range: 18V DC to 32V DC
Maximum Withstanding: -1V DC to +36V DC
Standby Swap Bump: ±350 µA max for 7 sec max
Fault Condition Bump: ±10 mA max for 50 ms max
Step Response Time: 1 mA to 20 mA step change to 1% of final value <50 ms
Output Short Circuit Protection: 22 mA into 0 Ω
Maximum Load Resistance: Refer to graph
Sequence of Events
Event Resolution (LSB): 1 ms
Time Stamp Accuracy: ±10 ms
Environmental Specifications
Operating Temperature: 0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature: -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity - Operating and Storage: 10% – 95%, noncondensing
Further Environmental Specifications: Refer to Document ICSTT-TD003
