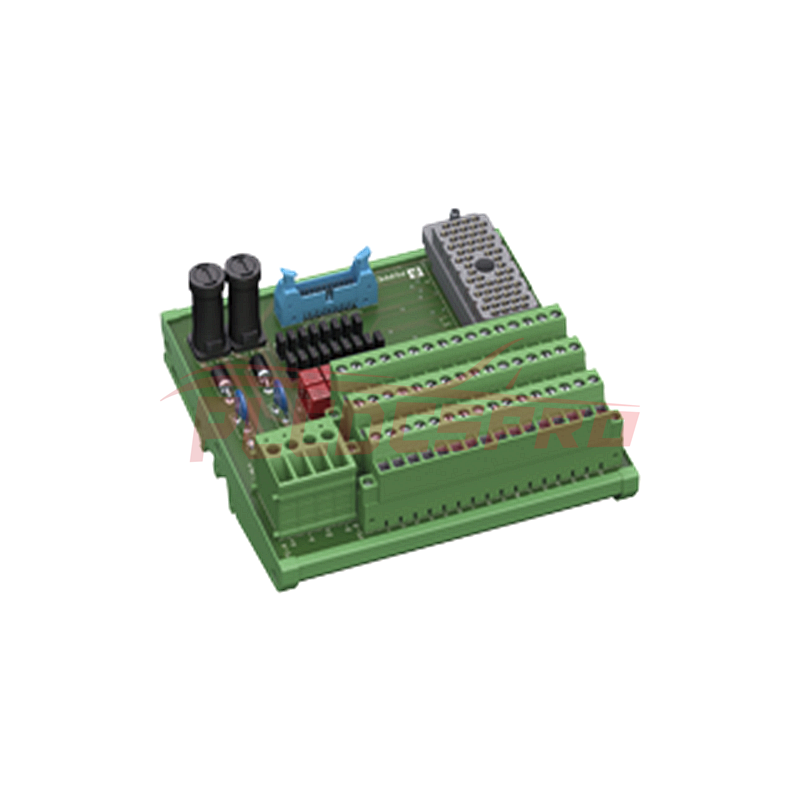

The HART Termination Board FI-PFH-TR-AI-370X-GP is designed for integration with Schneider Electric's Tricon series by Triconex, specifically compatible with 16-channel AI modules such as the 3700, 3700A, 3703E, and 3721. This board facilitates robust signal termination for improved system stability and performance in industrial environments.
Technical Specifications
Supply Voltage: 20.4 - 27.6 V DC SELV/PELV
Voltage Drop: 0.9 V across series diode
Ripple: Maximum 10%
Fusing: 1 A
Power Dissipation: ≤ 500 mW
Reverse Polarity Protection: Yes
Interface and Redundancy
Type: Multiplexer connection via IDC plug, 26-pin
Redundancy: Available, with decoupled, monitored, and fused supply
Signal and Display Specifications
Rated Current: Maximum 30 mA per channel
Display Elements: LED indicators for power supply (green LEDs)
Environmental and Mechanical Compliance
Ambient Temperature: 0 - 50 °C (32 - 122 °F)
Storage Temperature: -15 - 50 °C (5 - 122 °F)
Relative Humidity: ≤ 93%, non-condensing
Shock Resistance: 15 g, 11 ms
Vibration Resistance: 1 g, 10 - 150 Hz
Degree of Protection: IP20
Physical Characteristics
Material: Housing made of PVC
Weight: Approximately 415 g
Dimensions: 126 x 123 x 59 mm (Width x Height x Depth)
Mounting: On 35 mm DIN mounting rail according to EN 60715:2001
