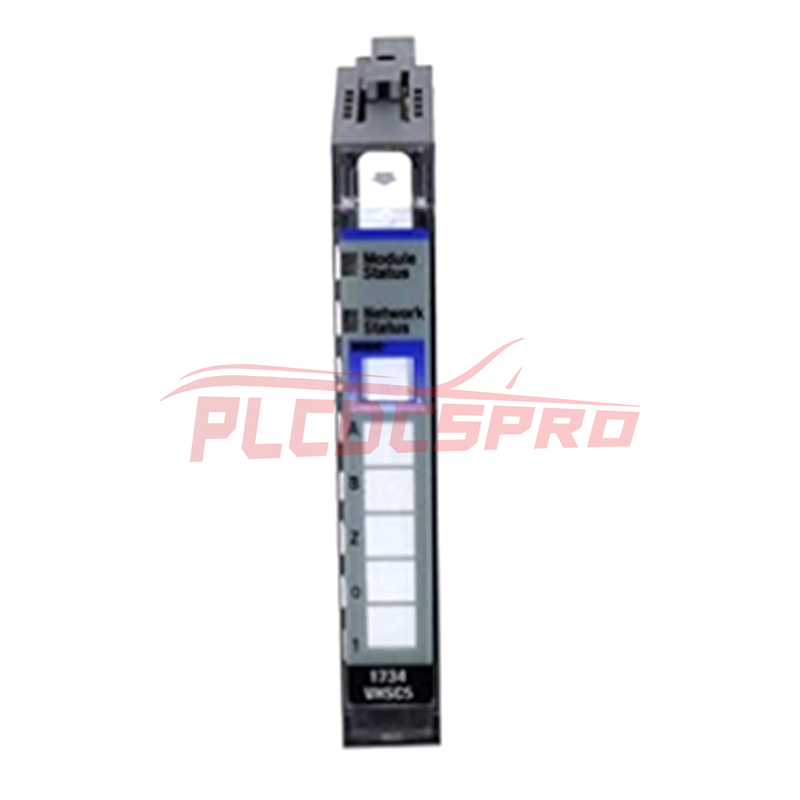

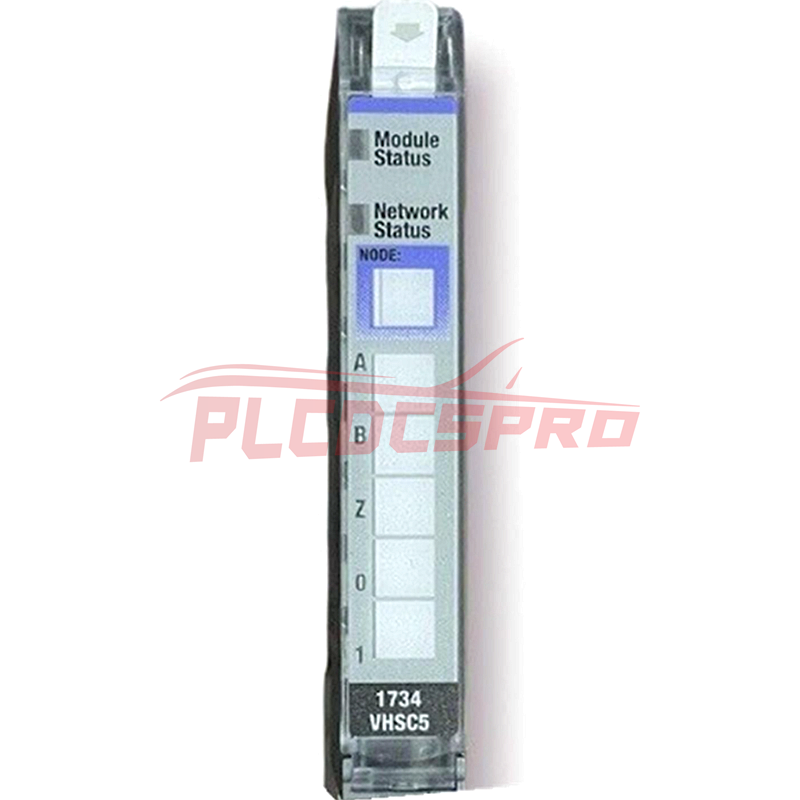

New Allen-Bradley 1734-VHSC5 Point I/O Ultra High Speed Counter Module
Sku:1734-VHSC5
Country Of Origin: USA
Vendor: Allen Bradley
Type: High-Speed Counter
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1734-VHSC5 is a 5V High-Speed Counter Module designed for use within the POINT I/O system. It acts as a signal conditioner and counter, managing command information between the POINTBUS backplane and customer process signals.
Key Specifications
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1734-VHSC5
Series: POINT I/O
Module Type: High-Speed Counter Module (VHSC)
Counter: 1
Input Voltage: 5 Volts DC
Output Groups: 1 of 2
Key Switch Position: 2
Power Dissipation: 1.5 Watts
Thermal Dissipation: 5.1 BTU/hour
Input Features
Input Current:
19.1 mA at 5 Volts DC
25.7 mA at 6 Volts DC
Input Filter Selection:
OFF or selectable options:
50 Hz: 10 ms
500 Hz: 1 ms
5 kHz: 100 µs
50 kHz: 10 µs
Maximum Frequency:
1 MHz for encoder X1
500 kHz for encoder X2
250 kHz for encoder X4 (no filter)
On to OFF / OFF to ON Delay Time: 25 µs (load dependent) / 150 µs (load dependent)
Output Features
Output Supply Voltage: 10 to 28.8 Volts DC
Drop Voltage: <0.3 Volts DC at 0.5 A
Current Leakage: <0.5 mA
Maximum ON State Current: 0.5 A
Short-Circuit Protection: Protected up to 6 A, can either cycle until fault is cleared or latch off during a fault.
Environmental Specifications
Operating Temperature Range: -20 to 55 °C
Non-Operating Temperature Range: -40 to 85 °C
Relative Humidity: 5% to 95% (non-condensing)
Physical Specifications
Dimensions: 5.6 x 1.2 x 7.5 cm
Weight: 0.033 kg
Installation Notes
The module can be easily integrated into the POINT I/O system and is suitable for applications that require high-speed counting and feedback from encoders, pulse generators, and limit switches.
