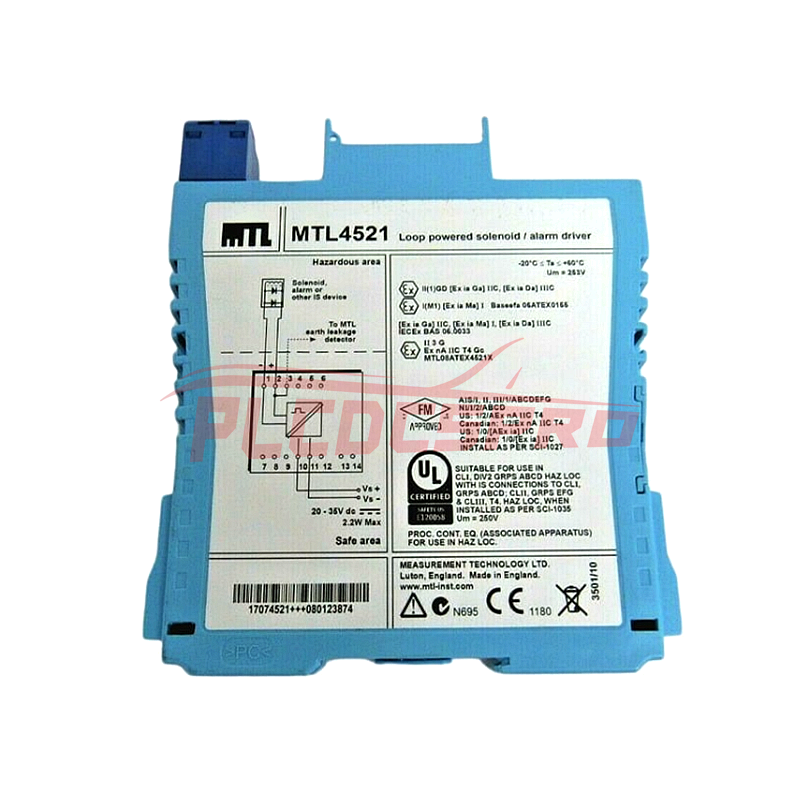

The MTL4521L is a loop-powered module designed for hazardous areas, enabling control of devices from a safe area. It can drive certified intrinsically safe low-power loads and non-energy-storing simple apparatus such as LEDs.
Specifications:
Number of Channels: One
Location of Load:
Zone 0, IIC, T4–-6 hazardous area if suitably certified
Div. 1, Group A hazardous location
Output Current (mA): 48
Output Voltage (V): 10.3 to 21.4V
Minimum output voltage: 10.3V at 48mA
Maximum output voltage: 21.4V from 232Ω
Current Limit: 48mA
Input Voltage: 20 to 35V dc
Output Ripple: < 0.5% of maximum output, peak to peak
Response Time: Output within 10% of final value within 100ms
LED Indicator: Yellow, on when output active
Maximum Current Consumption: 90mA at 24V
Power Dissipation within Unit: 1.4W at 24V
Safety Description:
Uo= 25V
Io= 108mA
Po= 0.68W
Um = 253V rms or dc
SIL Capability: SIL1 capable for a single device (HFT=0) when the required function is to energize the output.
