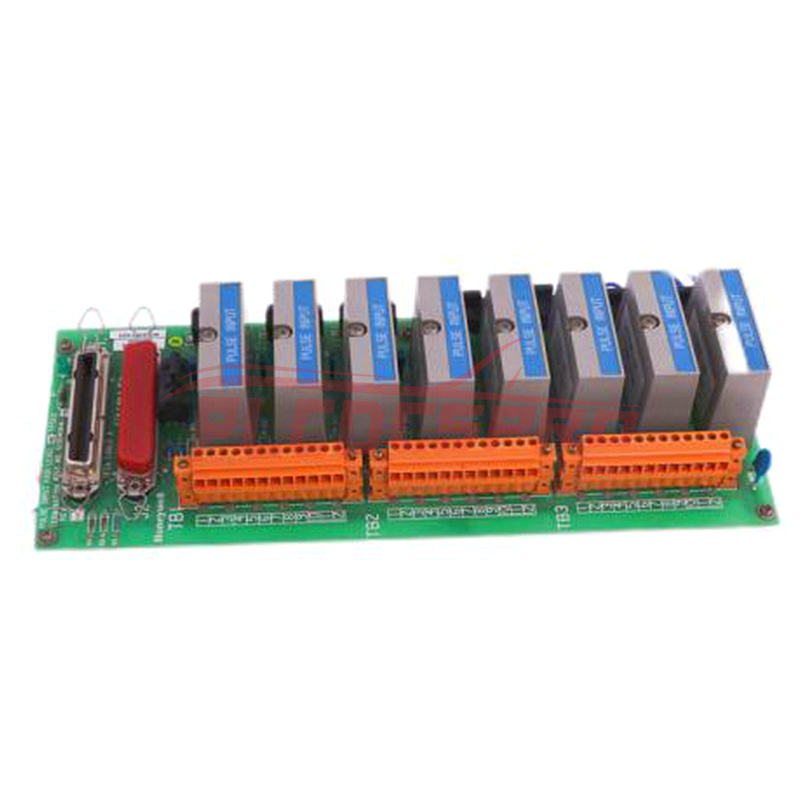

The Honeywell MC-TPIX12 is a Pulse Input FTA (Termination Board) designed for interfacing with pulse-generating sensors and devices. It supports up to 8 input channels, providing precise and reliable pulse signal processing for industrial automation and control systems.
Features
Input Channels: 8 pulse input channels.
Sensor Compatibility:
Self-powered 2-wire sensors.
3-wire PM/APM/HPM-powered sensors with automatic current limiting.
Supports pulse voltage or contact inputs.
Input Types: Rectangular or sine waves.
Diagnostics: Provides accurate rate, pulse width, and contact condition monitoring.
Flexibility: Configurable for a wide range of pulse signals and frequencies.
Protection: Supports ±30V maximum input range without damage.
Specifications
Input Impedance: Minimum 10 kΩ.
Input Frequency: 1 Hz to 20 kHz (all channels with the same amplitude).
Pulse Levels:
Low: -0.5 V to +1.9 V.
High: +3.5 V to +24 V (with hysteresis).
Pulse Width:
25 µs minimum at 20 kHz (IOP filter jumper in storage position).
50 µs minimum at 10 kHz (IOP filter jumper in H position).
500 µs minimum at 1 kHz (IOP filter jumper in L position).
Rate Accuracy: ±0.01% of input frequency or ±0.4 Hz (whichever is larger).
