Mark V Series Digital I/O Board | General Electric DS200TCDAH1BHD
Sku:DS200TCDAH1BHD
Country Of Origin: USA
Vendor: GE
Type: Digital I/O
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Product Information
Manufacturer: GE General Electric Product Series: Mark V Functional Part Number: DS200TCDAH1BHD Functional Description: Digital I/O Board
Functional Details

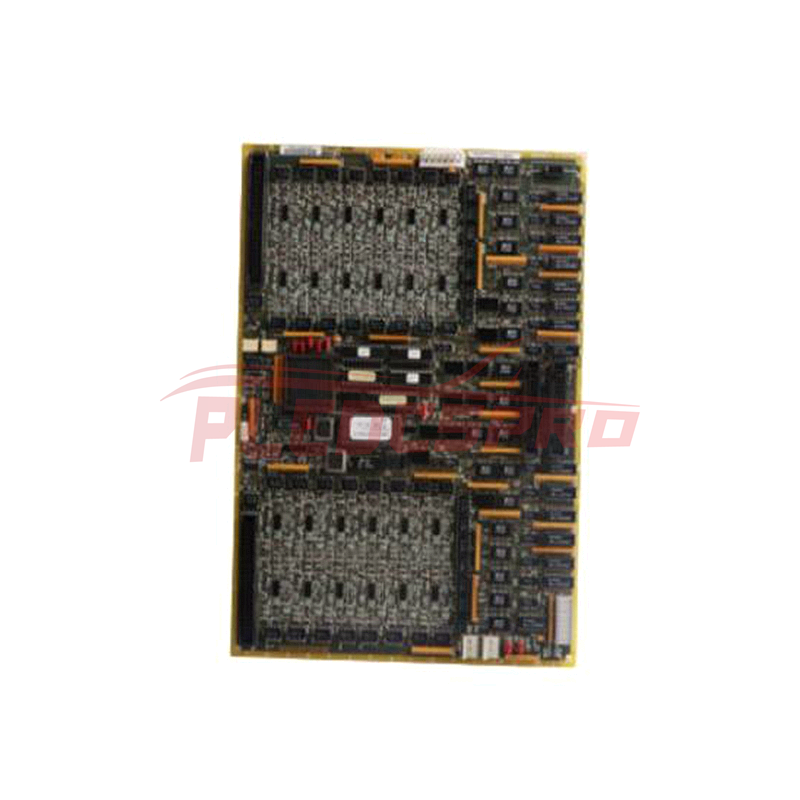

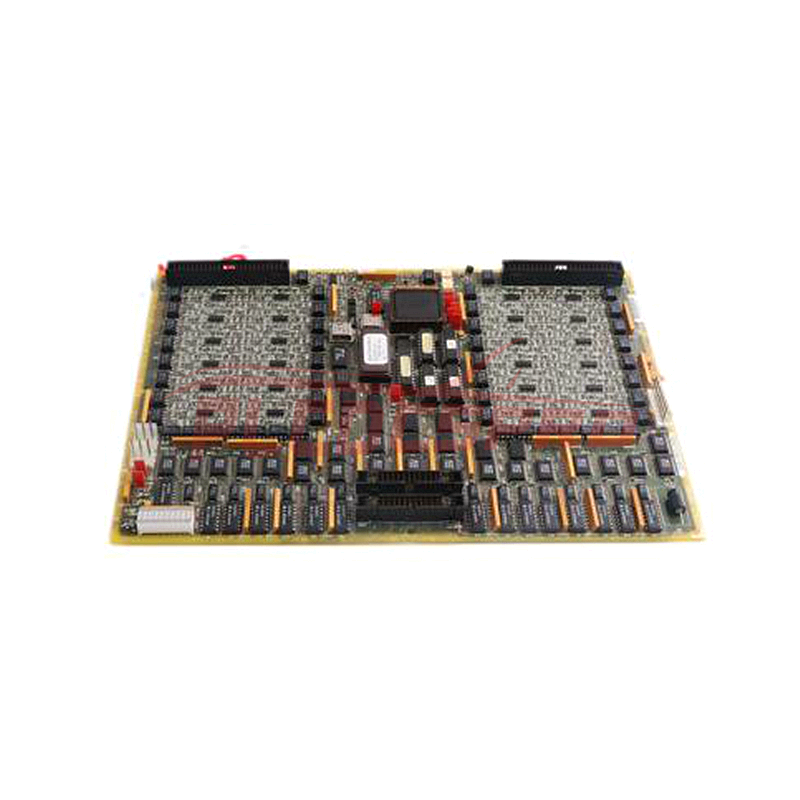

The DS200TCDAH1BHD is a digital I/O board designed for integration into the Mark V Turbine Control System Series by General Electric. It serves as a critical component for digital input and output operations within industrial turbine control applications.
Hardware Specifications
Functional Product Acronym: TCDA
PCB Coating Type: Conformal Coating
1st Functional Revision: B
2nd Functional Revision: H
Artwork Revision: D
The board features:
8 jumpers labeled JP1 to JP8 for configuration
1 LED indicator
2 3-pin connectors
1 block of 10 LEDs
2 50-pin connectors
Connectors and Configuration
The DS200TCDAH1BHD includes various connectors such as:
JP TCPS Board Power Distribution Connector
JQ DTBA Board Contact Input Signals Connector
JR DTBB Board Contact Input Signals Connector
JO1 and JO2 TCRA Board Contact Output Signals Connectors
JX1 and JX2 IONET Signals Daisy-Chained Connectors
These connectors facilitate communication and interface with other components in the Mark V Series, ensuring seamless integration and functionality.
Installation and Configuration
Before installation, it's crucial to refer to the provided documentation to configure jumpers according to site-specific requirements. Default jumper settings typically meet standard operational needs, but adjustments may be necessary based on installation specifics.
