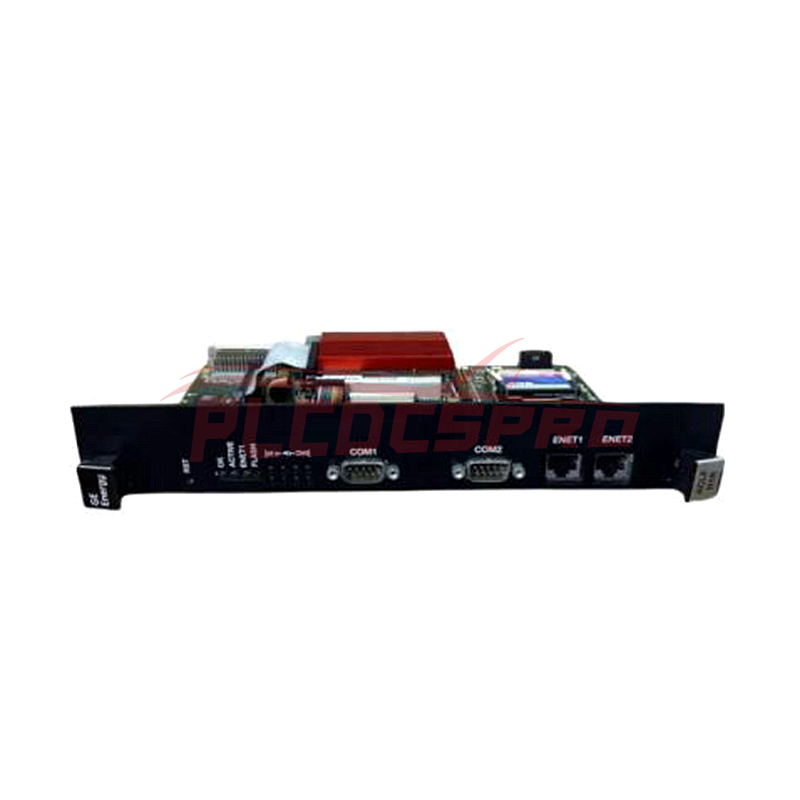

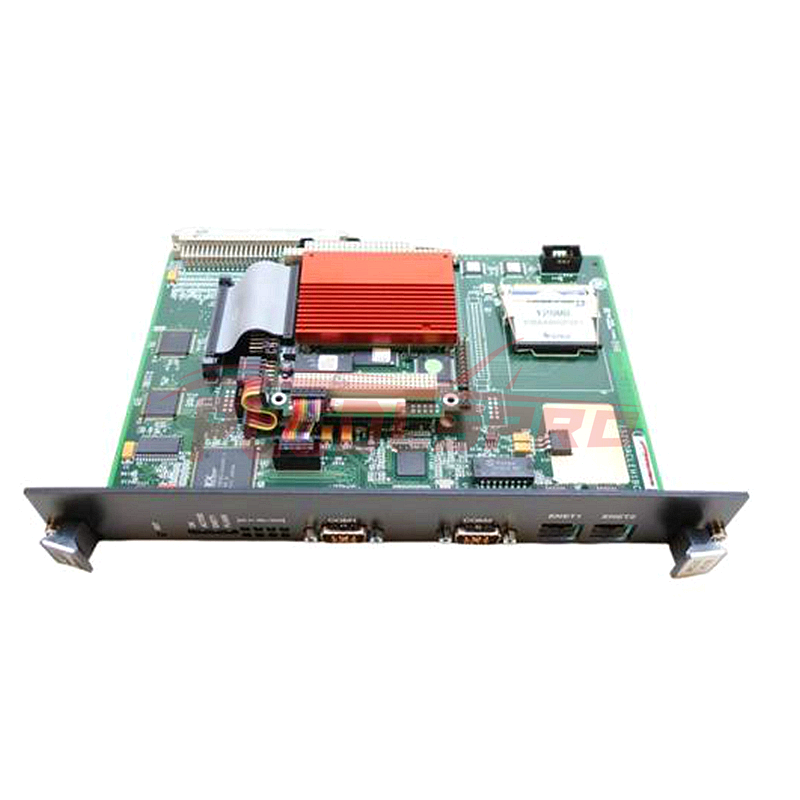

IS200ACLEH1BAA/ACLEH1B | GE Application Control Layer Module

Sku: IS200ACLEH1BAA/ACLEH1B
Country Of Origin: USA
Vendor: GE
Type: ACL Module

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

IS200ACLEH1BAA is an Application Control Layer Module manufactured by General Electric for the EX2100 series control systems.

Features

Part Number: IS200ACLEH1BAA
Manufacturer: General Electric
Product Type: Application Control Layer Module
Series: EX2100
DRAM: 8 MB
BIOS: 4 MB
Communication: Ethernet
Weight: 2.90 lbs
Availability: In Stock
Manual: GEI 100434A
Country of Manufacture: United States (USA)

Functional Description

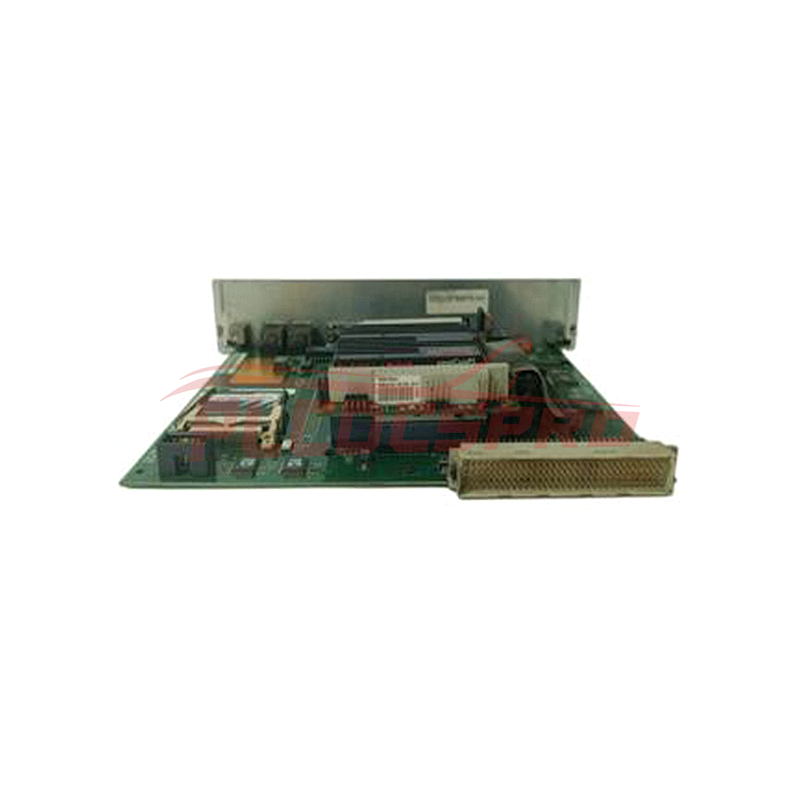

IS200ACLEH1BAA serves as a microprocessor-based master controller within the EX2100 control systems. It is designed to manage multiple tasks using communication networks such as EthernetTM and ISBus. The ACL module occupies two half-slots in a standard Innovation Series drive or EX2100 exciter board rack. In drive applications, it connects via a P1 connector (4-row 128-pin) to the Control Assembly Backplane Board (CABP), while in EX2100 exciters, it is mounted on the Exciter Backplane (EBKP).

Technical Specifications

Integrated Circuits:
- Central processing unit (CPU)
- Peripheral component interconnect (PCI) controller
- 128 Kbytes of Level 2 cache
Memory:
- 8 MB dynamic random access memory (DRAM)
- 4 MB flash memory for basic I/O system (BIOS)
Communication Interfaces:
- High-speed Ethernet
- Bus target interface
- COM1 and COM2 serial ports
- ISBus communication ports

Hardware Features

The ACL module includes essential hardware components such as a CPU, PCI controller, and cache memory, ensuring efficient processing capabilities.
It features 8 MB of DRAM and 4 MB of BIOS flash memory, facilitating storage and execution of operational software.
Communication interfaces include high-speed Ethernet for network connectivity, COM1 and COM2 serial ports for additional communication channels, and ISBus ports for interfacing with other modules in the system.
