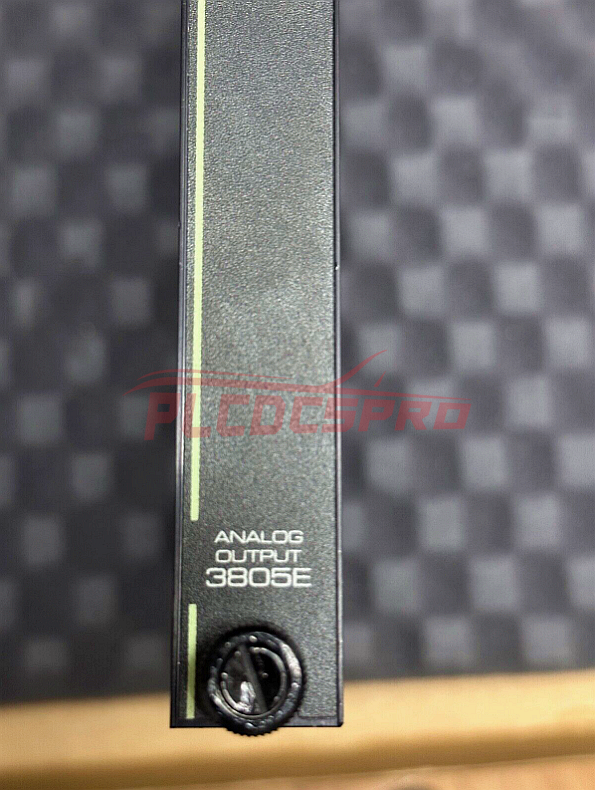

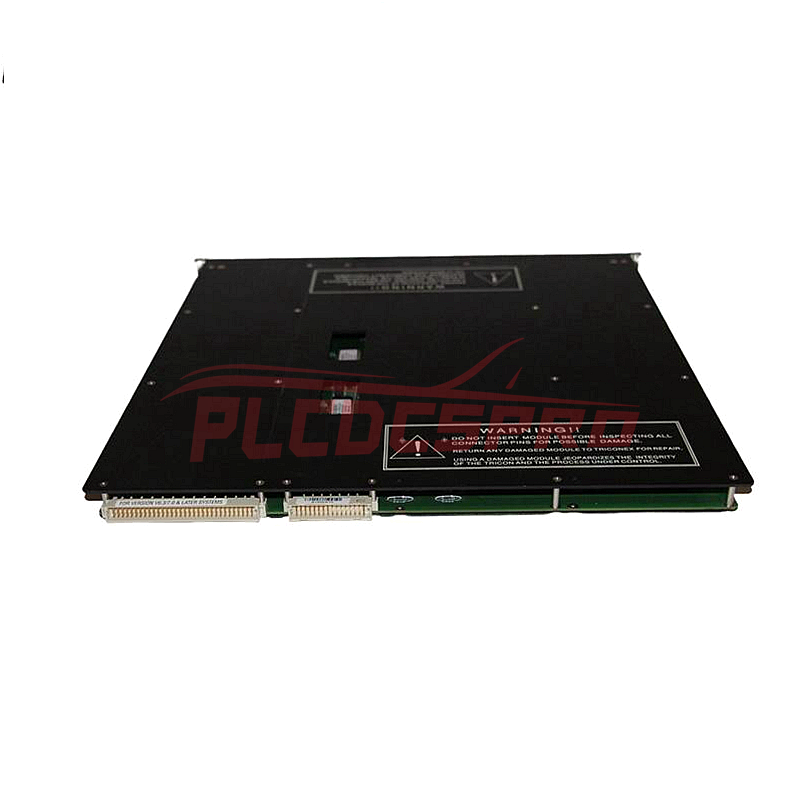

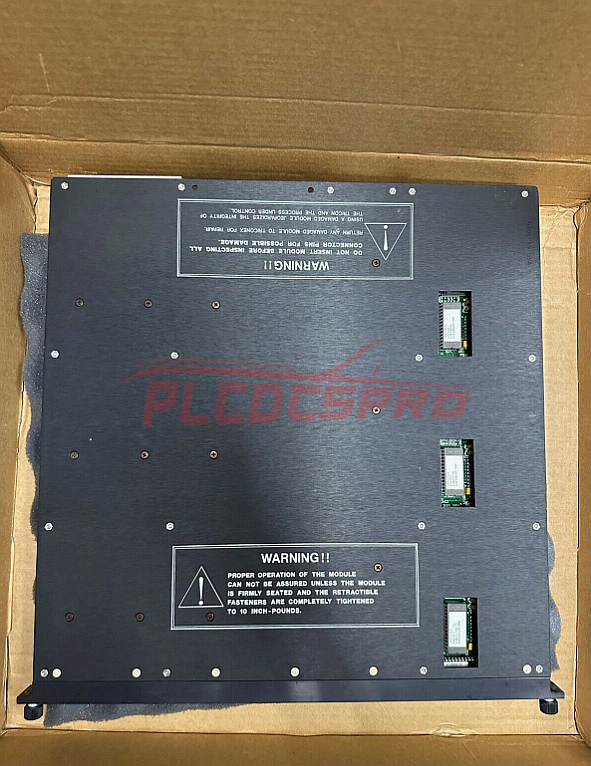

Invensys Triconex 3805E Analog Ouput Module

Sku: 3805E
Country Of Origin: USA
Vendor: Invensys System
Type: Analog Ouput

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Manufacturer: Triconex

Product No.: 3805E

The 3805E Analog Output Module is a component designed to receive output signals from a main processor module across three channels. These signals are then voted on, and a healthy channel is selected to drive eight outputs. Here's a breakdown of its key features and specifications:

Features:

Channel Monitoring: Each channel includes a current loopback circuit to verify signal accuracy independently of load presence or channel selection.
Self-Calibration: The module maintains an internal voltage reference for self-calibration and provides module health information.
Diagnostics: Ongoing diagnostics are performed on each channel and circuit of the module. Failure of any diagnostic deactivates the faulty channel and activates the Fault indicator, triggering the chassis alarm.
Redundancy: The module supports redundant loop power sources with individual power and fuse indicators (PWR1 and PWR2).
Open Loop Detection: An indicator activates if the module is unable to drive current to one or more outputs.
Hot-Spare Capability: Supports online replacement of a faulty module without system shutdown.
Mechanical Keying: Each module is mechanically keyed to prevent improper installation in a configured chassis.

Specifications:

Model Number: 3805E
Type: TMR (Triple Modular Redundancy)
Output Current Range: 4-20 mA output (+6% overrange)
Number of Output Points: 8
Isolation: No isolated points, commoned return, DC coupled
Resolution: 12 bits
Output Accuracy: <0.25% (in the range of 4-20 mA) of Full Scale Range (FSR) (0-21.2 mA), from 32°F to 140°F (0°C to 60°C)
External Loop Power: +42.5 VDC maximum, +24 VDC nominal (reverse voltage protected)
Output Loop Power Requirements:
- Load (Ohms) / Loop Power Required:
  - 20 VDC (1 amp minimum) for 250 Ohms
  - 25 VDC (1 amp minimum) for 500 Ohms
  - 30 VDC (1 amp minimum) for 750 Ohms
  - 35 VDC (1 amp minimum) for 1000 Ohms
Over-Range Protection: +42.5 VDC continuous
Switch Time on Leg Failure: < 10 ms, typical
Diagnostic Indicators: Module status indicators include PASS, FAULT, ACTIVE, LOAD, PWR1, PWR2
Color Code: Pea Green

Tricon I/O Modules

Type	Voltage Description	Model No.	Points
Digital Input Modules	115 VAC/VDC Opto-Isolated, Non-Commoned	3501E/3501T	32
Digital Input Modules	48 VAC/VDC Commoned in Groups of 8, Self-Test	3502E	32
Digital Input Modules	24 VAC/VDC Commoned in Groups of 8, Self-Test	3503E	32
Digital Input Modules	24/48 VDC High-Density, DC Coupled	3504E	64
Digital Input Modules	24 VDC Low Threshold with Self-test, Commoned	3505E	32
Digital Input Modules	24 VDC Single, Opto-Isolated, Commoned	3564	64
Digital Input Modules	Pulse Input Differential, AC Coupled	3511	8
Digital Input Modules	Pulse Totalizer Opto-isolated, Non-commoned	3515	32
Digital Output Modules	115 VAC Opto-Isolated, Non-commoned	3601E/3601T	16
Digital Output Modules	120 VDC Opto-Isolated, Non-commoned	3603B, 3603E/3603T	16
Digital Output Modules	24 VDC Opto-Isolated, Non-commoned	3604E	16
Digital Output Modules	48 VDC Opto-Isolated, Non-commoned	3607E	16
Digital Output Modules	115 VAC Galvanically Isolated, Commoned, Supv.	3611E	8
Digital Output Modules	48 VDC Galvanically Isolated, Commoned, Supv.	3617E	8
Digital Output Modules	120 VDC Opto-Isolated, Commoned, Supervised	3623/3623T	16
Digital Output Modules	24 VDC Opto-Isolated, Commoned, Supervised	3624	16
Digital Output Modules	24 VDC Supervised/Non-Supervised, Commoned	3625	32
Digital Output Modules	24 VDC Opto-Isolated, Commoned Dual	3664	32
Digital Output Modules	24 VDC Opto-Isolated, Commoned Dual	3674	32
Digital Output Modules	Relay Output Non-triplicated, Normally Open	3636R/3636T	32
Analog Input Modules	0-5 VDC Differential, DC Coupled	3700A	32
Analog Input Modules	0-10 VDC Differential, DC Coupled	3701	32
Analog Input Modules	0-5, 0-10 VDC Differential, Isolated	3703E	16
Analog Input Modules	0-5, 0-10 VDC High-Density, Differential, DC Coupled	3704E	64
Analog Input Modules	Thermocouple Differential, DC Coupled	3706A	32
Analog Input Modules	Thermocouple Differential, Isolated	3708E	16
Analog Input Modules	0–5 VDC Single-Ended	3720	64
Analog Input Modules	0 to 5 or –5 to +5 VDC Differential, DC Coupled	3721	32
Analog Output Modules	4-20 mA Current Loop, DC Coupled	3805E/3805H	8
Analog Output Modules	4-20 mA and 20-320 mA Current Loop, DC Coupled	3806E	6 and 2
Analog Output Modules	–60 to 60 mA BiPolar, Commoned Return, DC Coupled	3807	4
