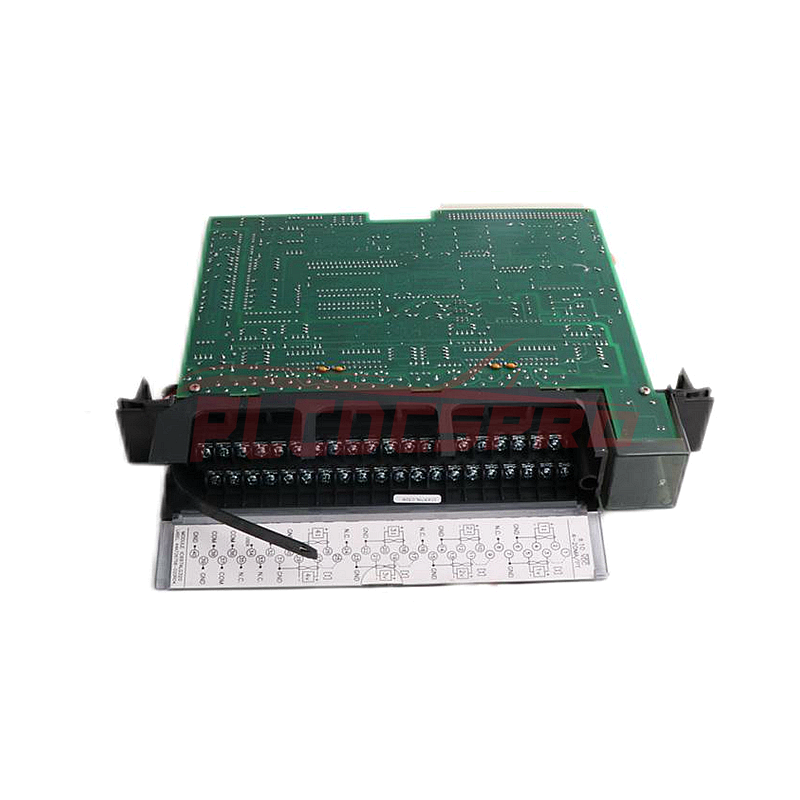

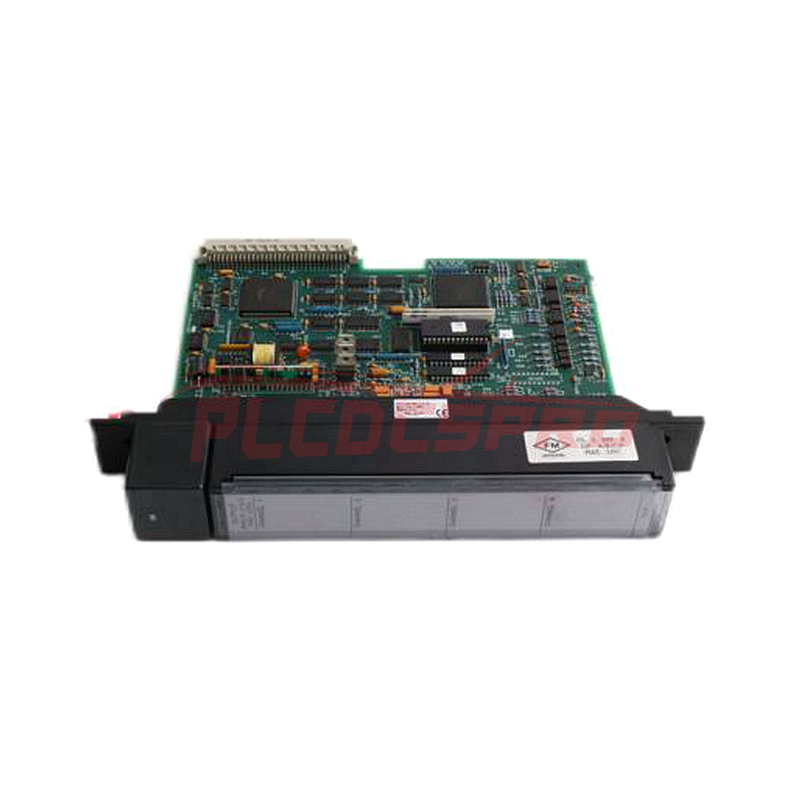

IC697ALG320 | GE Fanuc Analog Output Module | Series 90-30 PLC
Sku:IC697ALG320
Country Of Origin: USA
Vendor: GE
Type: Analog Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The IC697ALG320 is an advanced analog output module designed for compatibility with GE Series 90-30 PLC systems. It supports both voltage and current outputs on a single module, featuring four independently configurable channels for either current or voltage output types. The module also offers options for bipolar or unipolar outputs to suit various application needs.
Key Features
Output Flexibility: Provides voltage outputs ranging from -10 volts to +10 volts and current outputs from 0.0 mA to 22.5 mA (default 4 to 20 mA), accommodating diverse control requirements.
Resolution: Offers 16-bit resolution with 14-bit monotonicity, ensuring precise analog signal generation.
Configuration: Easily configurable using MS-DOS or Windows programming software, eliminating the need for jumpers or DIP switches.
Calibration: Factory calibrated with calibration data stored in non-volatile EEPROM memory, maintaining accuracy over time.
Isolation: Outputs are isolated from the backplane, protecting against overvoltage conditions and ensuring reliable performance.
Compatibility: Designed for seamless integration with GE Series 90-30 PLC systems, facilitating straightforward installation and operation.
Technical Information
Output Ranges:
Voltage: -10 volts to +10 volts
Current: 0.0 mA to 22.5 mA (default 4 to 20 mA)
Resolution: 16-bit with 14-bit monotonicity; voltage output has 312.5 microvolts per LSB step, current output has 0.5 microamps per LSB step.
Accuracy: Factory calibrated; voltage accuracy is ±2.5 millivolts, current accuracy is ±5 µA at 4.0 mA and 20 mA.
Temperature Coefficient: Voltage: ±25 PPM per °C typical; Current: ±50 PPM per °C typical.
Output Loading: Handles various load conditions for both voltage and current outputs, ensuring stability and performance under different circumstances.
Conversion Rate: Updates all outputs sequentially approximately every 2.0 milliseconds (maximum) across four channels.
