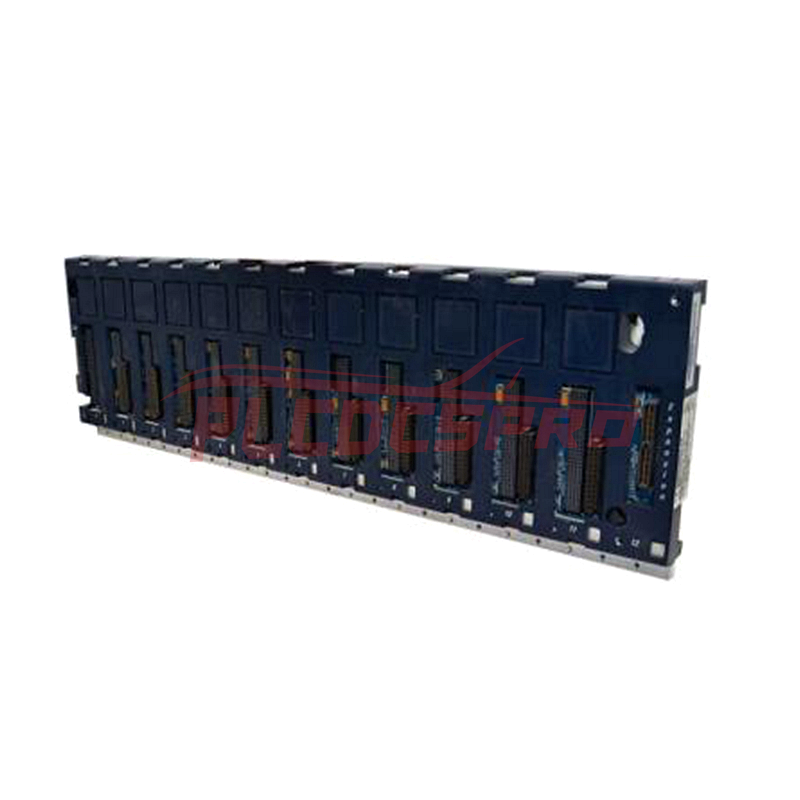

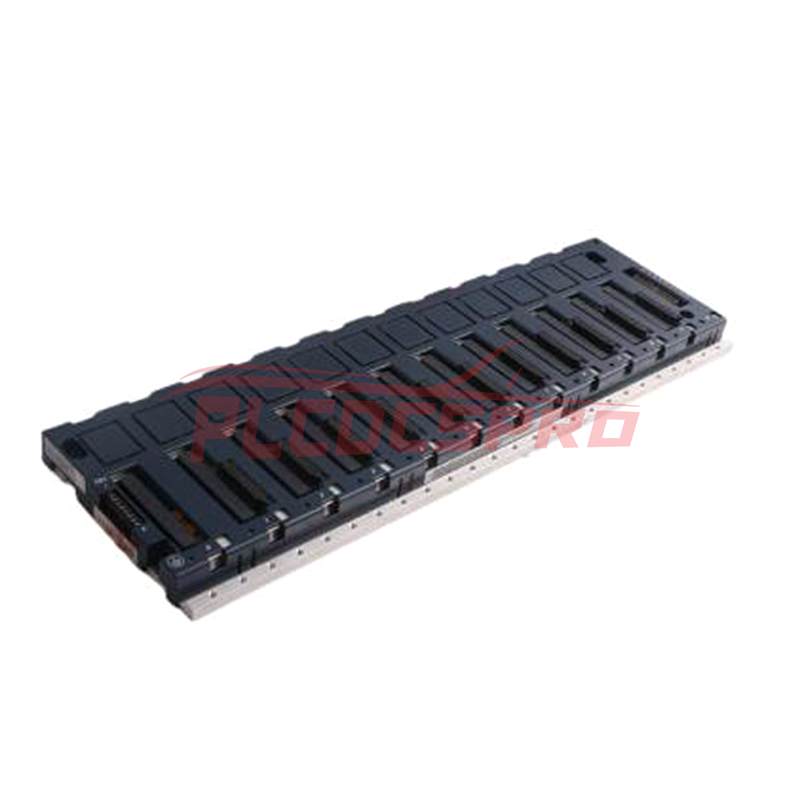

IC695CHS012 | GE Fanuc RX3i 12 Slots Universal Backplane
Sku:IC695CHS012
Country Of Origin: USA
Vendor: GE
Type: 12-Slot Backplane
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The IC695CHS012 is a universal backplane from the GE Fanuc RX3i PACSystem series. It provides housing for various RX3i modules and facilitates communication among them via a high-speed bus. With 12 slots available, this backplane supports both Peripheral Component Interconnect (PCI) and serial connections.
Features
Number of Slots: 12
Hot-Swap Support: Yes, allows for module replacement without powering down the system.
Baseplate Options: Supports Controller Base and Ethernet Expansion Base.
Technical Specifications
Dimensions (HxWxD): 141.4 mm x 457.2 mm x 147.3 mm (5.5 in x 18 in x 5.8 in)
Weight: (Specify weight if known)
Backplane Orientation: Horizontal
Required Input Voltage: +24 VDC
Internal Power Consumption:
5VDC: 240 mA
3.3VDC: 600 mA
Backplane Support: Supports both PCI and High-Speed Serial connections.
Installation Requirements
Mounting Type: Rack-mounted
Protection Rating: NEMA/UL Type 1 (IP20)
Minimum Clearance for Installation: 102 mm (4 in) on all sides for adequate air circulation and cooling.
Environmental Requirements:
For ATEX Zone 2 hazardous areas, it must be installed in an IP54 or greater enclosure with sufficient mechanical strength to withstand 3.5 Joules of impact energy.
Electrical Specifications
TB1 Terminal Block: Allows termination of an optional external 24VDC power source for certain IC693 and IC694 modules.
Recommended Wire Gauge: AWG 14-22 for terminal connections.
Current Ratings:
5VDC: 240 mA
3.3VDC: 600 mA
Communication and Connectivity
The backplane serves as the communication hub, providing connections for all modules installed in the RX3i system.
Slots 7 and 8 are typically designated for isolated external power sources, with each slot capable of accepting various components.
