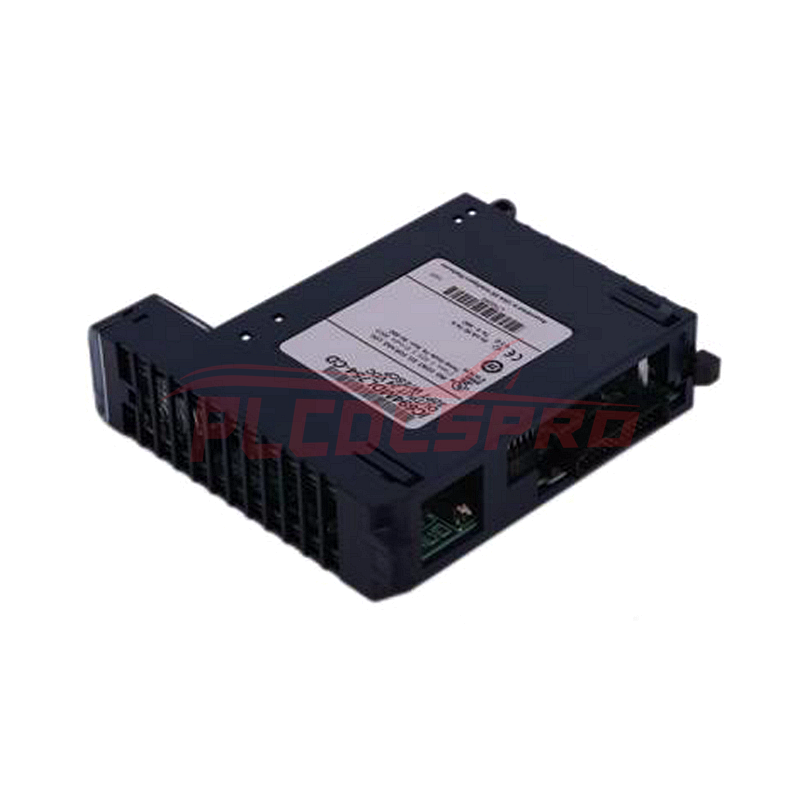

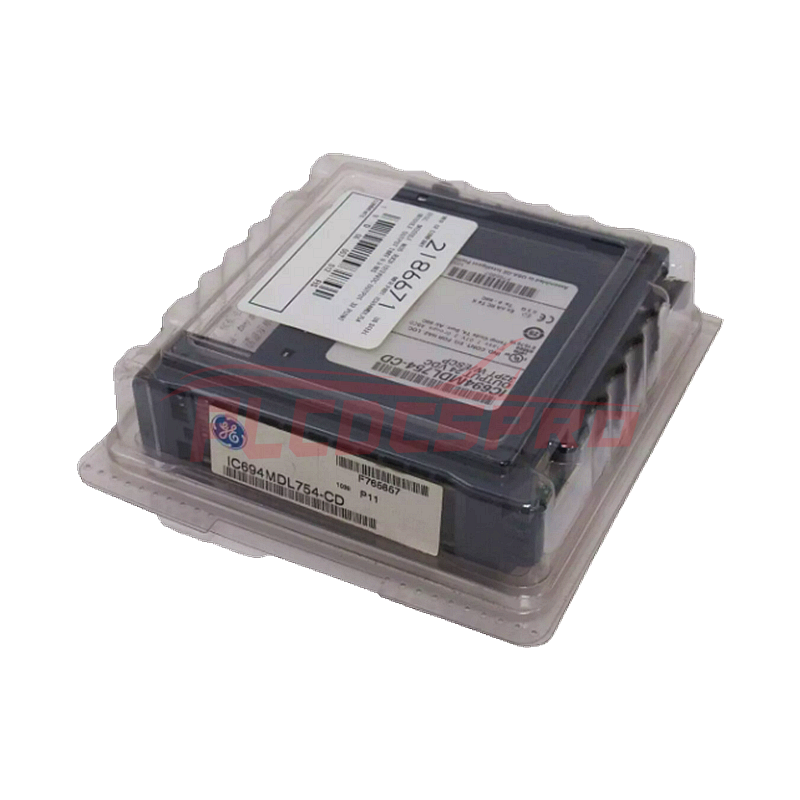

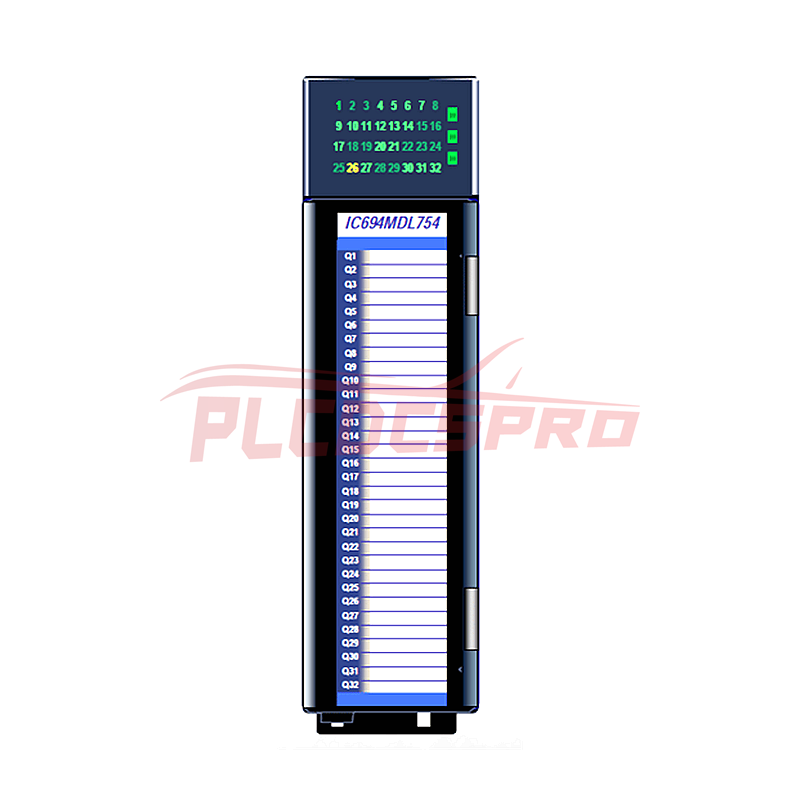

The IC694MDL754 is a 32-Point, 12/24 VDC, Electronic Short Circuit Protection (ESCP), Positive Logic, Output module from the GE Fanuc RX3i Series. This module provides 32 discrete output points, offering positive logic or sourcing type outputs.
Technical Information:
Rated Voltage: 12/24 volts DC, nominal
Output Voltage Range: 10.2 to 30 volts DC
Outputs per Module: 32 (two isolated groups of 16 outputs each)
Isolation:
Field to Backplane (optical) and to Frame Ground: 250 VAC continuous; 1500 VAC for 1 minute
Group to Group: 250 VAC continuous; 1500 VAC for 1 minute
Module ID: 0x059h
Output Current: 0.75 Amps per point
Power Consumption: 300 mA (maximum) from 5 volt bus on backplane
Thermal Derating: No derating at 24VDC. At 30VDC, outputs are derated above 42 degrees C
External Power Supply: +12 VDC to +30 VDC, 12/24 VDC nominal
Module version –CC and later: 72 mA/group with all outputs commanded Off, 132 mA/group with all outputs commanded ON
Module version –BC and earlier: 72 mA/group with all outputs commanded OFF, 100 mA/group with all outputs commanded ON
Output Characteristics:
Inrush Current: 3 Amps supplied for 10ms without ESCP trip
Output Voltage Drop: 0.3 volt DC maximum
Steady-state Overcurrent Trip: 5 Amps typical per point
Output Leakage Current: 0.1mA maximum
On Response Time: 0.5ms maximum
Off Response Time: 0.5ms maximum
Protection: Short-circuit protection, overcurrent protection, overtemperature protection, all with auto recovery.
