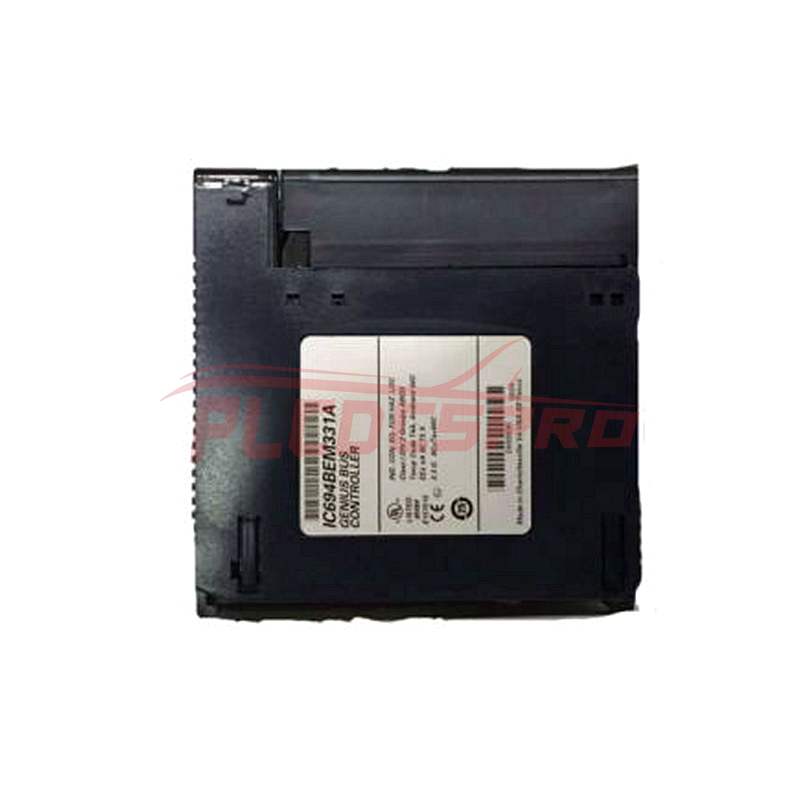

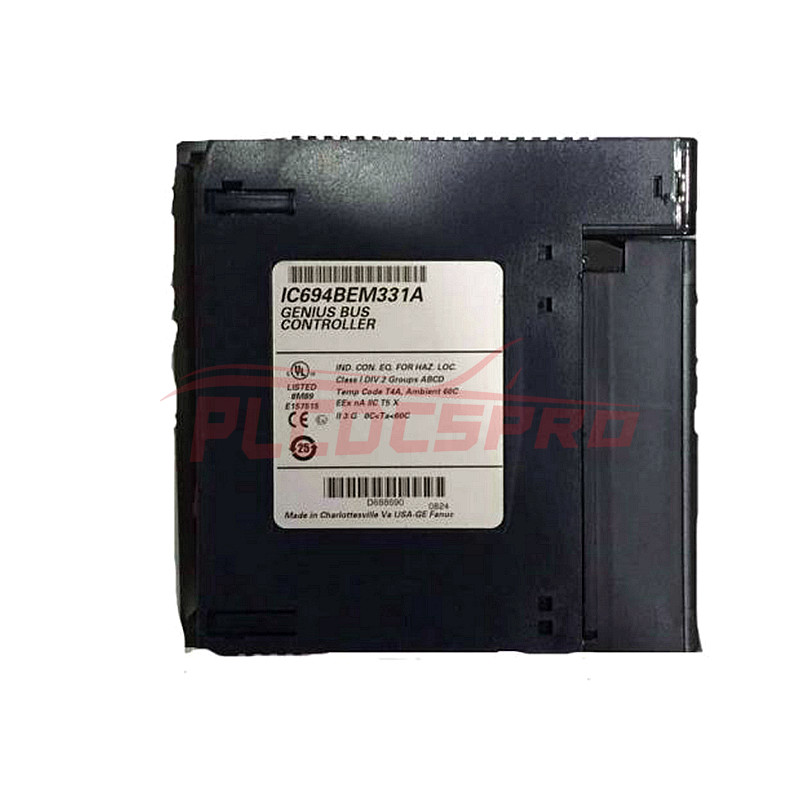

IC694BEM331 | GE Fanuc RX3i BEM331 Communication Module
Sku:IC694BEM331
Country Of Origin: USA
Vendor: GE
Type: Communication Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: GE
Product No.: IC694BEM331
The GE Fanuc IC694BEM331 Genius Bus Controller interfaces a PACSystems RX3i and a Genius I/O serial bus. In addition to the Bus Controller, the bus will also serve: Genius blocks, remote drops, VersaMax and Field Control I/O Stations, PLCs with Genius Bus, Genius Hand-Held Monitor (HHM), and numerous hosts. Featuring 128 bytes exchange with each device on the Genius I/O bus, the Genius blocks and other devices report faults in an automatic fashion, including alarms and certain other previously defined issues to the bus controller. The bus controller then manages any diagnostic messages it receives, which are then read by the CPU routinely. Faults can then be displayed in the fault table if the programming software is employed.
The IC694BEM331 maintains all Genius datagrams and can send up to 128 bytes of Global Data with each bus review. Global data is data that is spontaneously and mechanically broadcast. Up to eight Genius bus controllers can be incorporated in the system with each transferring up to 128 bytes.
Technical Information
Specifications:
Current Consumption: 300mA at 5Vdc, maximum
Diagnostics: Advanced diagnostics capabilities
Communications: Global Data and Datagrams
Data Length: 128 bytes per message
Data Rates: Configurable: 153.5kbaud standard/extended, 76.8kbaud, or 38.4kbaud
Genius Bus Specifications:
Bus Type: Daisy-chained bus cable; single twisted-pair plus shield or Twinax. Fiber optical cable and modems can also be used.
Bus Termination: 75Ω, 100Ω, 120Ω, or 150Ω resistor at both ends of electrical bus cable.
Maximum Bus Length: 7800 feet at 38.4kbaud, 4500 feet at 76.8kbaud, 3500 feet at 153.6kbaud extended, 2000 feet at 153.6Kbaud standard. Maximum length at each baud rate also depends on cable type, as listed in the Genius System and Communications Manual GEK-90486-1.
Maximum Number of Devices: 32 devices at all baud rates except 38.4kbaud. 16 devices at 38.4kbaud.
Isolation: 2000 volts Hi-Pot, 1500 volts transient common mode rejection.
