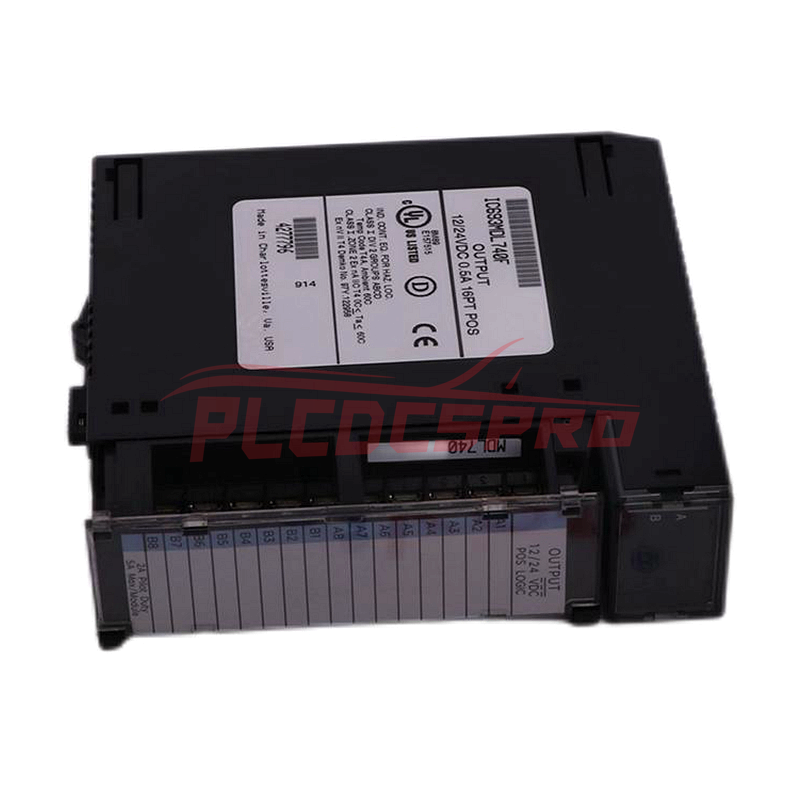

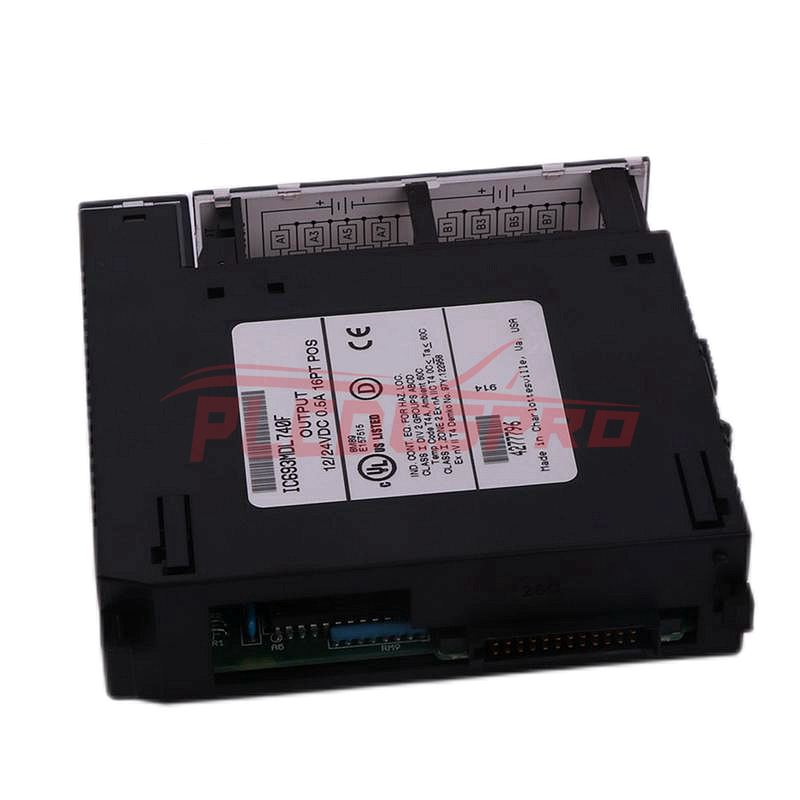

The GE Fanuc IC693MDL740 is a 12/24 positive logic DC Output Module designed for use with the Series 90-30 Programmable Logic Controller (PLC). This module sources current from the positive power bus terminal or user common to operate various loads, supporting a maximum output of 0.5 amps per point with a total of 2 amps per common.
Features
Output Points: 16 output points grouped into two equal sections of 8 points each, each with a common output pin.
Output Logic: Positive logic, allowing current sourcing to the connected loads.
LED Indicators:
Two horizontal rows of green LEDs (labeled A1 and B1) to indicate output status.
Design:
Hinged door with internal wiring information and external identification space.
Blue color coding on the left side of the insert indicates low-voltage module status.
Specifications
Manufacturer: GE Fanuc
Part Number: IC693MDL740
Rated Voltage: 12/24 volts DC
Output Current:
Maximum per point: 0.5 Amps
Maximum per common: 2 Amps
Operating Voltage Range: 12 to 24 volts DC (+20%, -15%)
Peak Current Draw: 110 milliamps
Voltage Type: DC
Environmental Specifications
Operating Temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Temperature: -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Relative Humidity: 5 to 95% (non-condensing)
Installation
Compatibility: Can be installed in any input or output slot of the Series 90-30 PLC system.
Power Supply: Requires an external power supply for operation of field devices.
