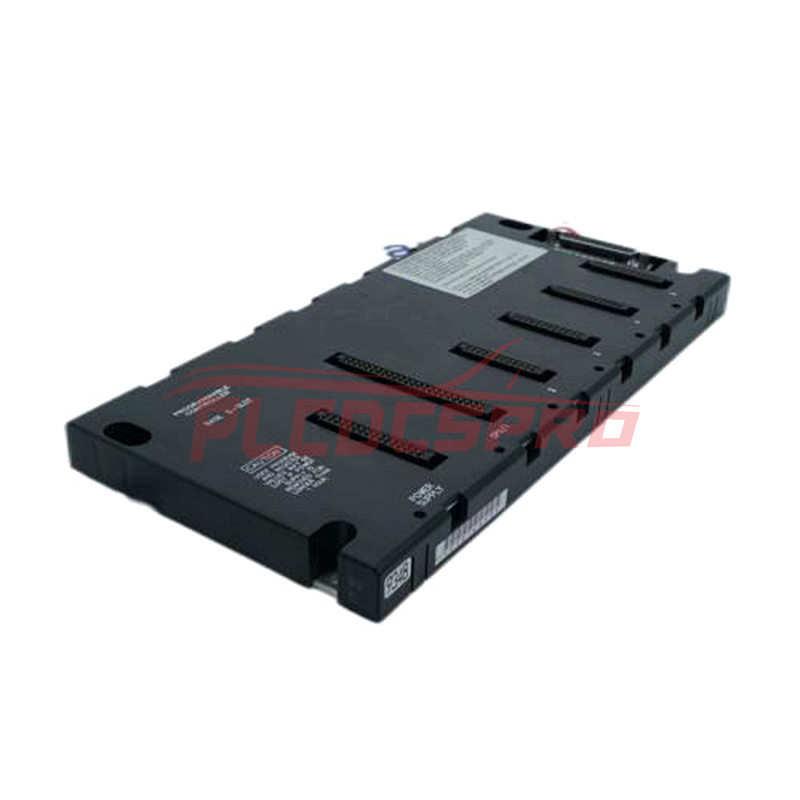

IC693CHS397 GE Fanuc 5-Slot Base Programmable Controller Module
Sku:IC693CHS397
Country Of Origin: USA
Vendor: GE
Type: Baseplate
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

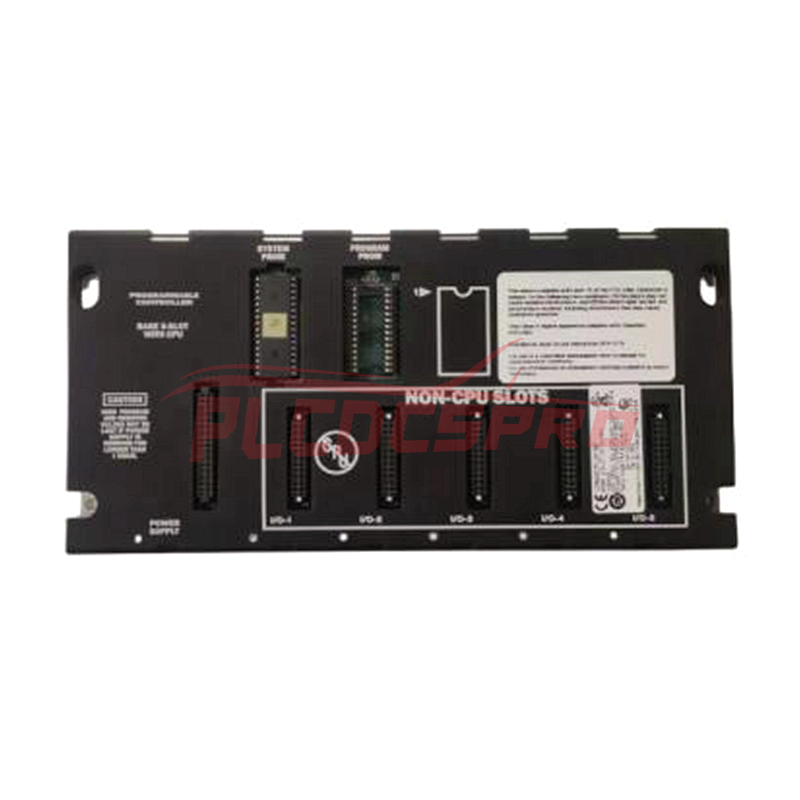

The GE Fanuc IC693CHS397 is a 5-slot modular CPU baseplate designed for the GE Series 90-30 PLC systems. This baseplate is the main component where the CPU, power supply, and other I/O modules are installed. It also supports expansion and remote baseplates, making it highly adaptable for various industrial control applications.
Features
Power Supply Slot: The leftmost slot is reserved for a power supply module. This slot is not numbered and only supports power supply units.
CPU/Option Slot: Slot 1 is designated for the CPU or a special option module, such as the FIP Remote I/O Scanner (IC693BEM330). It is labeled CPU/1.
I/O or Option Module Slots: Slots 2 through 4 support I/O or option modules, providing flexibility for system expansion.

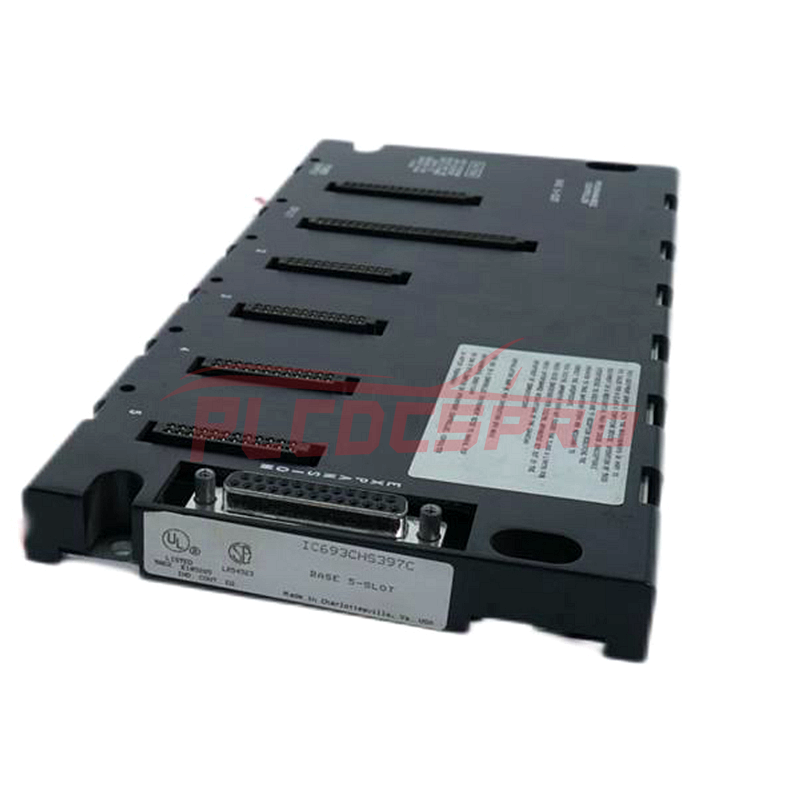

Expansion Capability: The baseplate includes a 25-pin D-type female connector at the right end for connecting to expansion or remote baseplates.
Modular CPU Design: The CPU can be replaced or upgraded, allowing users to add additional features if needed.
Rack Number Assignment: By default, the IC693CHS397 is assigned Rack Number 0 in the system.
Specifications
Module Type: CPU I/O Baseplate
Baseplate Type: Main (with CPU slot)
Number of Slots: 5 total (1 power supply, 1 CPU/option, and 3 I/O/option)
Dimensions: 10.43 inches (W) x 5.12 inches (H) x 5.59 inches (D)
Power Consumption: 270 mA @ 5 VDC
Additional Information
CPU Slot: Slot 1 is specifically designed for CPU or special option modules.
Expansion Connector: A 25-pin D-type connector is used to link the baseplate to an expansion or remote baseplate for larger system configurations.
System Limitation: Only one CPU baseplate can be used per system. Additional baseplates must be of the expansion or remote type.
Installation Notes
Power Supply Installation: Ensure the power supply module is securely installed in the leftmost slot.
Module Arrangement: Install the CPU or special option module in Slot 1 and any I/O or option modules in Slots 2 through 4.
Expansion Connections: For larger systems, use the expansion connector to link additional baseplates.
