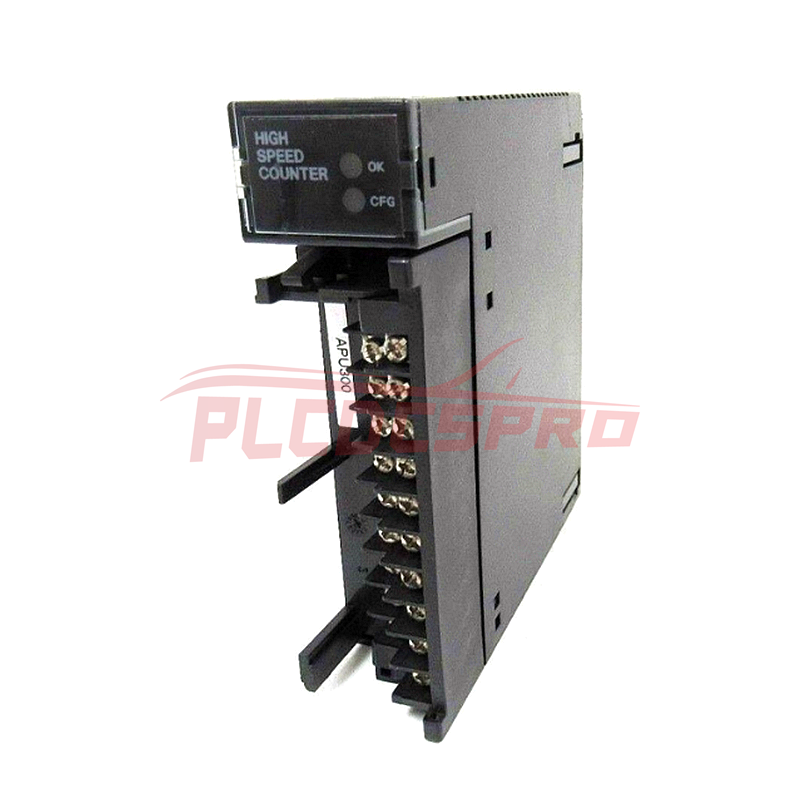

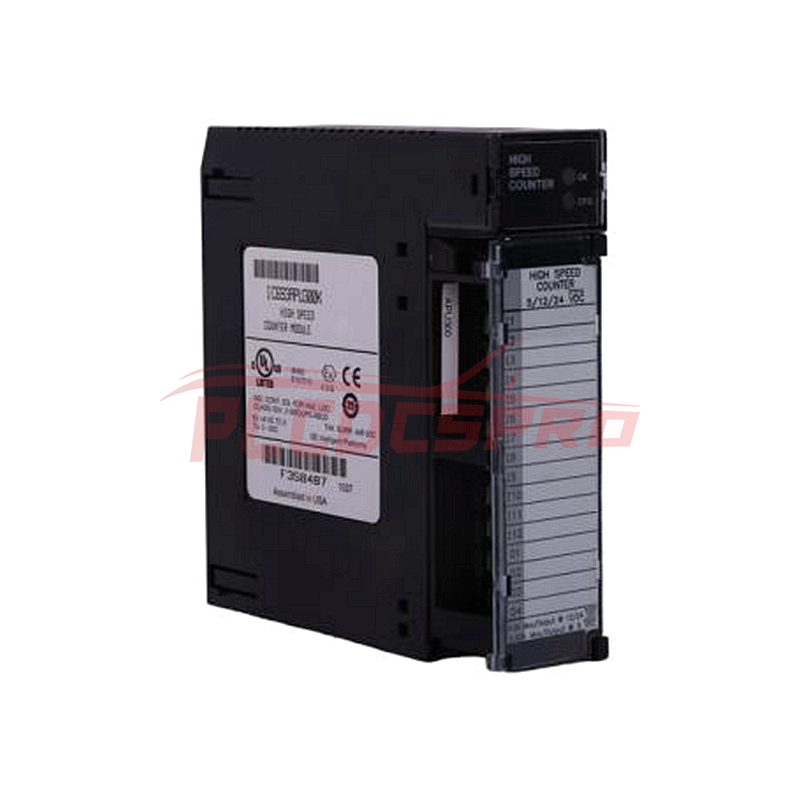

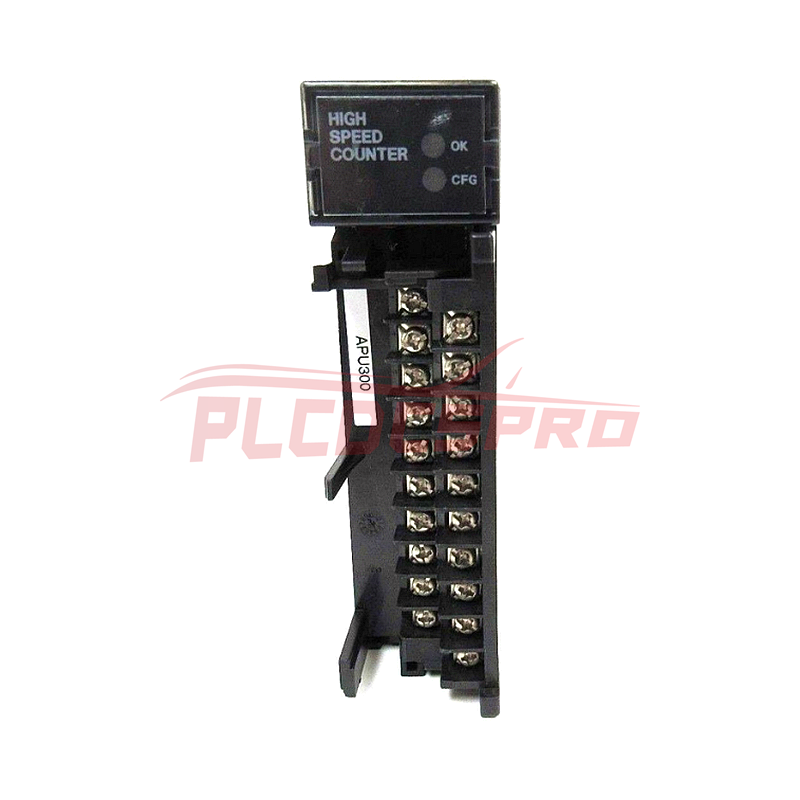

The IC693APU300 is a high-speed single slot counter module designed for the 90-30 series of PLCs by GE Fanuc. It is utilized in applications where pulse input rates exceed the PLC's capability or where a significant portion of the PLC's processing power is required.
Key Features:
High-Speed Counting: Capable of processing pulse signals up to 1 MHz, suitable for industrial applications such as material handling, meter proving, and velocity measurement.
Direct Processing: Allows detection, counting, and response to inputs without the need for CPU communication.
Versatile Configuration: Can count up, down, or both, and can calculate the difference between two variables. Offers configurations for 1 complex counter, 2 identical complex counters, or 4 identical independent simple counters.
Input and Output: Includes 12 positive source inputs with a voltage range of 5V DC or 10 to 30V DC, and 4 positive source outputs.
Enhanced Features: Operates in Classic or Enhanced mode, with Enhanced mode offering support for up to 1 MHz input frequency, 32-bit counters, configurable outputs, and firmware updates over the backplane.
Windowing Feature: Allows defining a range of counter accumulator values for valid input recognition.
Safety and Installation: Requires installation in an enclosure certified for Zone 2, Group IIC, and rated IP54 minimum. Use shielded cable for all connections, with a high-frequency ground within 6 inches of the module.
Technical Specifications:
Module Type: High-Speed Counter
Count Rate: High Frequency - Up to 80 kHz, Low Frequency - Up to 20 Hz
Input/Output Type: Positive Logic
Output Protection: 3 Amp Fuse for all points
Local Fast Inputs: 12 inputs with 5V DC or 10 to 30V DC
Power Consumption: 250 mA @ 5V DC
The GE Fanuc IC693APU300 High-Speed Counter Module offers robust counting capabilities for demanding industrial applications. With its high-speed processing, versatile configuration options, and enhanced features, it provides reliable performance in PLC systems within various industries.
