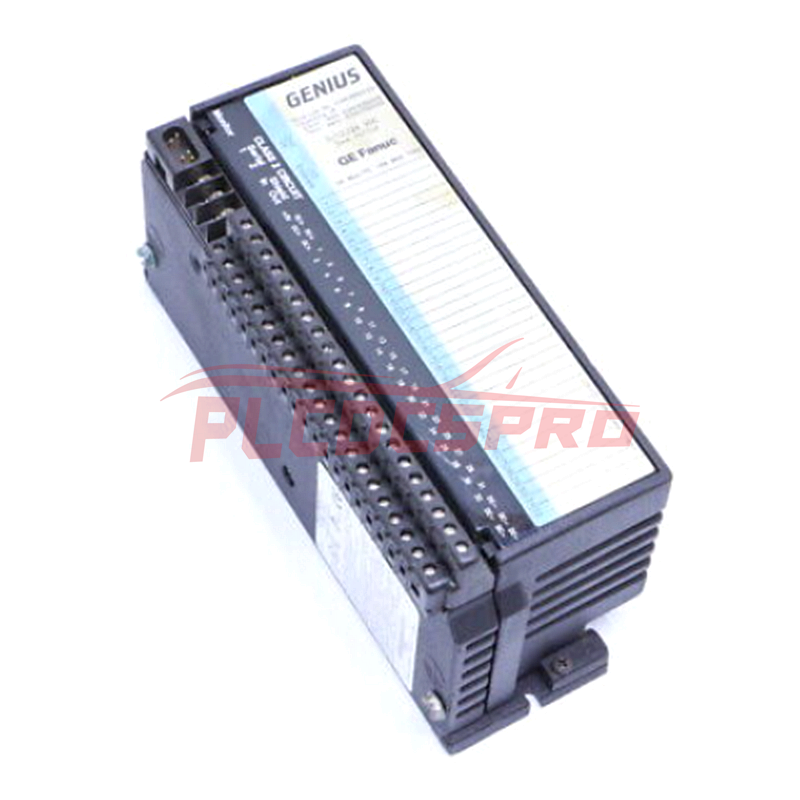

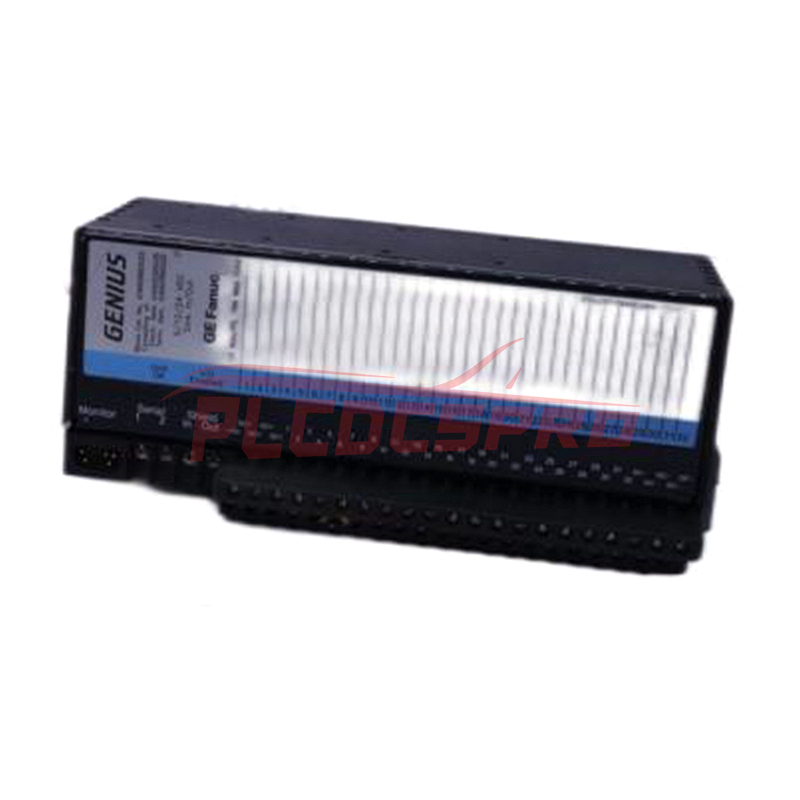

The IC660BBD025 is a versatile Genius I/O module used in distributed control systems. It features 32 configurable I/O circuits that can function as either inputs or outputs, supporting reliable communication with controllers over long distances.
Features
32 Sinking I/O Circuits configurable as inputs or outputs.
Wide Voltage Compatibility: Supports 5, 12, or 24 VDC input signals.
Input Signal Processing: 1.4 ms processing time with selectable filter times (1–100 ms).
Output Capabilities:
0.5 Amps per circuit.
Maximum inrush current of 4 Amps (up to 10 ms).
Total output current capacity: 16 Amps.
Advanced Diagnostics: Includes LED indicators for unit and I/O status, failed switch detection, and self-protection features.
Built-in Interfaces: Genius Bus communication terminal and Hand-Held Monitor (HHM) port for configuration.
Robust Design: Overload, short-circuit, and over-temperature protection.
Specifications
Voltage Rating: 5, 12, or 24 VDC
Input Voltage Range:
10–30 VDC (12/24 V nominal)
4.9–5.3 VDC (5 V nominal)
Current Ratings:
Load Current: 0.5 Amps per circuit
Inrush Current: 4 Amps (max, 10 ms duration)
Total Output Current: 16 Amps
Heat Dissipation:
11 Watts (8 inputs active)
18 Watts (32 inputs active)
Isolation Voltage: 850 Volts (block-to-block)
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 100°C
Humidity: 5–95% (non-condensing)
Dimensions (H x W x D): 22.4 cm x 9.1 cm x 11.9 cm
