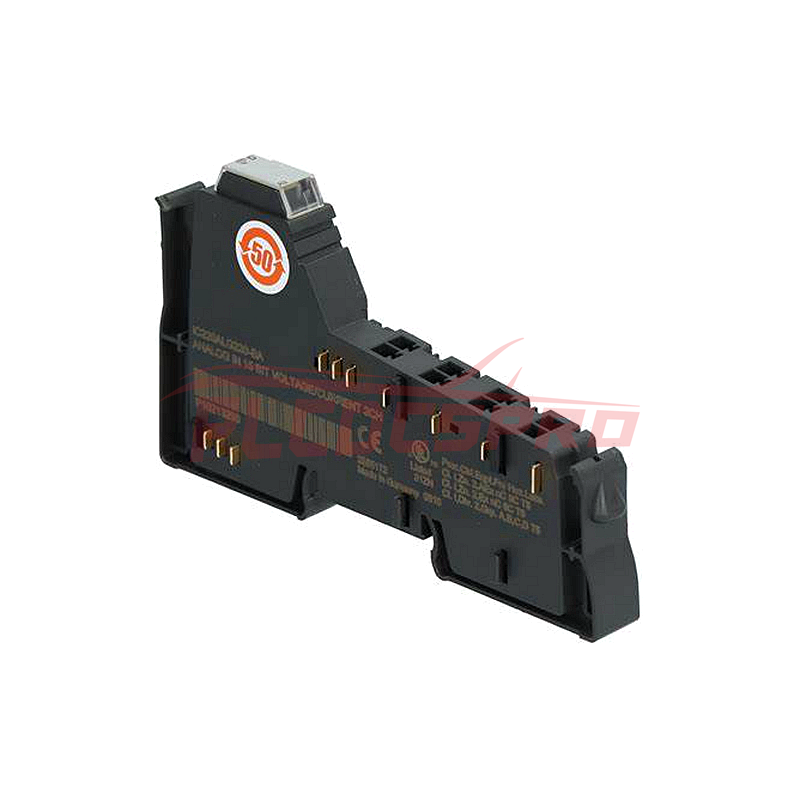

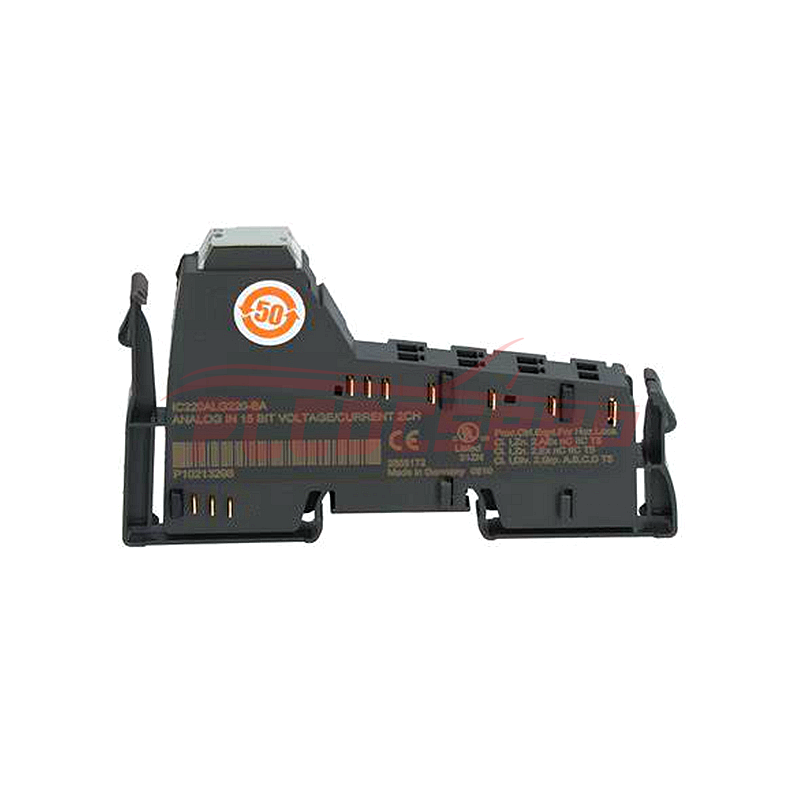

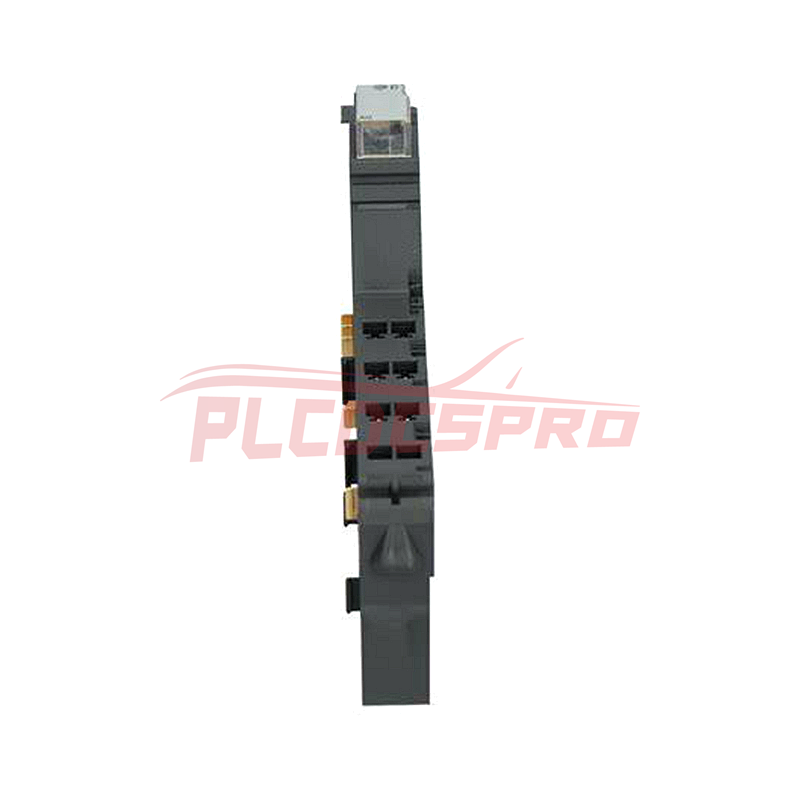

IC220ALG220 - GE Fanuc VersaPoint Analog Input Module
Sku:IC220ALG220
Country Of Origin: USA
Vendor: GE
Type: Analog Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: GE Fanuc
Product No.: IC220ALG220
The IC220ALG220 is an Analog Input Module integrated into the VersaMotion system by GE Fanuc Automation. This module is equipped with 2 channels for current input and is currently active in its product lifecycle.
Key Features
Analog Input Channels: Supports 2 channels for current input with a range of 0-20 mA, 2-20 mA, ±20 mA, 0-10 volts, and ±10 volts.
Connection Type: Utilizes a 2-wire shielded sensor cable connection.
Resolution: Offers 15-bit resolution for accurate analog signal processing.
Conversion Time: Fast conversion time of 120 microseconds with an update rate of less than 1.5 microseconds.
Input Resistance: Greater than 220 kΩ for voltage inputs and 50 Ω for current inputs.
Filter Frequency: Input filter limits frequency up to 40 Hz to ensure stable input signal processing.
Bus Diagnostics: Includes a Bus Diagnostics LED indicator for easy monitoring of module and bus status.
Module Configuration: Designed for integration into remote cabinets, with up to 5 IC220ALG220 modules per remote cabinet and 5 remote cabinets per control cabinet.
Maximum Cable Length: Supports a maximum cable length of 250 meters for flexible installation options.
Environmental Specifications:
Operating Temperature: -25°C to 55°C (-13°F to 131°F) to withstand varying environmental conditions.
Storage Temperature: -25°C to 85°C (-13°F to 185°F) for safe storage in non-operating conditions.
Operating Humidity: Operating humidity ranges from an average of 75% to a maximum of 85%.
Protection Rating: IP 20 according to IEC 60529, offering basic protection against solid objects and small amounts of moisture.
Safety Standards: Class 3 protection per VDE 0106 and IEC 60536 standards.
Power Requirements: Operates with external power supply for sensor power, consuming approximately 0.63 watts of power.
Technical Specifications
Dimensions: Compact housing with dimensions of 12.2 mm (width) x 120 mm (height) x 71.5 mm (depth), ensuring efficient use of cabinet space.
Current Consumption: Local Bus UL: 45 mA (typical), UANA: 15 mA.
Datasheet: Refer to GFK-1906 for detailed technical information and specifications.
The IC220ALG220 Analog Input Module delivers reliable performance and precise analog signal processing capabilities, making it suitable for diverse industrial applications within the VersaMotion system.
