IC200ALG264E | Analog Input Module | GE Fanuc VersaMax Series
Sku:IC200ALG264E
Country Of Origin: USA
Vendor: GE
Type: Analog Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

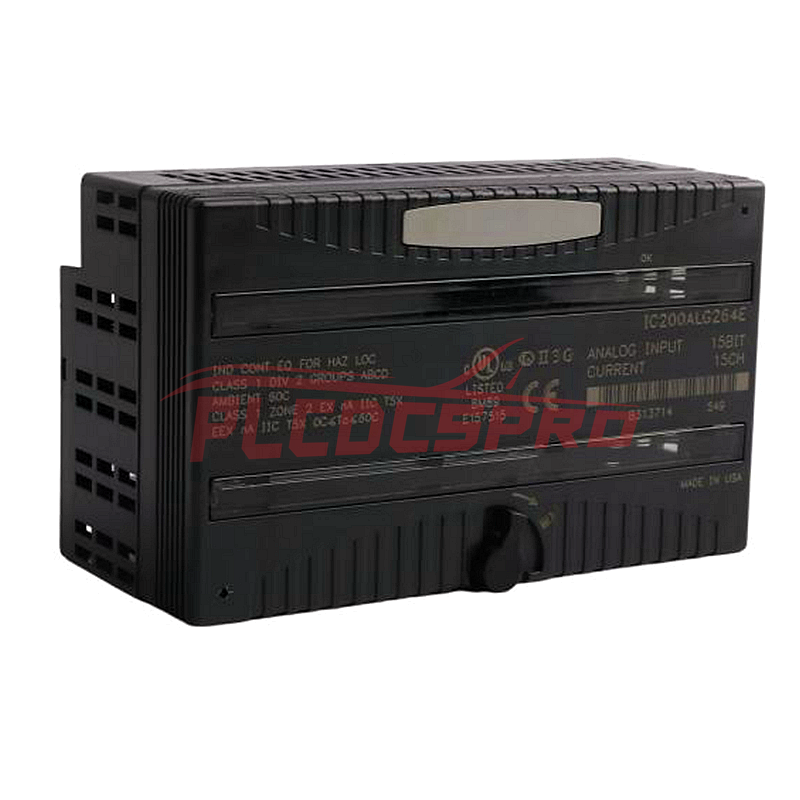

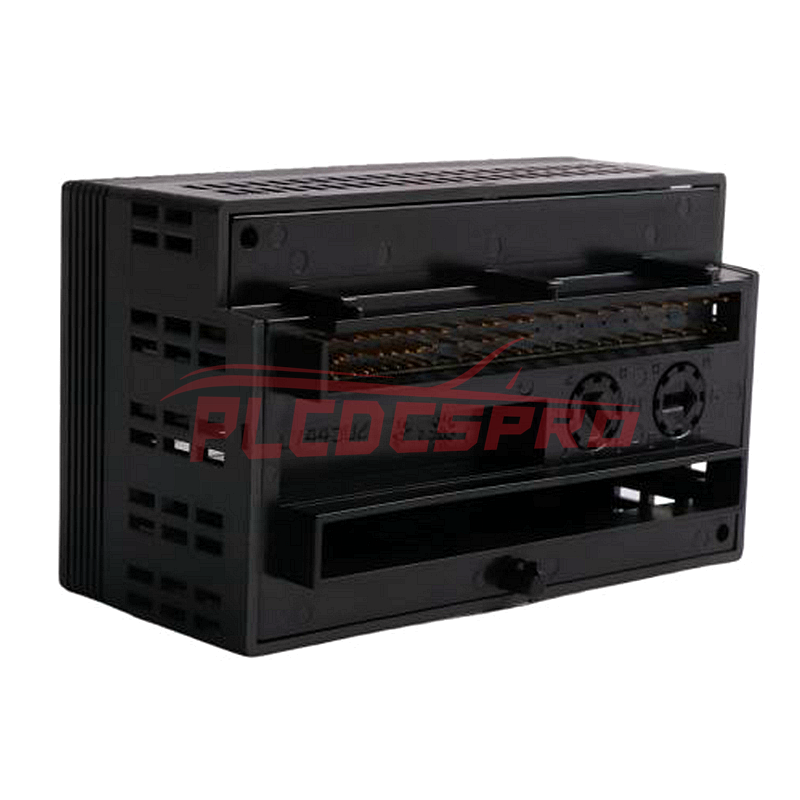

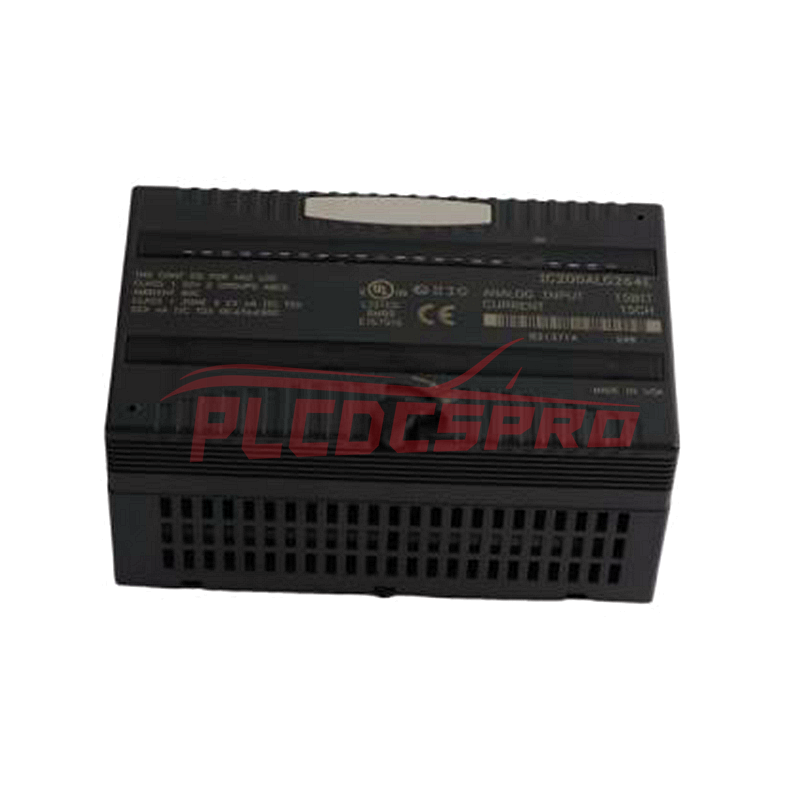

The IC200ALG264 is a 15-Channel Analog Input Module designed for the GE Fanuc VersaMax Series. It handles current inputs and is ideal for industrial environments requiring precise analog signal processing. The module receives power directly from the backplane, eliminating the need for an external power source for its operation.
Features
Input Channels: 15 single-ended channels, all sharing a common return.
Current Range: Configurable for 4-20 mA or 0-20 mA.
Power Supply: Powered by the backplane with no need for an external power source.
Resolution: Features a 15-bit converter resolution for accurate signal measurement.
Jumper Configurations: Allows selection between 4-20 mA and 0-20 mA input ranges via a jumper.
Technical Specifications
Series: VersaMax.
Manufacturer: GE Fanuc.
Power Consumption: 100 mA from the +5V bus.
Input Range:
4-20 mA (jumper not installed).
0-20 mA (jumper installed).
Update Rate: 7.5 ms.
Input Filter Response: 24 Hz ±20%.
Error Reporting:
Detects loss of internal power for field-side circuits.
Reports open wire error when in 4-20 mA mode.
LED Indicator: Green LED signals that backplane power is present and internal field power is functioning.
Additional Details
Default State Configuration: Software configurable to either hold the last state or revert to default upon power loss.
Wiring Recommendations: Use shielded twisted pair cables for analog channel connections, grounding the shield at the source device or the I/O module using an Auxiliary I/O Terminal.
Applications
The IC200ALG264 is suitable for process control, automation, and monitoring systems that require high-precision analog current input handling. Its robust design and error detection capabilities ensure reliable operation in demanding industrial settings.
