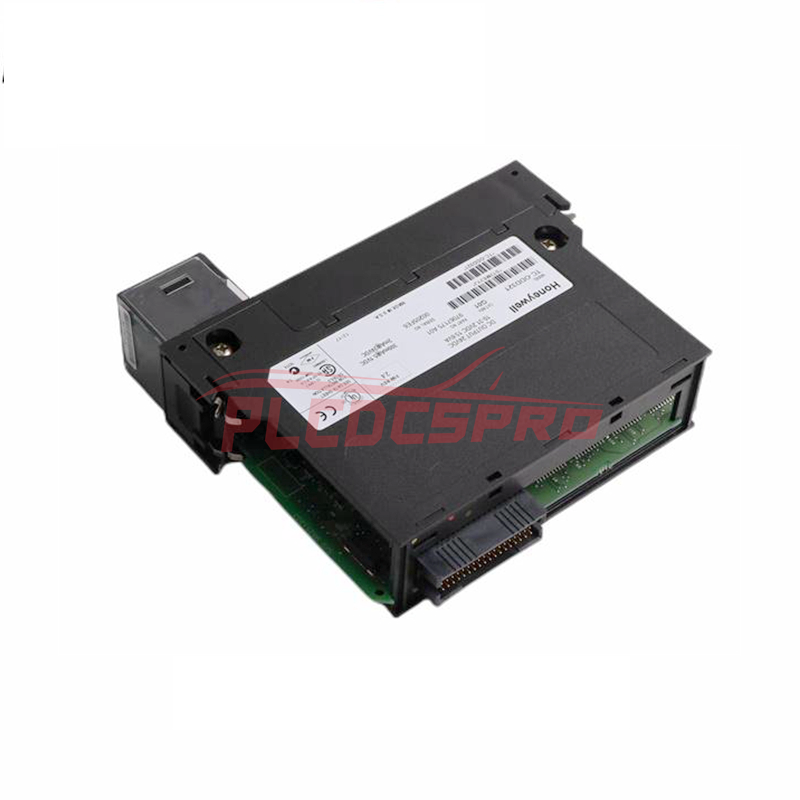

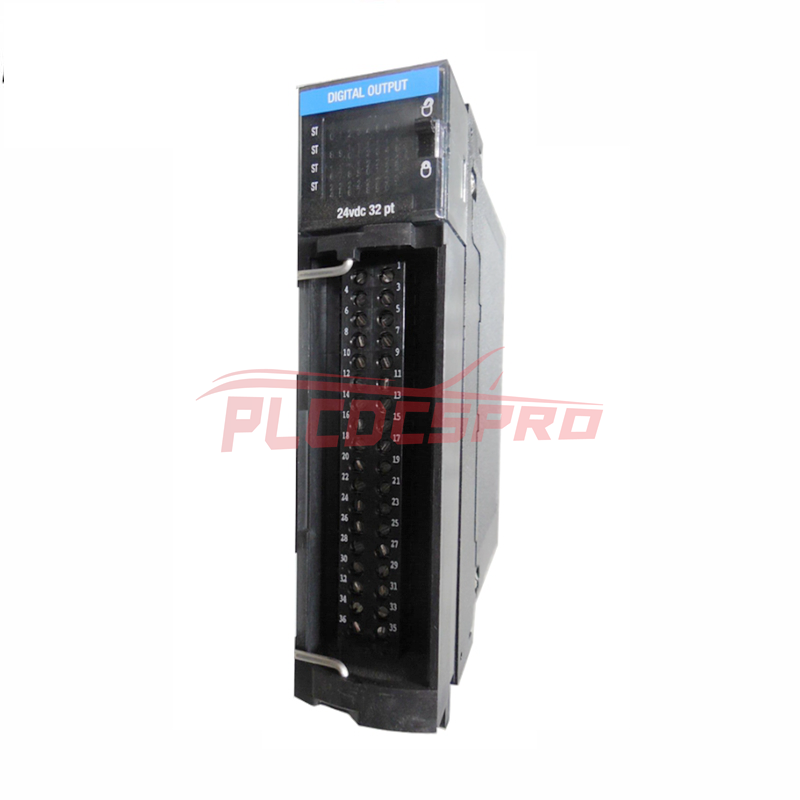

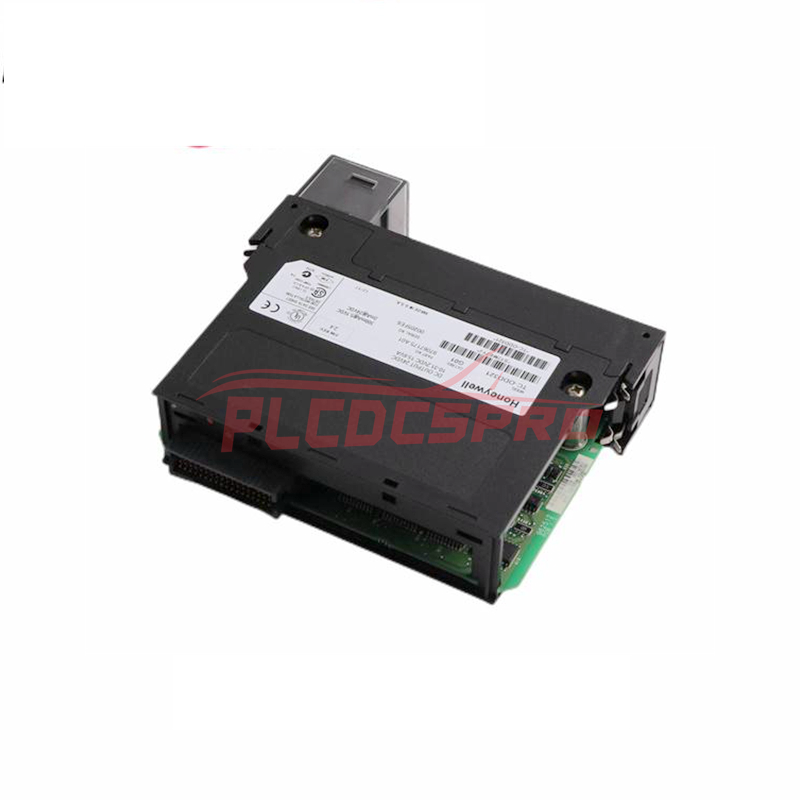

TC-ODD321, TK-ODD321 24 VDC, 32-Point Discrete Output Module
Parameter | Specification |
---|---|
Number of Outputs | 32 (16 points/common) |
Output Voltage Range |
10-31.2 VDC @ 50°C (Linear derating) 10-28 VDC @ 60°C |
Output Current Rating |
Per Point: 0.5A maximum @ 50°C (Linear derating) 0.35A maximum @ 60°C Per Module: 16A maximum @ 50°C (Linear derating) 10A maximum @ 60°C |
Surge Current | 1A for 10ms each, repeatable every 2s @ 60°C |
Flash On Time | 100 μsec target, 150 μsec max |
On-State Current Load (Minimum) | 3.0 mA per output |
On-State Voltage Drop (Maximum) | 1 VDC @ rated current per point (3 VDC for IEC 1131-2) |
Off-State Leakage Current (Maximum) |
0.5 mA per point (1 mA per point IEC 1131-2 for 0.25 A output) |
Configurable Fault States per Point | Hold Last State, ON or OFF (OFF is the default) |
Configurable States in Program Mode per Point | Hold Last State, ON or OFF (OFF is the default) |
Fusing | Not protected - Fused IFM is recommended to protect outputs |
Reverse Polarity Protection | None - If module is wired incorrectly, outputs may be damaged. |
Output Delay Time |
Off to on: 1.0 ms maximum On to off: 1.0 ms maximum |
Power Dissipation | 6.1 W |
Backplane Current | See Module Power Consumption Data, page 46. |
Isolation Voltage |
Group to group: 100% tested at 2546V dc for 1s (250V ac maximum continuous voltage between groups) User to system: 100% tested at 2546V dc for 1s |
Connection Terminal Blocks | TC-TBCH, 36-position terminal block |
Common spelling errors: TC-0DD321
