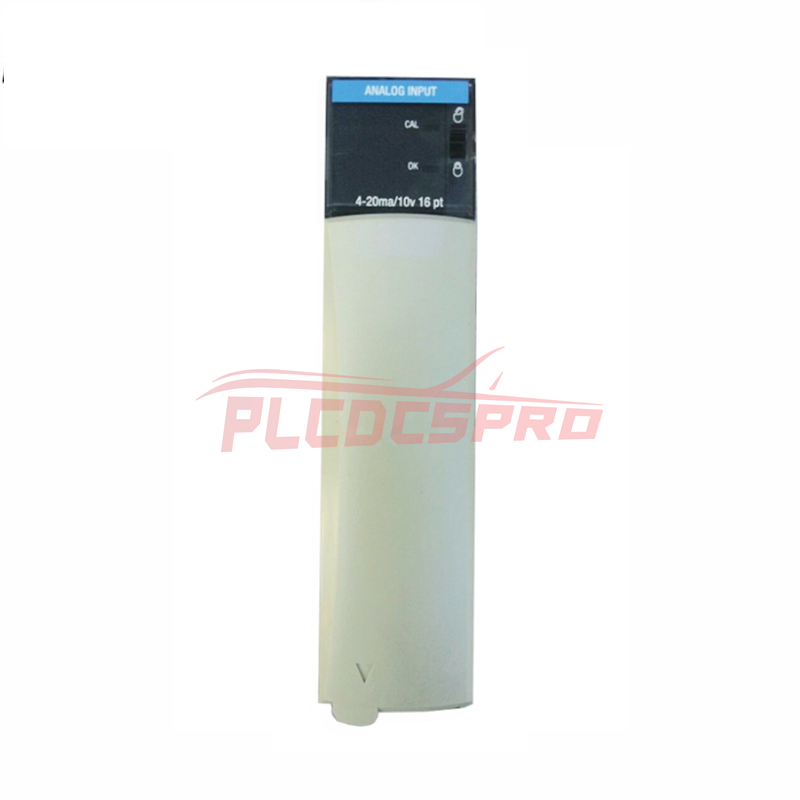

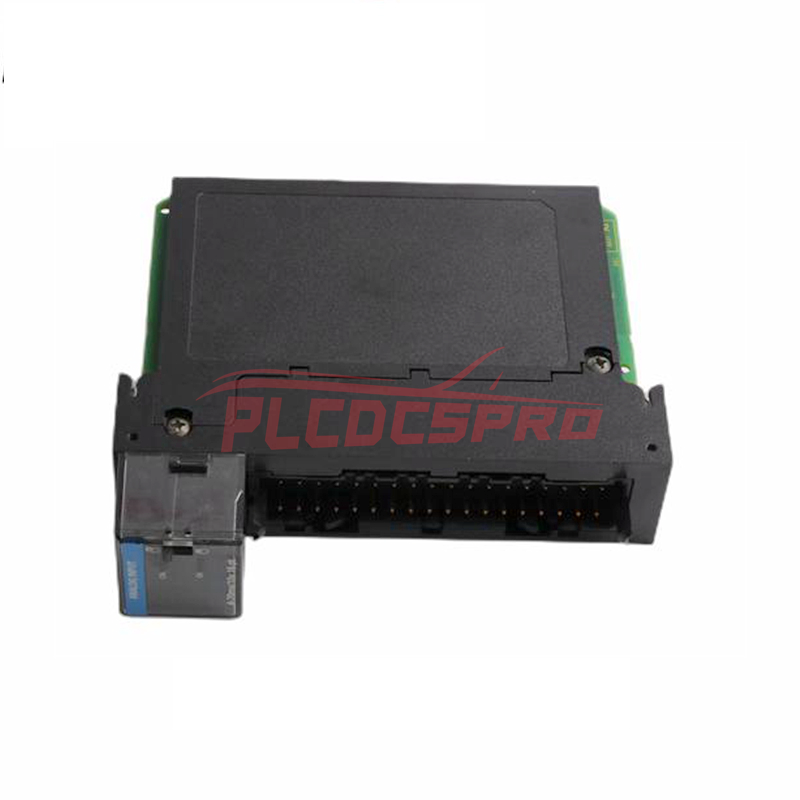

TC-IAH161, TK-IAH161 High Level Analog, 16-Input, Voltage and Current (10 V & 4-20 mA) Module:
Parameter | Specification |
Number of Points | 16 channels |
Input Voltage Range (Voltage) Input Current Range (Current) |
±10.5 volt range: 16 bits, 320 μV 0 to 10.5 volt range: 16 bits, 320 μV 0 to 5 volt range: 16 bits, 160 μV |
Voltage Resolution ± 10.5 volt range 0 to 10.5 volt range 0 to 5 volt range Current Resolution |
16 bits across each range shown below 320 μV 160 μV 80 μV 320 nA |
Module Publish Rate | 250 msec |
Input Impedance (Voltage) (Current) |
Greater than 1.0 MΩ 249 ohms Ω nominal |
Open Circuit Detection Typical OC Detection Time |
Voltage Even channels - Positive Full scale reading Odd channels – Negative Full scale reading Current – Negative Full scale reading less than 5 seconds |
Normal Mode Noise Rejection Common Mode Rejection |
Greater than 33 dB @ 50 Hz Greater than 60 dB @ 60 Hz 100 dB @ 50/60 Hz |
Channel Bandwidth | 20 Hz(-3dB) |
Calibrated Accuracy @ 25°C | Better than 0.05% of range (Voltage) Better than 0.15% of range including sense resistor (Current) |
RFI Immunity | Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz |
Overvoltage Capability | Continuous at room temperature (both) 30 VDC (Voltage) 8 VDC (Current) |
Input Offset Drift with Temperature | <90 μV/°C (Voltage) <360 nA/°C typical (Current) |
Gain Drift with Temperature | 15 ppm/°C (Voltage); 20 ppm/°C (Current) |
Module Error Over Full Temp. Range | 0.1% of range(Voltage) 0.3% of range(current) |
Power Dissipation | 4.1 W max |
Backplane Current |
TC, TK-IAH161 current draw @ 24vdc (amps) : 0.060, current draw @ 5vdc (amps) : 0.200, current draw @ 1.2vdc (amps): 0.005 |
Isolation Voltage User to system |
100% Tested at 2550VDC for 1s |
Connection Terminal Blocks | TC-TBCH, 36-position terminal block |
