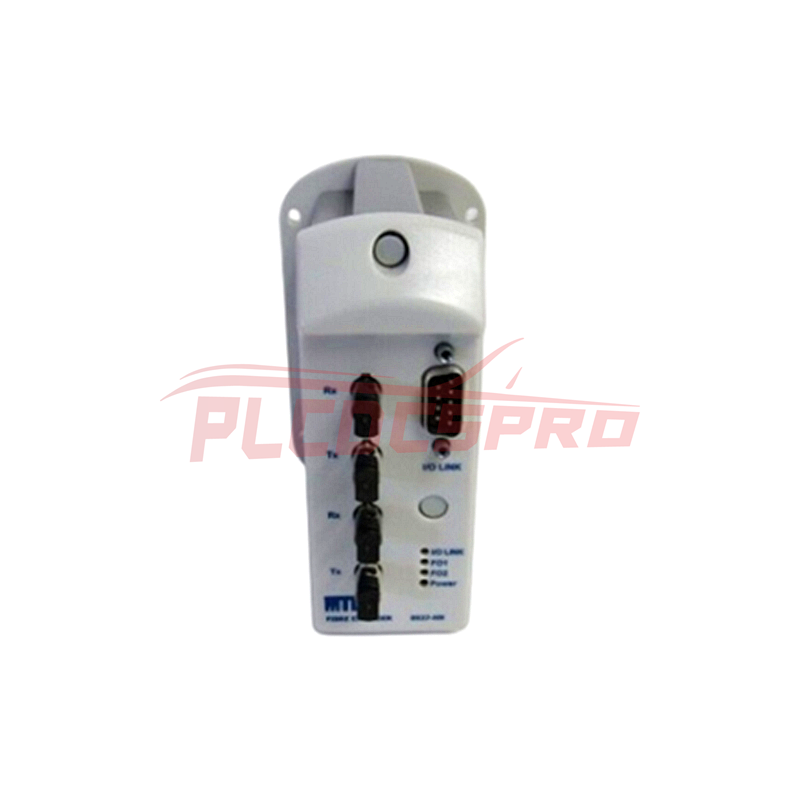

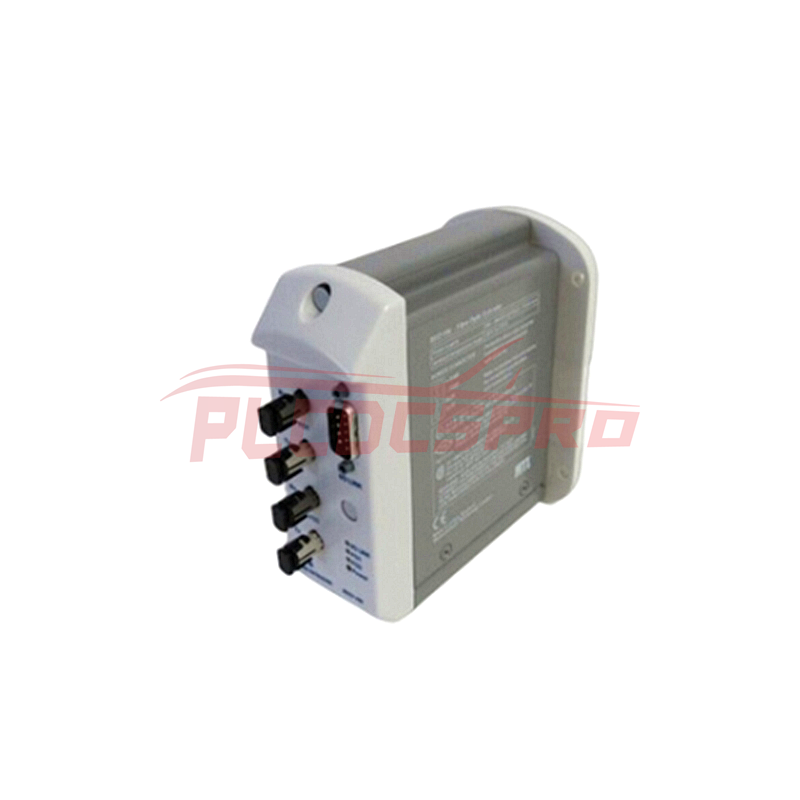

The 8937-HN2 Fiber Optic Extender Module is an industrial-grade fiber optic communication device manufactured by Honeywell. It is designed to connect Honeywell's CNI2 series I/O modules to controllers, providing reliable and stable data transmission over distances of up to 2 kilometers.
Features
Supports fiber optic transmission distance up to 2 kilometers
Compatible with CNI2 series I/O modules
Provides reliable and stable data transmission
Easy to install and use
Complies with IEC 61131-2 standard
Technical Specifications
Parameter
Value
Transmission Distance
2 kilometers
Fiber Type
Single mode
Wavelength
1310 nm
Data Rate
10 Mbps
Connector Type
SC
Power Supply
24 VDC
Power Consumption
2 W
Operating Temperature
-40°C to +70°C
Storage Temperature
-40°C to +85°C
Humidity
5% to 95% (non-condensing)
Protection Rating
IP67
Dimensions
165 mm x 75 mm x 120 mm
Weight
0.53 kg
Dimensions and Weight
The 8937-HN2 Fiber Optic Extender Module measures 165 mm x 75 mm x 120 mm and weighs 0.53 kg. Its compact design facilitates easy installation in industrial environments.
Applications
The 8937-HN2 Fiber Optic Extender Module is suitable for the following applications:
Connecting CNI2 series I/O modules to controllers
Installing I/O modules in harsh environments
Extending the transmission distance of I/O modules
