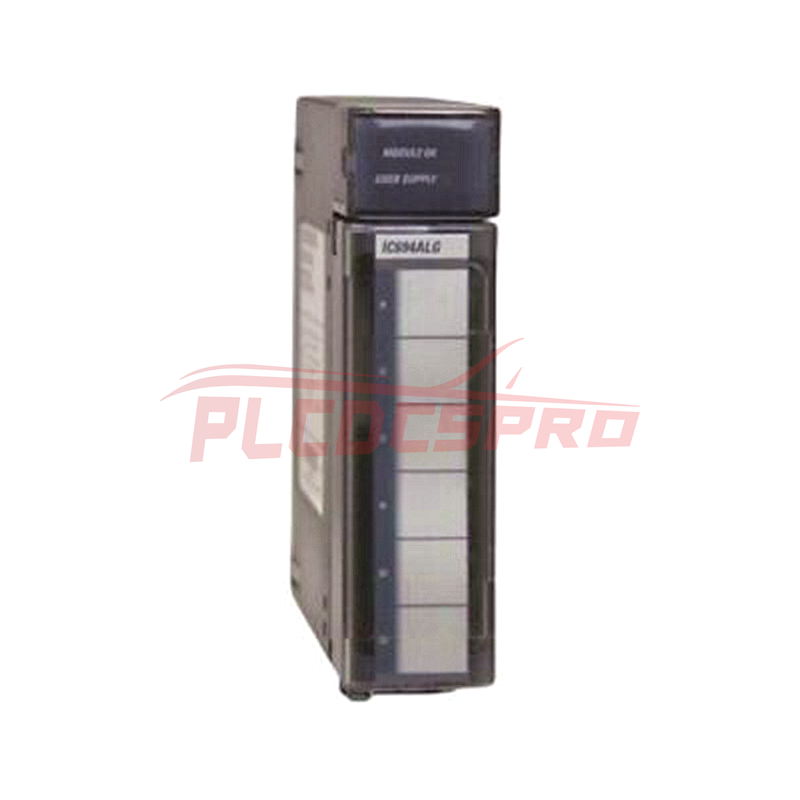

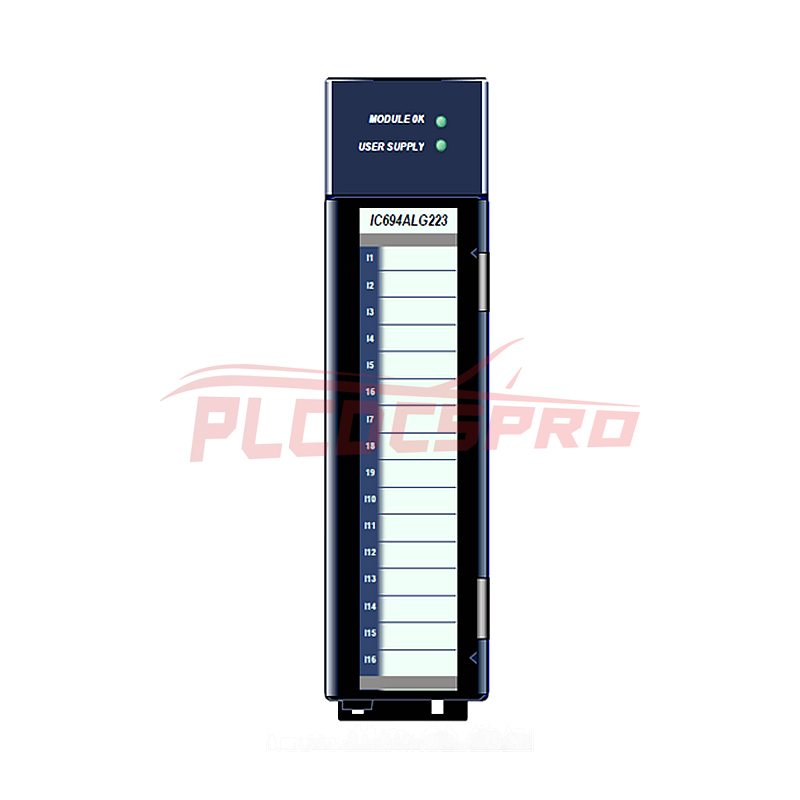

General Electric IC694ALG223A Fanuc Analog Input Module
Sku:IC694ALG223A
Country Of Origin: USA
Vendor: GE
Type: Analog Input
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: GE
Product No.: IC694ALG223A
The IC694ALG223 is an Analog Current Input Module with 16 channels/single-ended inputs, designed for the GE Fanuc RX3i PACSystem series. Each input can be configured for three input ranges: 4 to 20 mA, 0 to 20 mA, or 4 to 20 mA Enhanced. Alarm limits are available in high and/or low on all ranges.
Technical Specifications:
Number of Channels: 16 single-ended
Current Range: 4 - 20 mA, 0 - 20 mA, 4 - 20 mA
Calibration: Factory (to 4 μA or 5 μA per count)
Update Rate: 13 msec
Input Filter Response: 200 Hz
Power Consumption: 120 mA @ +5VDC, 65 mA @ +24VDC Isolated
Key Features:
Converts analog current signals from industrial transmitters/transducers into digital data for the RX3i PLC.
Configurable for common current ranges: 4-20 mA, 0-20 mA, or 4-20 mA Enhanced.
Simple installation requiring only one available I/O slot in the RX3i PLC.
Draws 5 Volts DC operation voltage from the PLC and requires an external 24 Volts DC power source for input circuits.
Offers 16 independent analog current inputs, user-programmable for various parameters such as alarm limits, channel activation, and I/O scan settings.
Operating temperature range: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
The GE Fanuc IC694ALG223 RX3i Analog Current Input Module is an essential component for industrial automation, ensuring accurate and reliable conversion of analog signals for seamless integration into the RX3i PLC system.
