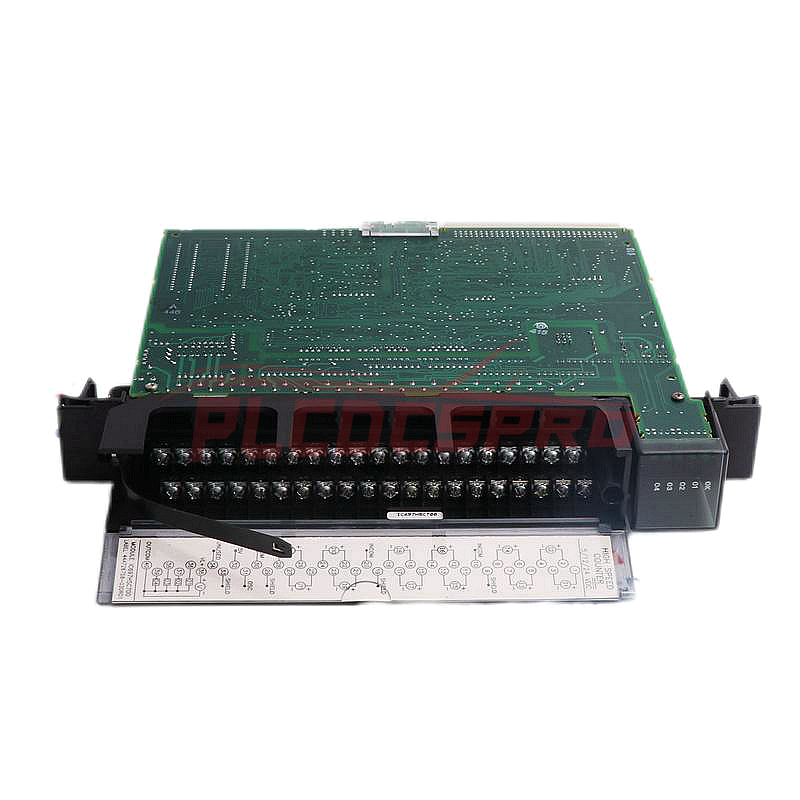

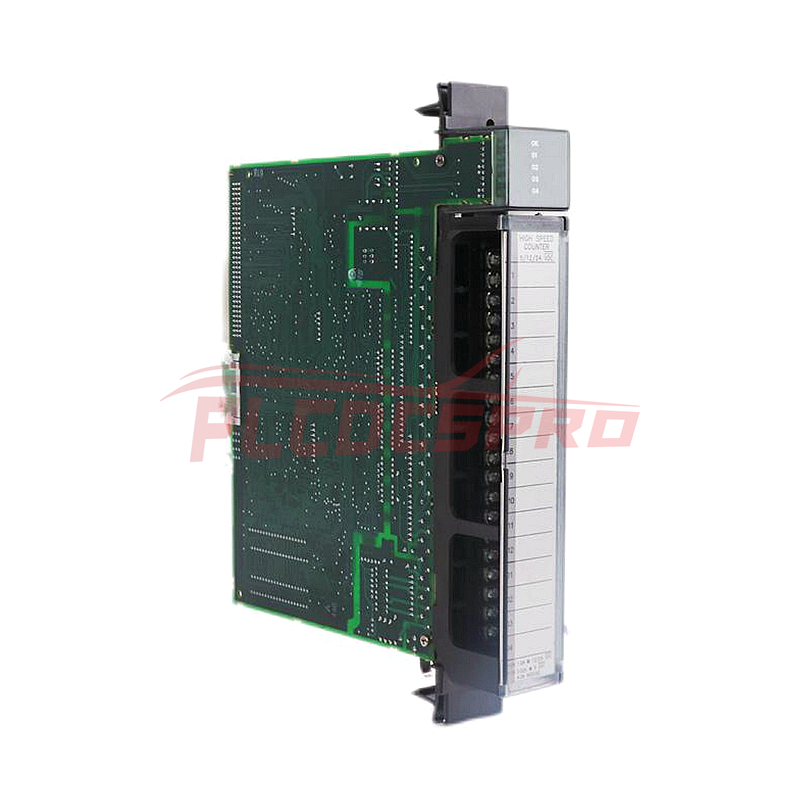

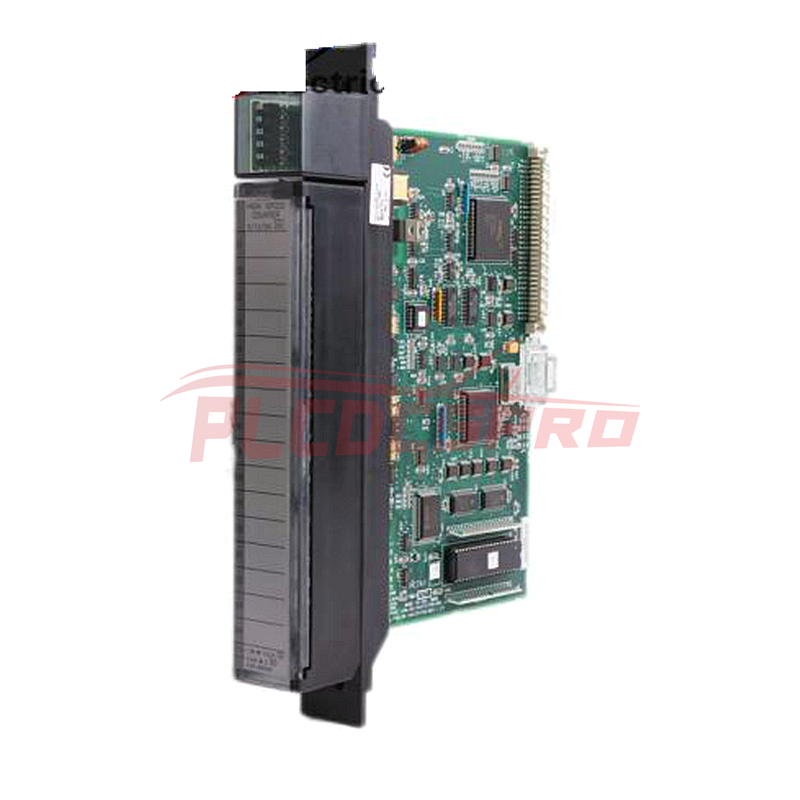

GE Fanuc IC697HSC700 High Speed Counter Card Circuit Board New
Sku:IC697HSC700
Country Of Origin: USA
Vendor: GE
Type: High-Speed Counter
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The IC697HSC700 is a High-Speed Counter (HSC) Module designed for the GE Fanuc 90-70 series PLCs. This module is specifically engineered to handle rapid pulse signals directly, making it ideal for applications requiring precise counting and control.
Key Features
Single-Slot Design: Occupies a single slot in the rack, conserving space in the system setup.
Counter Types: Supports five selectable counter types (A, B, C, D, E) tailored for different counting requirements.
Input Options: Offers 12 inputs configurable as single-ended or differential, supporting TTL, non-TTL, and magnetic pickup input thresholds.
Output Configuration: Includes four positive logic outputs with LEDs for status indication.
Built-in Features: Features an external oscillator and a built-in +5 VDC output for enhanced functionality.
Compatibility and Configuration: Configured via MS-DOS or Windows using Ethernet TCP/IP or SNP port, leveraging the existing configuration function on compatible PCs.
Technical Specifications
Operating Voltage: 5 VDC (from backplane), ensuring compatibility with standard PLC setups.
Current Requirements: Module current drain of 1A + (10 mA × number of ON outputs) + (1.6 × encoder current), optimizing power consumption.
Maximum Count Rates: Capable of handling up to 200 KHz for Types A-D and up to 800 KHz for Type E in A Quad B mode, facilitating high-speed operations.
Input and Output Isolation: Provides robust isolation with peak isolation voltages of 1500 volts (1 second) and steady state isolation up to 30 V AC/DC.
Input Characteristics: Supports various input types with specific thresholds and impedance characteristics, ensuring versatility across different industrial environments.
Output Specifications: Offers positive logic, optically isolated outputs with a maximum supply voltage of 30.0 VDC and specific current handling capabilities depending on the power supply voltage.
Applications
The IC697HSC700 module is well-suited for a range of industrial applications including turbine flowmeter monitoring, velocity measurement, material handling, and motion/process control. Its straightforward PLC interface and high-speed counting capabilities make it a reliable choice for demanding operational environments.
