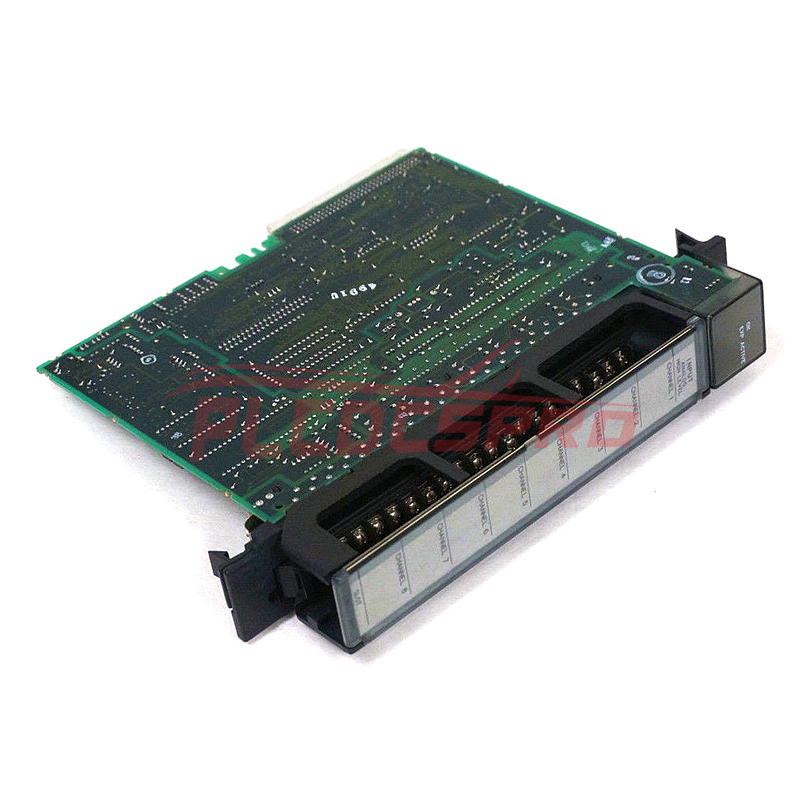

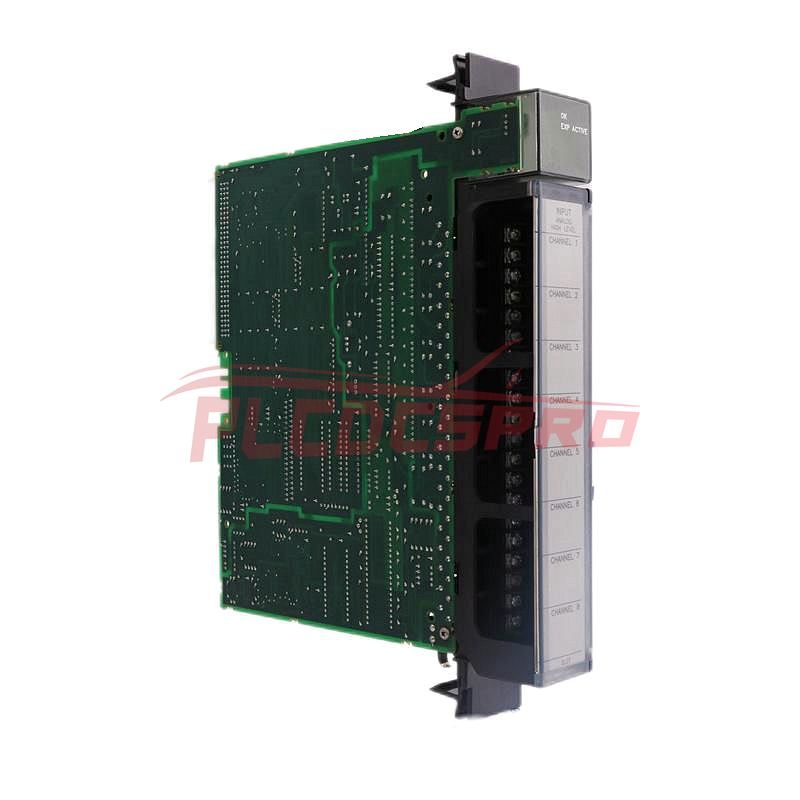

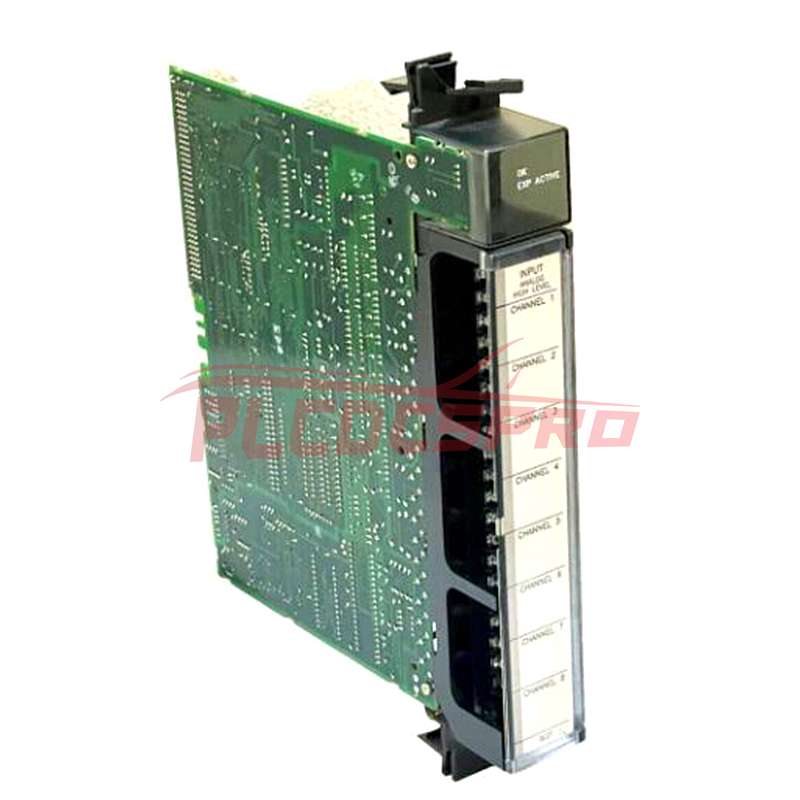

GE Fanuc IC697ALG230 Analog Input Module Base Converter Module
Sku:IC697ALG230
Country Of Origin: USA
Vendor: GE
Type: Base Converter
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The IC697ALG230 is a Base Converter Module from the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) platform. It offers eight (8) differential analog inputs, configurable for both current and voltage signals, making it ideal for high-level analog systems. This module is equipped with Analog-Digital Conversion (ADC) and supports expander modules to extend input capacity.
Features
Analog Inputs: Eight (8) differential inputs
Signal Types: 4-20 mA, -10 VDC / +10 VDC
Input Resolution: 16-bit
Input Range:
Voltage: -10 to +10 VDC
Current: 4 to 20 mA
Wiring Configuration: Differential wiring
Response Time:
5.0%: 30 ms
0.1%: 67 ms
Update Rate: 2.4 ms to 2.8 ms
Calibration: Factory set at 10 V ± 2 mV
Technical Specifications
Input Channels: 8 analog inputs
Maximum Inputs (with Expander): 120 inputs (with up to 7 expander modules)
Accuracy:
Voltage: ±0.01% of full scale, ±0.02% of value
Current: ±0.05% of full scale, ±0.1% of value
Linearity: ±0.02% of full scale over entire range
Temperature Coefficient:
±5 PPM/°C typical, ±15 PPM/°C maximum for voltage
±30 PPM/°C maximum for current
Power Requirements: 0.8 A (4 W) at +5 VDC
Terminals: 40-pin removable terminal block
Installation and Compatibility
Expander Modules Supported:
IC697ALG440: Voltage Expander Module
IC697ALG441: Current Expander Module
Max Expanders: Supports up to 7 expander modules to handle up to 120 inputs
Input Isolation: Opto-isolation for module-to-PLC backplane protection
Connector Block: Removable 40-terminal block for easy wiring
Environmental Specifications
Temperature Coefficient:
Voltage: ±5 PPM per °C typical, ±15 PPM per °C maximum
