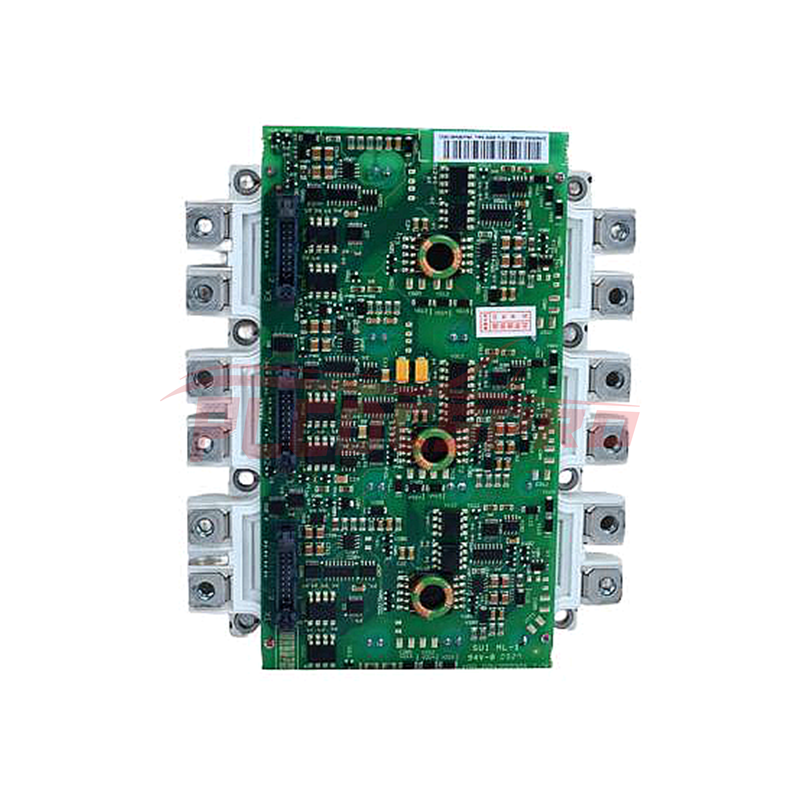

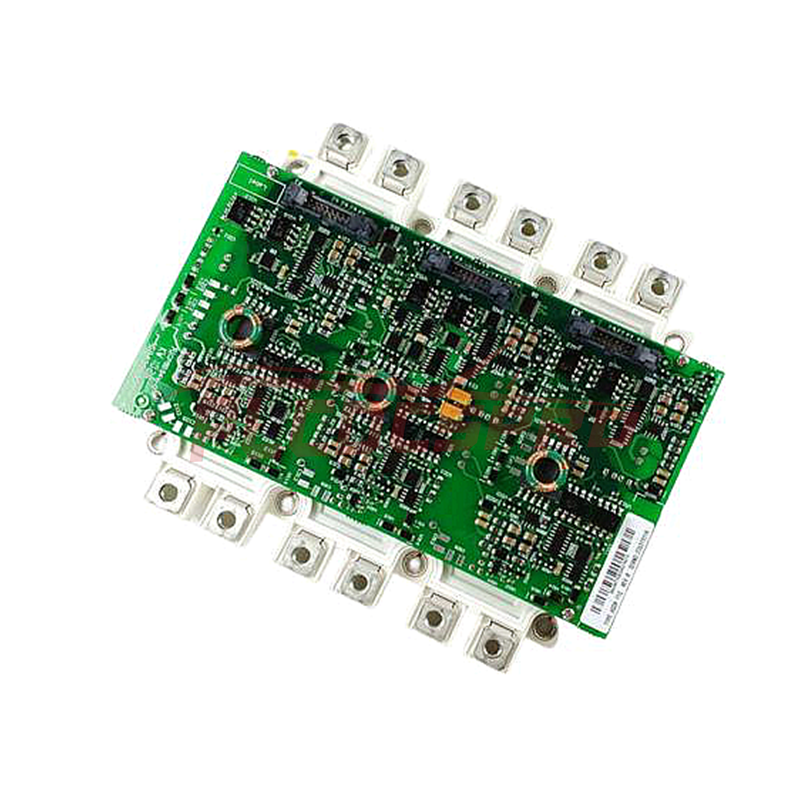

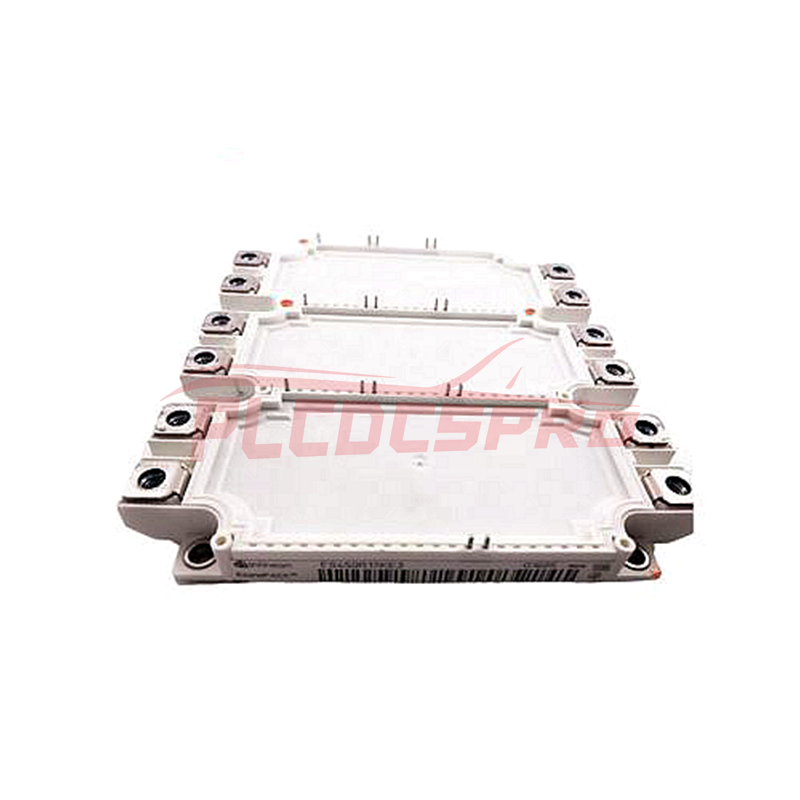

ABB FS450R17KE3/AGDR-61C S: IGBT Module for Medium and High Power Inverter Applications
Parameter | Value | Unit |
---|---|---|
Rated Current | 450 | A |
Rated Voltage | 1700 | V |
Peak Current | 600 | A |
Peak Voltage | 1900 | V |
Switching Frequency | Up to 20 | kHz |
Short Circuit Withstand Capability | 10 | kA |
Operating Temperature | -25 to 155 | °C |
Package | TO-247 | - |
Weight | Approx. 1.2 | kg |
Parameter | Value | Unit | Test Conditions |
---|---|---|---|
On-state loss | 220 | W | Tj = 25°C, Vce = 850V, Ic = 225A |
Turn-on switching loss | 120 | μJ | Tj = 25°C, Vce = 850V, Ic = 225A, di/dt = 1000A/μs |
Turn-off switching loss | 150 | μJ | Tj = 25°C, Vce = 850V, Ic = 225A, di/dt = 1000A/μs |
Reverse recovery loss | 40 | μJ | Tj = 25°C, Vce = 850V, Ic = 225A, di/dt = 1000A/μs |
Leakage current | 10 | mA | Tj = 25°C, Vce = 1700V |
Parameter | Value | Unit |
---|---|---|
Dimensions | 100 x 76 x 30 | mm |
Weight | Approx. 1.2 | kg |
Mounting method | Screw mounting | - |
Cooling method | Natural or forced air cooling | - |
The ABB FS450R17KE3/AGDR-61C S has undergone rigorous reliability testing and has a mean time between failures (MTBF) greater than 100,000 hours.
The ABB FS450R17KE3/AGDR-61C S should be operated within its rated conditions. Please carefully review the user manual before utilizing the module.
