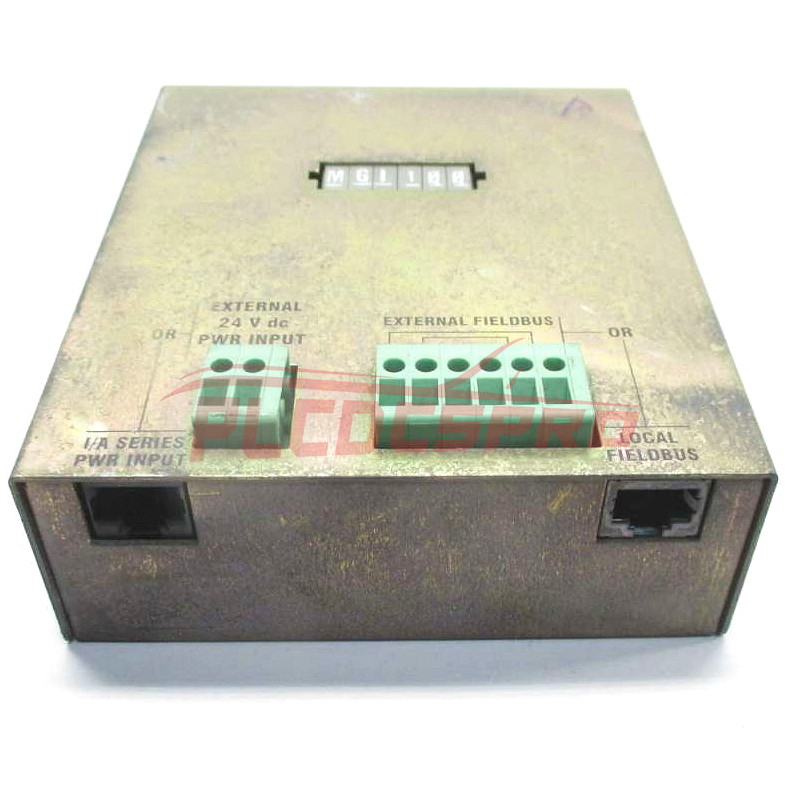

Foxboro DCM10E P0926DJ Fieldbus Communication Module
Sku:DCM10E P0926DJ
Country Of Origin: USA
Vendor: Invensys System
Type: Fieldbus Communication
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Foxboro DCM10E P0926DJ is a DIN Fieldbus Converter Module designed for use in Foxboro I/A Series distributed control systems (DCS). It facilitates communication between the Control Processor 60 (CP60) and connected devices, such as Y-Module form factor FBMs and migration modules, by converting Ethernet signals to HDLC signals.
Features
Type: DIN Fieldbus Converter Module
Signal Conversion: Converts 10 Mbps Ethernet signals to 268.75 kbps HDLC signals
Compatibility: Supports Y-Module form factor FBMs and migration modules
Redundancy: Can be configured in pairs for redundant operation
Diagnostics: Equipped with LEDs for transmit, receive, and fail status indications
Durability: Rugged design for industrial environments
Functional Specifications
Input Power
Supplied from Power Distribution Unit (P0904AU):
Voltage: 26 V DC to 42 V DC (nominal)
Current: 250 mA (maximum)
Consumption: 6.5 W (maximum)
Battery Backup Operation (Requires IPM 6 Unit):
Voltage: 15 V DC to 19.5 V DC (nominal)
Current: 30 mA + load current, 200 mA (maximum)
Supplied from External 24 V DC:
Voltage: 24 V DC ± 15%
Current: 300 mA (maximum)
Consumption: 6.5 W (maximum)
Environmental Specifications
Operating Conditions:
Temperature: 0°C to 60°C (32°F to 140°F) (Forced air cooling required above 50°C ambient*)
Relative Humidity: 5% to 95% (non-condensing)
Storage Conditions:
Temperature: -40°C to +70°C (-40°F to +158°F)
Relative Humidity: 5% to 95% (non-condensing)
Contamination Class:
Class G1 (defined by ISA Standard S71.04)
Mechanical Vibration:
Range: 0.5 g at 5 to 500 Hz
Regulatory Compliance:
Standards: Compliant with European EMC Directive 89/336/EEC
Physical Specifications

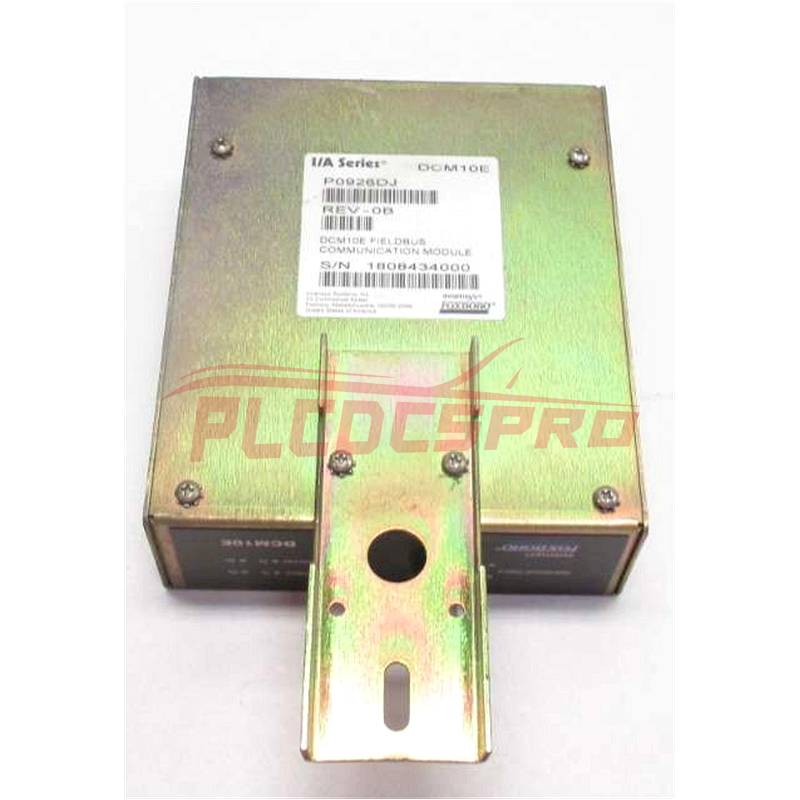

Mounting:
The DCM10E and DCM10EF modules can be mounted horizontally or vertically on a DIN rail.
Mass:
795 g (28 oz) (approximate).
Dimensions:
Height: 38 mm (1.53 in).
Width: 111 mm (4.34 in).
Depth: 186 mm (7.25 in).

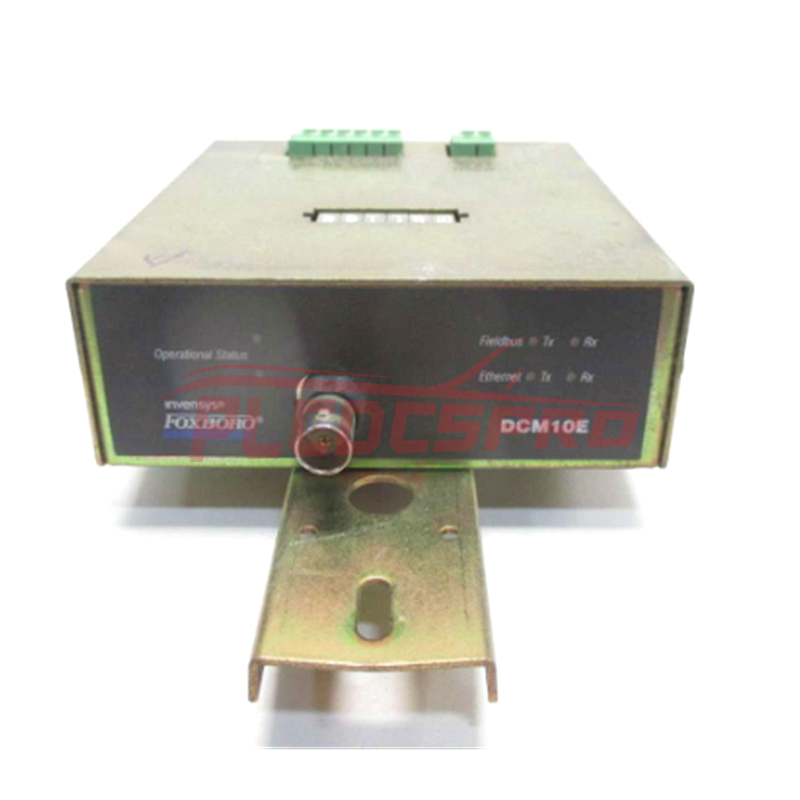

Indicators (Front of Module):
Operational Indicators:
Active: Green LED.
Fault: Red LED.
Network Indicators:
Fieldbus TX/RX (268 kbps): Yellow LEDs for TX (Transmit) and RX (Receive).
Ethernet TX/RX (10 Mbps): Yellow LEDs for TX (Transmit) and RX (Receive).
