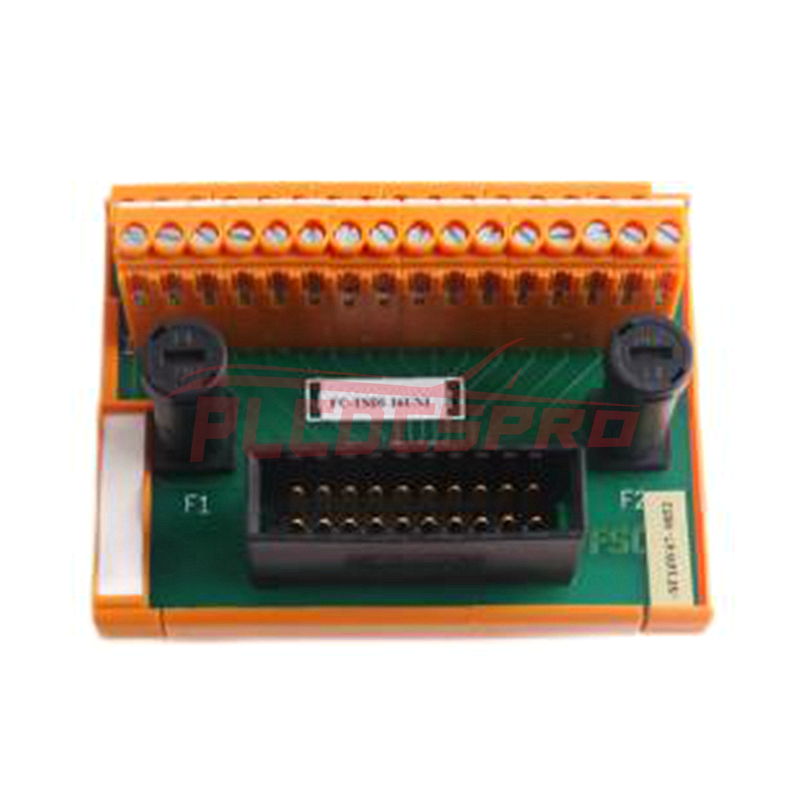

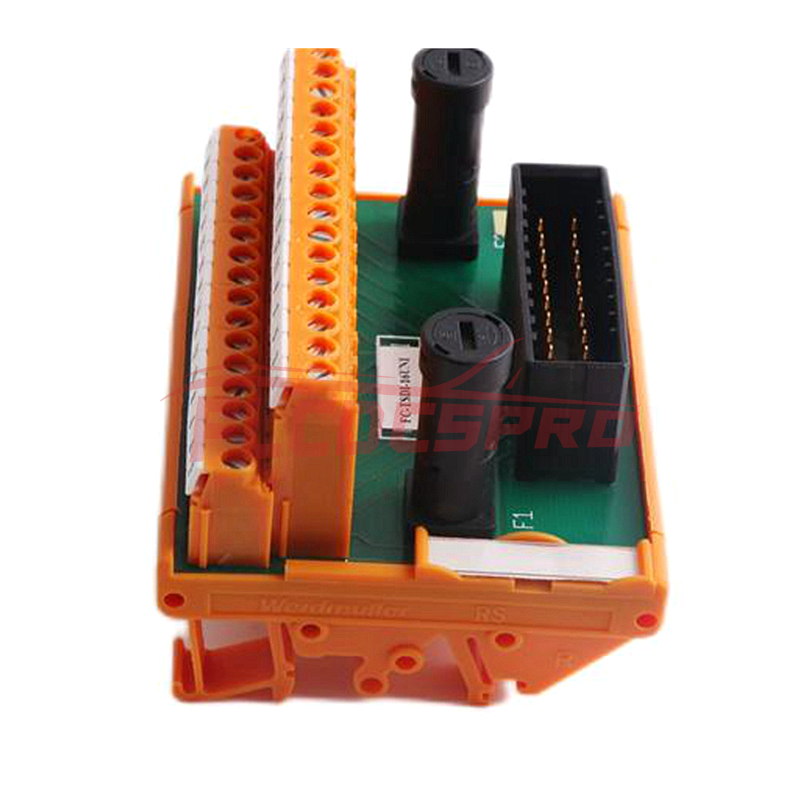

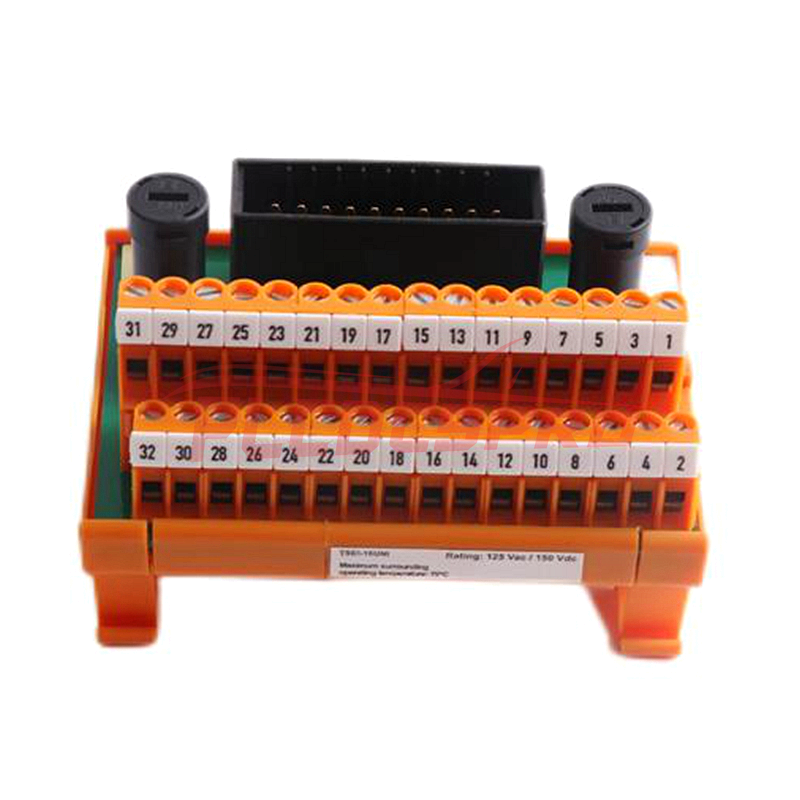

FC-TSDI-16UNI Honeywell Safe Digital Input Terminal Board
Sku:FC-TSDI-16UNI
Country Of Origin: USA
Vendor: Honeywell
Type: FTA
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The FC-TSDI-16UNI is a Safe Digital Input Field Termination Assembly (FTA) designed for use in industrial automation systems. This module provides a safe and reliable interface between the system interconnection cable (SICC-0001/Lx) and external field wiring. It is specifically designed for use with digital inputs, including NAMUR sensors, operating at 24/48 V DC.
Specifications
Model: FC-TSDI-16UNI
Number of Channels: 16 (organized into 2 groups of 8 channels each)
Maximum Voltage:
50 V DC (IEC 61010-1, overvoltage category 3)
150 V DC (IEC 61010-1, overvoltage category 2)
Fuse Rating: 250 mA (Fuse dimensions: 5x20 mm, voltage rating: 400 V AC/DC)
Fuse Manufacturer Part Number: SHV12 250 mA (SOC)
Fuse Maximum Output Current per Fuse: 175 mA
Module Dimensions: 90 mm x 70 mm x 60 mm (3.54 in x 2.76 in x 2.36 in)
DIN Rail Compatibility: TS32 / TS35 x 7.5, used rail length: 91 mm (3.58 in)
Field Termination Interface: Allows seamless connection between system interconnection cables and field wiring, ensuring reliable data transmission between external field devices and control systems.
Modular Design: Enables flexible integration into existing systems with snap-in mounting on DIN EN rails, ensuring easy installation and maintenance.
NAMUR Compatibility: Designed to support NAMUR sensors for digital input signals, providing robust input capabilities.
Safety and Compliance: Complies with IEC 61010-1 standards for overvoltage protection, ensuring safe operation in industrial environments.
Redundancy Support: Works with a redundant pair of SDIL-1608 modules, enhancing system reliability.
