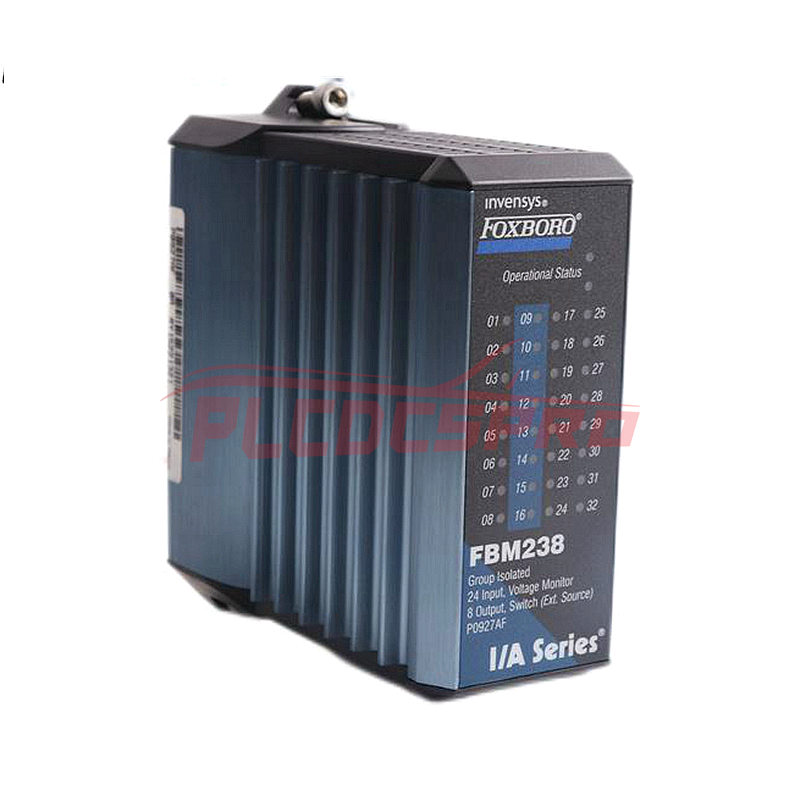

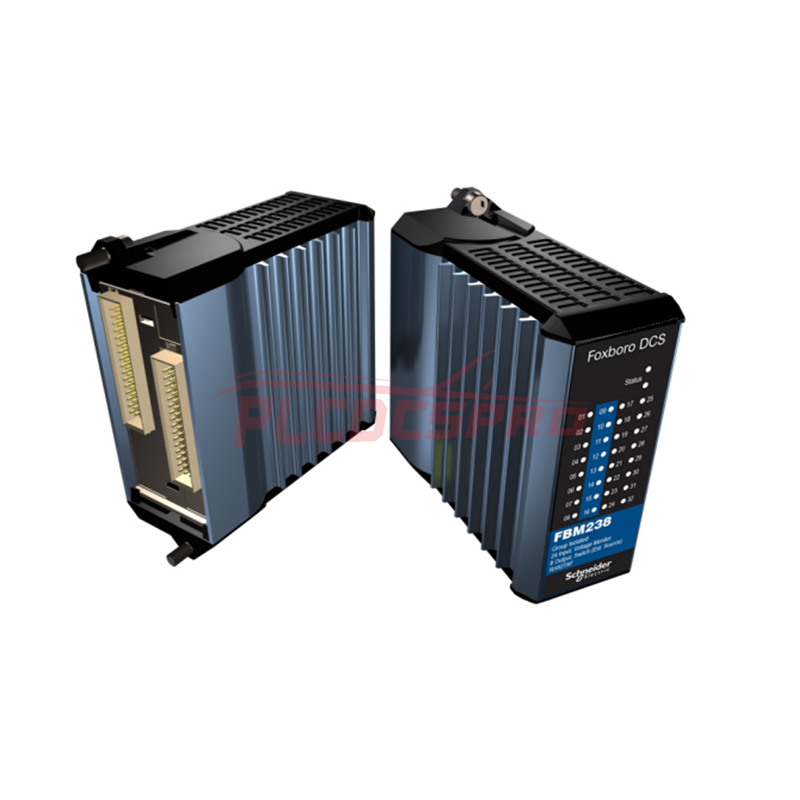

The FBM238 Discrete 24DI/8DO Interface Module is a versatile device designed for monitoring and controlling digital signals in various industrial applications. Here's a breakdown of its features and specifications:
Features:
Digital Inputs: 24 channels, supporting contact sensing or DC voltage monitoring.
Digital Outputs: 8 channels, capable of either DC output switching with an external source or DC output switching with an internal source.
Compact and Rugged Design: Suitable for harsh environments, classified as Class G3.
Input Voltage Support: Can handle various input voltages including 30V DC, 60V DC, 120V AC, 125V DC, and 240V AC.
Output Voltage Support: Capable of output switching at 60V DC, 120V AC, 125V DC, and 240V AC.
Program Execution: Executes programs for Digital I/O (ECB5) and Ladder Logic (ECB8).
Termination Assemblies (TAs): Provide per-channel isolation and support 100 Series I/O upgrade.
Communication: Communicates with its associated FCM or FCP via the module Fieldbus.
Power Requirements: Operates within an input voltage range of 24V DC ±5%.
Functional Specifications:
Input/Output Channels: 24 group isolated digital input channels and 8 group isolated digital output channels.
Filter/Debounce Time: Configurable between 0 and 32 ms.
Voltage Monitor: Supports voltage monitoring with a maximum applied voltage of 30V DC.
Contact Sense: Supports contact sensing with a nominal 24V DC open circuit voltage.
Output: Capable of handling a maximum applied voltage of 60V DC for external sourcing.
Isolation: Input and output channels are group isolated from each other and ground.
Regulatory Compliance: Meets various regulatory standards including EMC, UL, ATEX, and European Low Voltage Directive.
Environmental Specifications: Operates within a temperature range of -20°C to +70°C, with relative humidity from 5% to 95% (non-condensing), and altitude from -300m to +3,000m during operation.
Physical Specifications:
Mounting: Can be mounted on a DIN rail or a 19-inch rack horizontally using a mounting kit.
