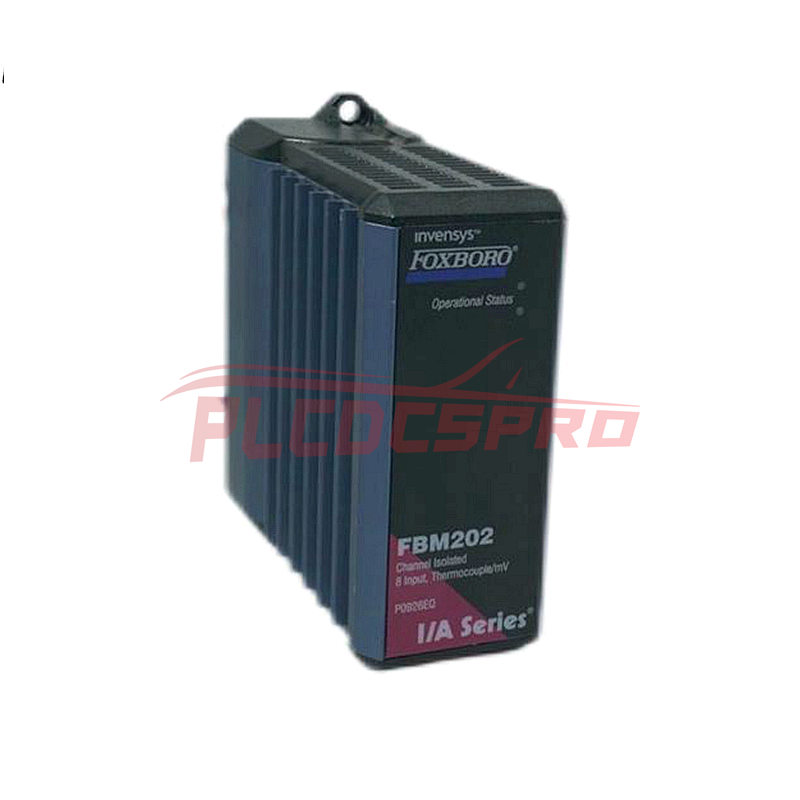

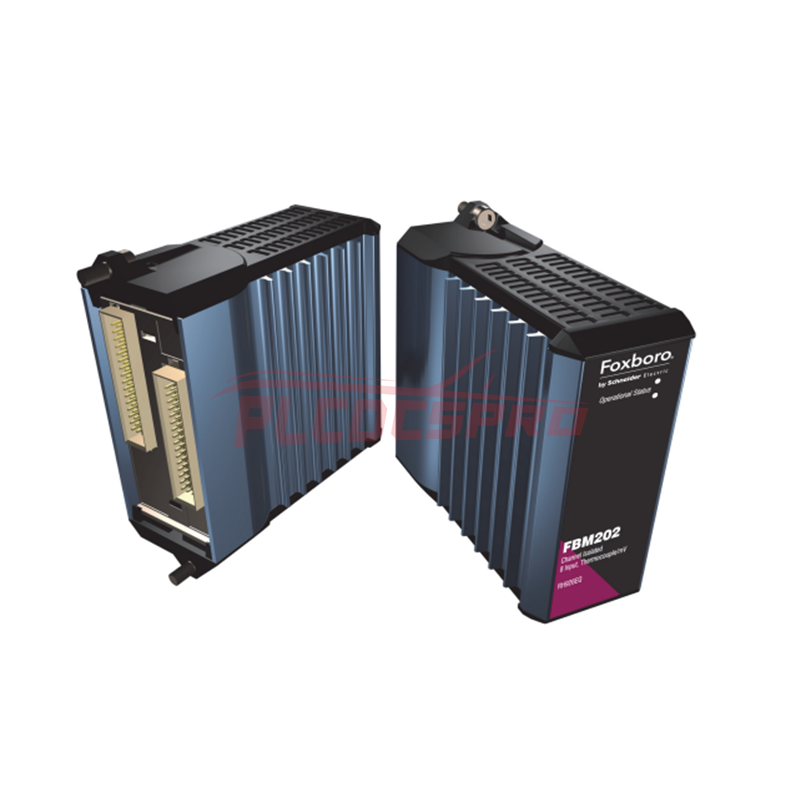

The FBM202 Thermocouple/mV Input Module is designed to interface electrical input signals from field sensors to the Fieldbus. It comprises eight thermocouple input channels and one isolated RTD reference junction compensation channel for terminal temperature sensing. Each thermocouple/mV channel is capable of accepting standard thermocouples for various temperature ranges and includes thermocouple burnout detection (up-scale). The module executes an Analog Input application program, offering configurable options for integration time and Rate of Change Limits.
Specifications:
Input Channels: Eight isolated and independent thermocouple/mV input channels, along with one isolated reference junction temperature compensation channel.
Input Range: -10.5 to +69.5 mV DC (-10.5 to +69.5 mV DC equals 0 to 64,000 raw counts).
Accuracy:
Millivolt Input: ±0.03% of span (±24 μV) at 25°C.
RTD Channel: ±0.03% of span.
RTD Reference Junction Conformity: ±0.25°C.
RTD Thermocouple Conformity: ±0.25°C.
Integration Period: Software configurable.
Input Open Circuit Voltage: 250 mV DC through 10 M ohms (mV channels).
Input Signal A/D Conversion: Each channel performs A/D signal conversion using an independent Sigma-Delta converter.
Typical Thermocouple Types: B, E, J, K, N, R, S, T, and other millivolt signals.
Thermocouple Burnout Detection: Full upscale value.
Input Channel Isolation: Each channel is galvanically isolated from all other channels and ground, withstanding a potential of 600 V AC applied for one minute.
Power Requirements: Input Voltage Range (Redundant): 24 V DC, +5%, -10%. Consumption: 3 W (maximum).
