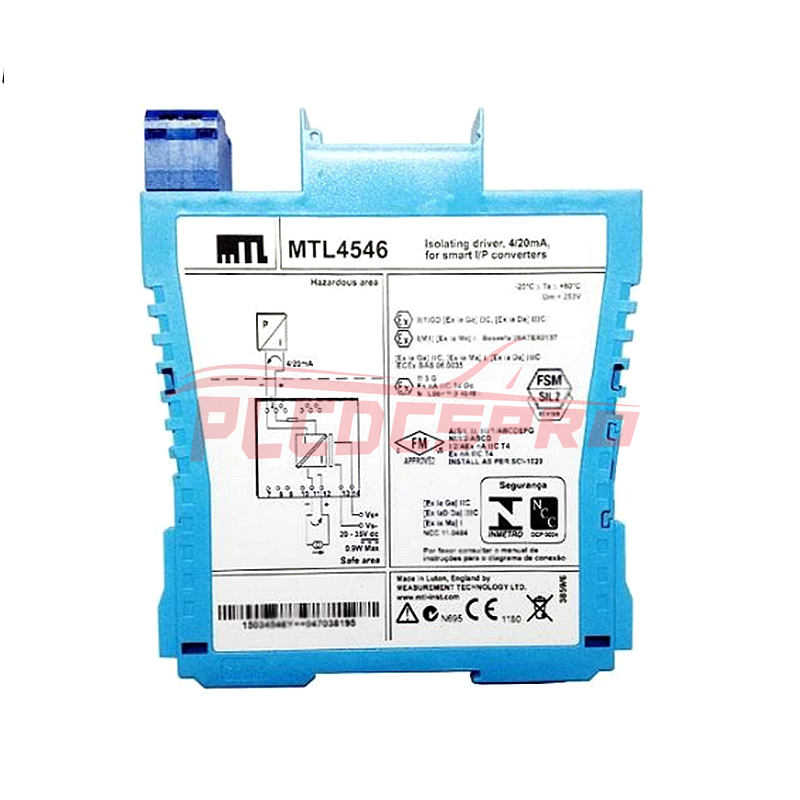

MTL4546/C/Y – MTL5546/YIsolating Driver for 4–20mA HART® Valve Positioners with Line Fault Detection
The MTLx546 series accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter or any other load up to 800Ω in a hazardous area. For HART valve positioners, the module permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring, indicated by a drop in current taken into the terminals. The MTL4546C and MTLx546Y models provide open circuit detection only, omitting short-circuit detection.
Specifications:
Number of Channels: One
Location of I/P Converter:
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A, hazardous location
Working Range: 4 to 20mA
Digital Signal Bandwidth: 500Hz to 10kHz
Maximum Load Resistance: 800Ω (16V at 20mA)
Minimum Load Resistance: 90Ω (short-circuit detection at < 50Ω)
Output Resistance: > 1MΩ
Under/Over Range Capability:
Under range = 1mA
Over range = 24mA (load ≤ 520Ω)
Input and Output Circuit Ripple: < 40µA peak-to-peak
