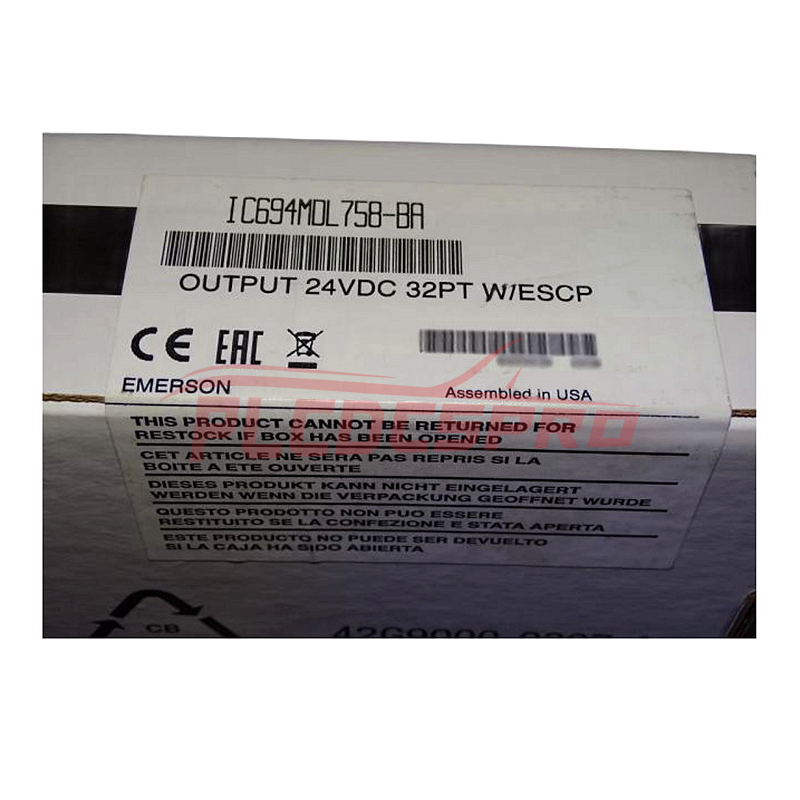

Factory Sealed GE Fanuc IC694MDL758 Pacsystems Rx3i Output Module
Sku:IC694MDL758
Country Of Origin: USA
Vendor: GE
Type: Output Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

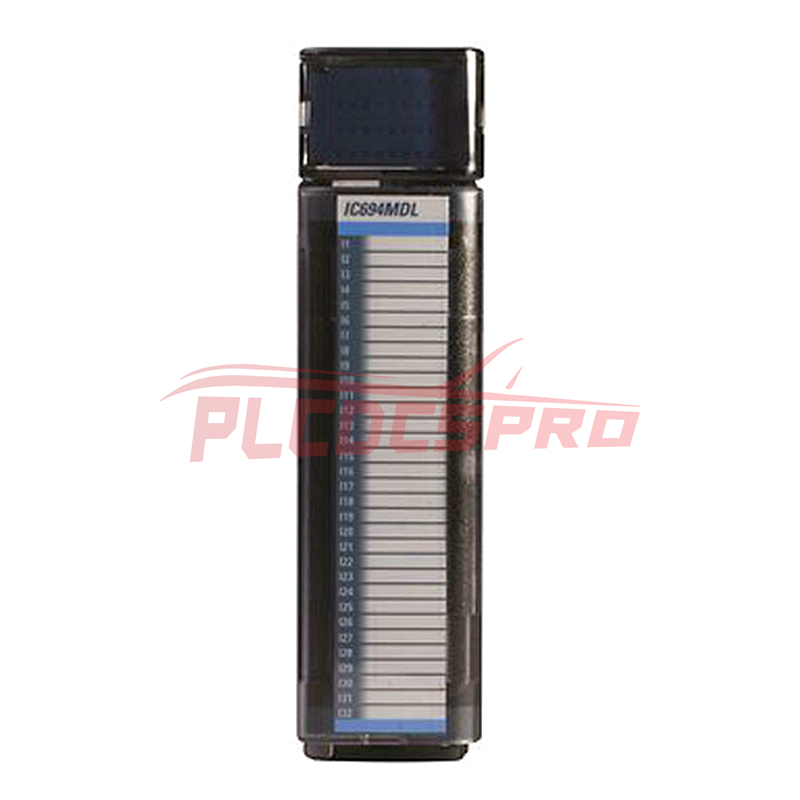

The GE Fanuc IC694MDL758 is a 32-point output module from the RX3i series. It offers positive logic outputs with electronic short circuit protection (ESCP) for industrial applications. The module consists of two isolated groups, each providing 16 outputs for flexible control.
Features
Output Type: Positive logic, sourcing type
Electronic Short Circuit Protection (ESCP): Ensures module reliability
Isolation: Optical isolation between field and backplane, and between groups
High Inrush Current Handling: Supports up to 5.4 Amps for 10 ms without ESCP trip
Specifications
Rated Voltage: 12 to 24 VDC, positive logic
Output Voltage Range: 10.2 to 28.8 VDC
Number of Outputs: 32 (two groups of 16)
Power Consumption:
250 mA (maximum) from 5V bus on backplane
33 mA (maximum) per group from 24 VDC user supply (all outputs ON)
20 mA (maximum) per group from 12 VDC user supply (all outputs ON)
Electrical Characteristics
Isolation:
Field to Backplane: 250 VAC continuous; 1500 VAC for 1 minute
Group to Group: 50 VAC continuous; 500 VAC for 1 minute
Output Current:
0.5 A per point
8 A maximum per group without ESCP trip
Inrush Current: 5.4 A for 10 ms without ESCP trip
On-State Voltage Drop: 0.3 VDC
Off-State Leakage Current: 0.1 mA (maximum)
Response Times
On Response Time: 0.5 ms (maximum)
Off Response Time: 0.5 ms (maximum)
Installation Environment
Maximum Air Temperature: 60°C
Pollution Degree: For use in Pollution Degree 2 environments only
