Data SRAM: 1 MB* *Degree of utilization depending on operating system version
Interfaces:
Two serial interfaces RS 485 with electric isolation
Diagnostic display:
Four-digit matrix display with selectable information
Shutdown on fault Safety-related watchdog with output 24 V, loadable up to 500 mA, short-circuit proof
Construction:

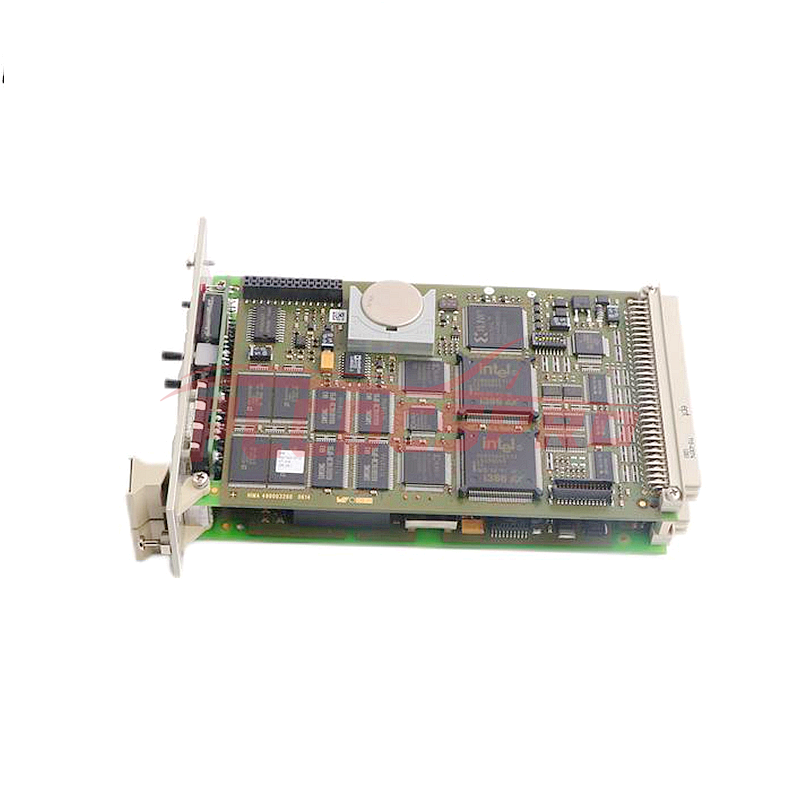

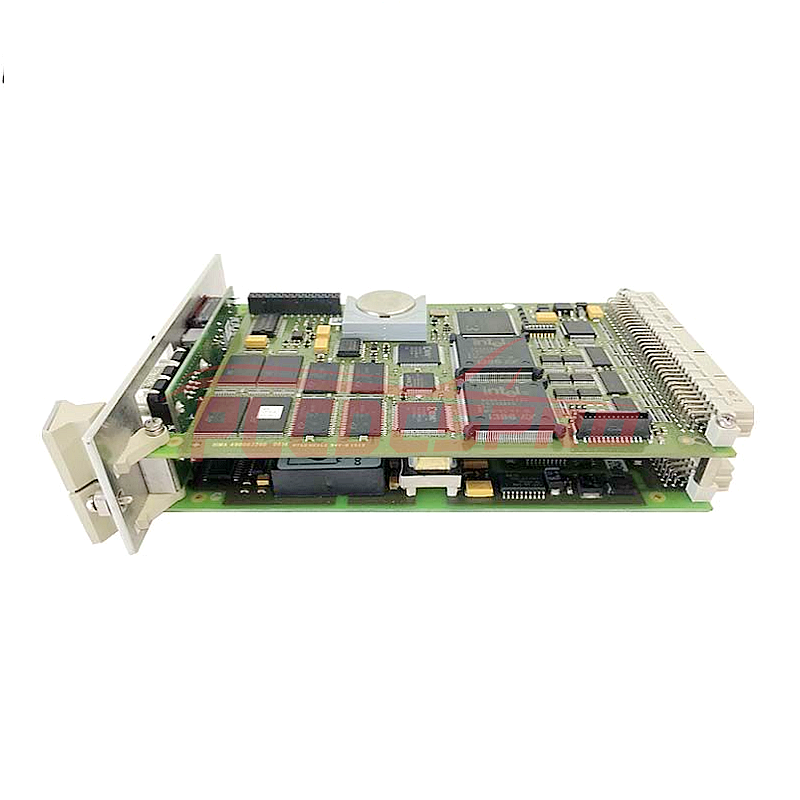

Two European standard PCBs, one PCB for the diagnostic display
Space requirement: 8 SU
Operating data: 5 V / 2 A
Applications with the communication module F 8627X:
Connection of the central module to a PADT (ELOP II TCP)
Connection to other communication partners within an Ethernet network (safeethernet, Modbus TCP)
Special features of the central module:
Self-education: from operating system BS41q/51q V7.0-8 (05.31)
ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31)

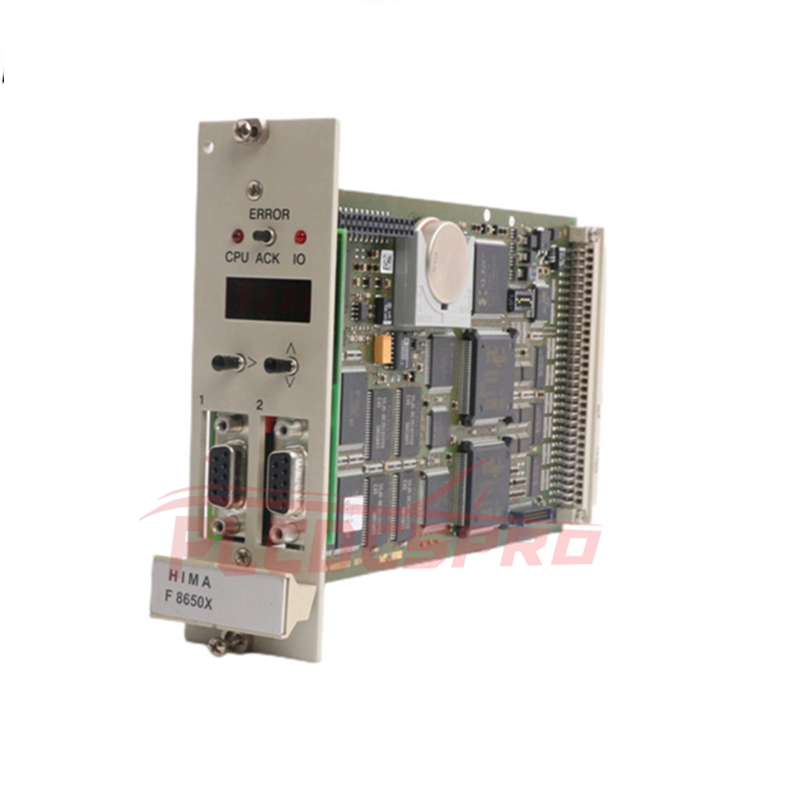

Diagnostic display of the central module:
Four-digit alphanumerical display
Two LEDs for the general display of errors (CPU for the central modules, IO for the testable input/output modules)
Two toggle switches to request detailed error information
Push-button ACK resets the error indication; in failure stop ACK behaves like restarting the system
Notes for start-up and maintenance:
Lifetime of the buffer battery (without voltage feeding):
1000 days at TA = 25 °C
200 days at TA = 60 °C
It is recommended to change the buffer battery (CPU in operation) at the latest after 6 years, or with display BATI within three months (Lithium battery, e.g. type CR 2477N, HIMA part no. 44 0000018)
Check the bus station no. and transmission rate at switch S1 for correct settings
Important: When upgrading an F 8650 to an F 8650X module the fan concept has also to be changed!
