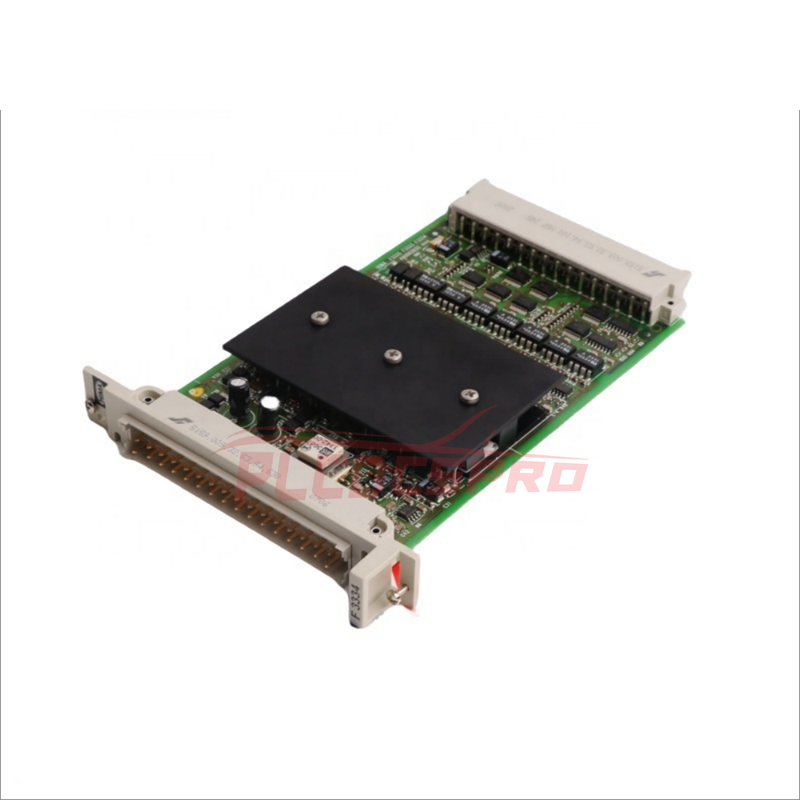

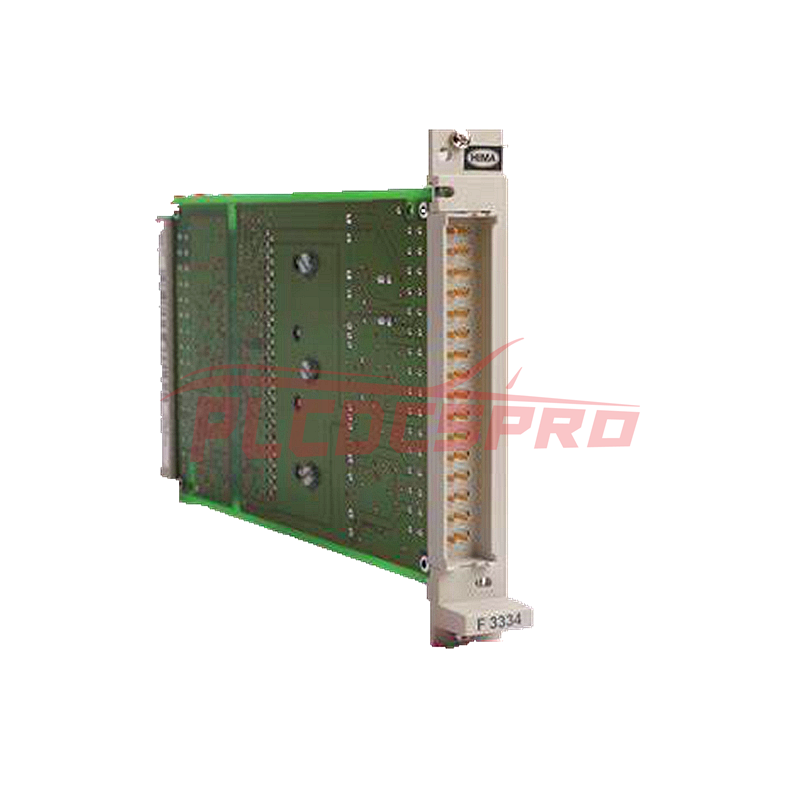

The HIMA F 3334 4-Fold Output Module is a safety-related output module engineered for SIL 3 applications in accordance with IEC 61508 standards. Featuring four independent output channels, it is designed to control various safety-critical devices such as valves, actuators, and alarms. Equipped with integrated safety shutdown, safe isolation, and line monitoring, this module ensures reliable operation in critical environments. Additionally, it undergoes automatic testing during operation to verify proper functionality.
Technical Specifications
Number of channels: 4
Output type: Digital
Maximum load current: 2 A per channel
Maximum load power: 48 W per channel
Lamp connection: Up to 25 W
Supply voltage: 24 VDC
Power consumption: 5 VDC / 130 mA, 24 VDC / 130 mA plus load
Operating temperature: -20 °C to +60 °C
Storage temperature: -40 °C to +80 °C
Protection class: IP20
Dimensions: 21 mm x 190 mm x 128 mm
Weight: 0.24 kg
Features
Safety-related: Designed for SIL 3 applications according to IEC 61508 standards.
Integrated safety shutdown: Automatically turns off outputs in case of a fault.
Safe isolation: Ensures electrical faults do not affect safety-critical devices.
Line monitoring: Monitors supply voltage and automatically shuts off outputs if voltage falls below safe levels.
Automatic testing: Self-tests during operation to ensure proper functionality.
