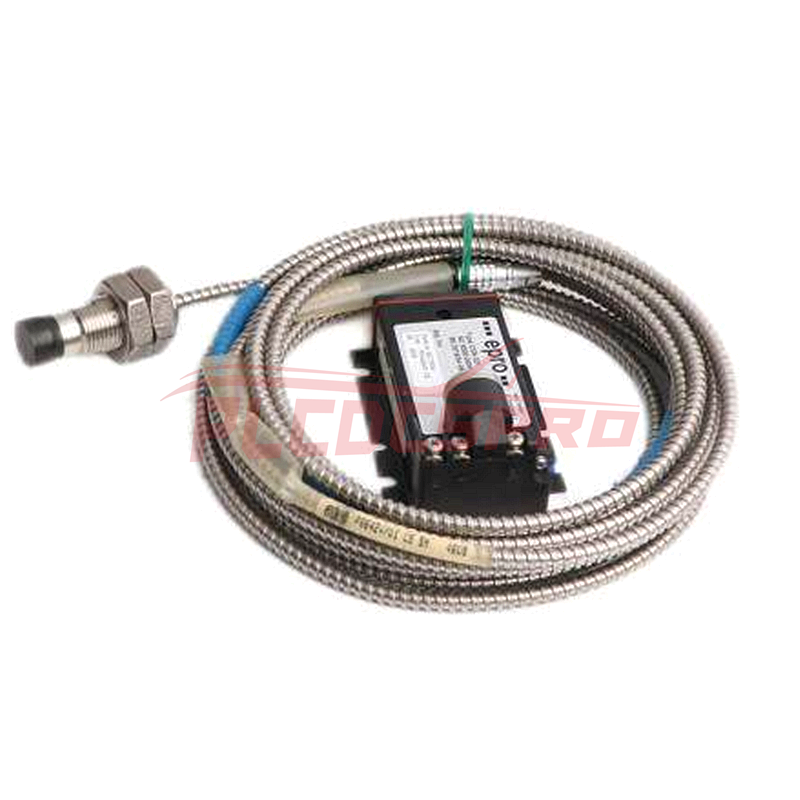

Emerson PR6424/013-130 CON021 Eddy Current Sensor With Converter
Sku:PR6424/013-130 CON021
Country Of Origin: Germany
Vendor: Emerson
Type: Sensor Converter
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Emerson Epro PR6424/013-130 Eddy Current Sensor Overview
The Emerson Epro PR6424/013-130 is a 16mm eddy current sensor designed for accurate displacement measurement of ferromagnetic targets in various industrial applications.
Applications
Vibration monitoring
Shaft runout measurement
Gap measurement
Position control
Features
High Accuracy and Reliability: Ensures precise and dependable measurement.
Non-contact Measurement: Safely measures displacement without physical contact with the target.
Wide Sensing Range:
Static Range: ±2.0 mm (0.079”)
Dynamic Range: 0 to 1,000μm (0 to 0.039”)
High Maximum Surface Speed: Up to 2,500 m/s (98,425 ips).
Wide Operating Temperature Range: -35 to 150°C (-31 to 302°F), suitable for harsh environments.
ATEX and IECEx Hazardous Area Approvals: Certified for safe use in potentially explosive atmospheres.
CSA Non-sparking Approval: Ensures safety in hazardous environments.
Technical Specifications
Sensing Range:
Static: ±2.0 mm (0.079”)
Dynamic: 0 to 1,000μm (0 to 0.039”)
Target: Ferromagnetic steel (42 Cr Mo4 Standard)
Maximum Surface Speed: 2,500 m/s (98,425 ips)
Shaft Diameter: ≥80mm
Operating Temperature Range: -35 to 150°C (-31 to 302°F)
Temperature Error: <4%/100°K (API 670 Compliant)
Pressure Resistance to Sensor Head: 10,000 hPa (145 psi)
Shock and Vibration: 5g @ 60Hz @ 25°C (77°F)
Material:
Sleeve: Stainless Steel
Cable: PTFE
Weight: ~200 grams (7.05 oz)
Compliance and Certifications
CE
ATEX
IECEx
CSA
ANSI/UL
Emerson EPRO CON021 Eddy Current Signal Converter Overview
The Emerson EPRO CON021 is a specialized signal converter designed for critical turbomachinery applications, offering precise measurement capabilities for various parameters.
Features
Panel Mount Design: Suitable for integration into control panels or cabinets.
High Accuracy and Repeatability: Provides reliable and consistent measurement results.
Wide Measurement Range: Capable of measuring up to 20 mm.
Variety of Output Signal Options: Offers flexibility with 4-20 mA, 0-10 V, or ±10 V output signals.
Easy to Install and Configure: Simplifies setup and integration into monitoring systems.
Technical Specifications
Input: Eddy current probe
Output: 4-20 mA, 0-10 V, or ±10 V
Accuracy: ±0.2% of full scale
Repeatability: ±0.1% of full scale
Measurement Range: Up to 20 mm
Operating Temperature: -40 to 85°C
Enclosure Rating: IP67 (protected against dust and water immersion)
