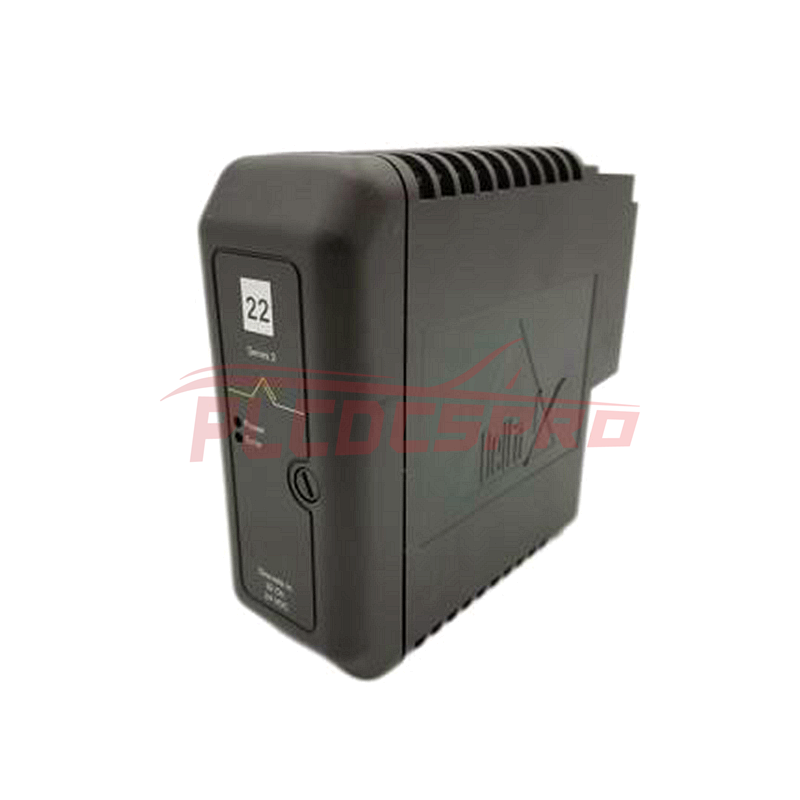

The Emerson Delta V KJ3203X1-BA1 is a 32-channel discrete input card designed for integration into the DeltaV distributed control system (DCS). It facilitates monitoring and control of discrete signals from various field devices such as switches, pushbuttons, and sensors, offering reliability and durability in industrial applications.
32 Dry Contact Inputs: Allows for connection and monitoring of numerous discrete signals.
Nominal Input Voltage: Operates with a nominal input voltage of 24 VDC.
Form A Contact Configuration: Utilizes Form A (normally open) contact configuration for reliable signal detection.
Optically Isolated Inputs: Ensures signal integrity and protection against electrical noise.
Reverse Polarity Protection: Guards against incorrect wiring or voltage polarity.
DIN Rail Mounting: Enables easy and secure installation on DIN rails, typical in industrial environments.
ATEX and IECEx Certified: Certified for use in hazardous locations, complying with international safety standards.
Parameter | Value |
---|---|
Input Voltage Range | 21.6 to 26.4 VDC |
Input Current | < 1 mA |
Input Switching Time | < 2 ms |
Output Voltage Range | 0 to 24 VDC |
Output Current | < 100 mA |
Output Switching Time | < 2 ms |
Power Consumption | < 1.5 W |
Operating Temperature Range | -40 to 70 °C (-40 to 158 °F) |
Storage Temperature Range | -40 to 85 °C (-40 to 185 °F) |
Humidity Range | 0 to 95% RH (non-condensing) |
Vibration | 0.5 g rms, 5 to 500 Hz |
Shock | 15 g, 11 ms half-sine pulse |
MTBF | > 25 years |
