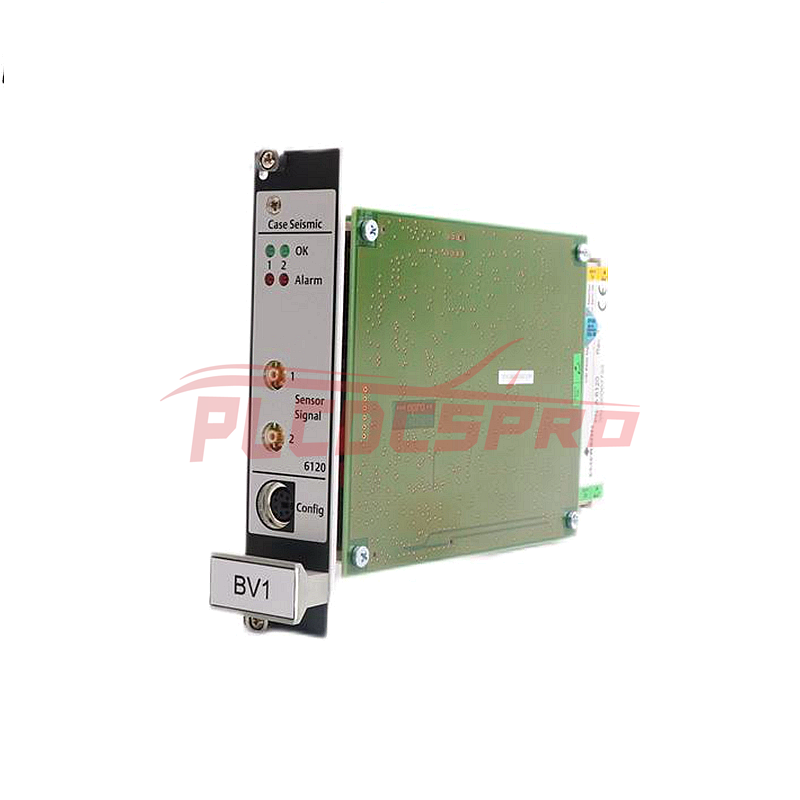

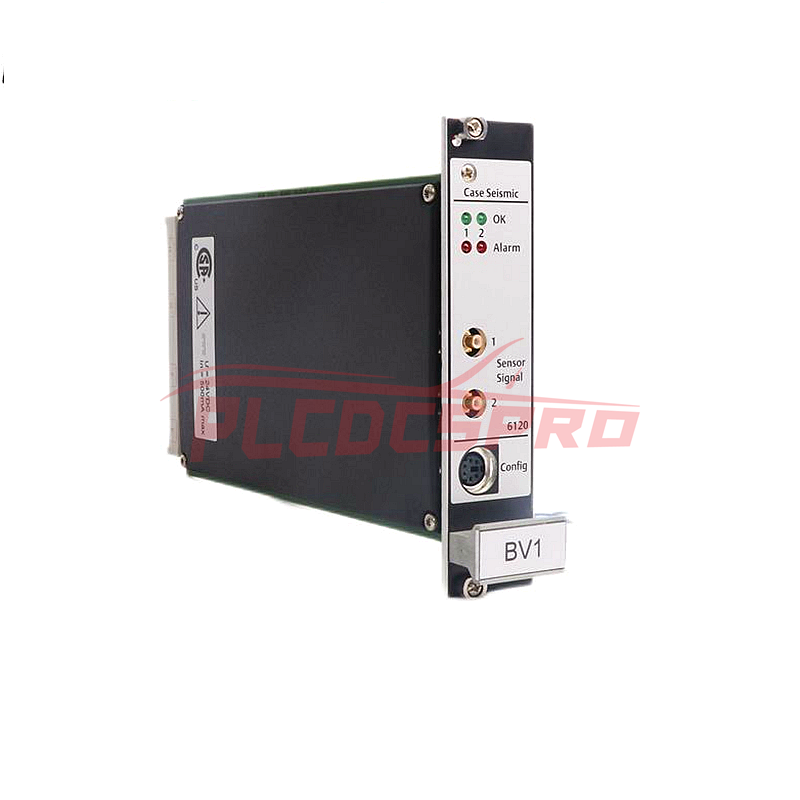

Emerson Epro A6120 Case Seismic Electro-dynamic Vibration Monitor
Sku:A6120
Country Of Origin: Germany
Vendor: Emerson
Type: Vibration Monitoring
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
CSI A6120 Case Seismic Vibration Monitor for CSI 6500 Machinery Health Monitor
Compact Design: Two-channel, 3U size, 1-slot plug-in module reduces cabinet space requirements by half compared to traditional four-channel 6U size cards.
Compliance: API 670 compliant, hot-swappable module.
Remote Functionality: Remote selectable limit multiply and trip bypass.
Outputs: Front and rear buffered and proportional outputs, 0/4-20 mA output, 0 - 10 V output.
Compatible Sensors: For use with electro-dynamic (electro-mechanical) sensor 9266, 9267, or 9268.
Transducer Inputs
Number of Inputs: Two independent channels.
Type of Inputs: Electro-dynamic (electro-mechanical), differential.
Emerson Sensor Inputs Part Numbers: 9266, 9267, or 9268.
Isolation: Galvanically separated from power supply.
Input Resistance: >100 kΩ.
Input Voltage Range: -5 - +15 VDC.
Input Frequency Range:
Lower cutoff: 1 or 5 Hz.
Upper cutoff: Adjustable from 50 - 2000 Hz.
Measuring Range
Range: Continuously adjustable with configuration software.
Vrms (Metric): 5 - 100 mm/s (±25 to ±500 μm).
Vrms (English): 0.197 in/sec to 3.937 in/sec (±0.984 mils to ±19.685 mils).
Frequency Range: 10 - 1000 Hz (VDI 2056, DIN 4566, ISO 3945).
Selectable Frequency Range: 5 - 50 Hz, 10 - 50 Hz, 50 - 1000 Hz, or 50 - 1600 Hz.
Lifting Coil Current: 0 - 8 mA configurable in steps of 40 μA.
Lifting Coil Current Accuracy: ±0.5% of full-scale range, ±0.5% of configured value.
Max Permissible Load: 3.4 kΩ at 2 mA.
Min/Max Dynamic Input Voltage: 311 mV peak to peak, 9500 mV peak to peak.
Sensor Power Supply: Separate buffered sensor supply, galvanically separated from all system voltages and system supply voltage, open and short circuit proof.
Front Panel Outputs
LED Indicators: Two LED's indicating channel OK separately for each channel.
Alert Indicators: Two LED's indicating alert and danger separately for each channel.
Buffered Outputs: Two identical to transducer sensor inputs, ±10 V, >100 kΩ load, frequency range 0.1Hz - 5kHz (-3 dB).
Mini DIN Configuration Socket: Module interface connection for configuration and parameter and status monitoring, RS-232.
Analysis
Measurement Modes: Hot configurable, independent dual-channel, Vrms (VDI 2056), zero to peak, peak to peak (DIN 45666 and ISO 3945).
Analysis Parameters: ½x, 1 - 10x and phase angle of same, available via ModBus TCP/IP output.
Rear Outputs Available
Current Outputs: 0/4-20 mA output for each channel proportional to main value, open/short circuit proof, permissible load <500 Ω, accuracy ±1% of full scale, configurable settling time.
Voltage Outputs: 0 - 10 VDC output proportional to main value for each channel, open/short circuit proof.
Rear Buffered Outputs: Raw buffered output signal, 0 - 12 V peak to peak, open/short circuit proof, frequency range 0.1Hz - 15 kHz (-3 dB).
CSI 4500 Interface
4-channel connector designed for CSI 4500 plug & play.
Alarm Setpoints & Time Delays
Alert/Danger Alarms: Selectable normally open or normally closed, configurable time delays per channel, adjustable range 5 - 100% of full scale value, resolution 1% of full scale value, alarm hysteresis.
OK Self Checking
Green LED Indicators: Self-checking (normally closed) for power supply, sensor, cable, module, overload, internal temperature, system watchdog.
Limit Multiply & Trip Bypass
Remote control via relay input, adjustable factor (1.00-4.99).
Environmental Specifications
Module: IP 00, DIN 40050.
Front Plate: IP 21, DIN 40050.
Climate: DIN 40040 class KTF.
Operating Temperature: 0° - 65°C (32° - 149°F).
Storage Temperature: -30°- 85°C (-22° - 185°F).
Relative Humidity: 5 - 95%, non-condensing.
Vibration/Shock Resistance: IEC 68-2, part 6/29.
EMC Resistance: EN50081-1 / EN50082-2.
Power Consumption: Max. 6 W, 250 mA at 24 VDC, password-protected configuration.
Dimensions
PCB/EURO Card Format: DIN 41494, 100 x 160mm (3.937 x 6.300in).
Width: 30.0mm (1.181in) (6 TE).
Height: 128.4mm (5.055in) (3 HE).
Length: 160.0mm (6.300in).
Weight: Net 320g (0.705lbs), Gross 450g (0.992lbs) including standard packing.
Packing Volume: Approx. 2.5dm³ (0.08ft³).
Space Requirements: 1 slot, 14 modules fit into each 19” rack.
