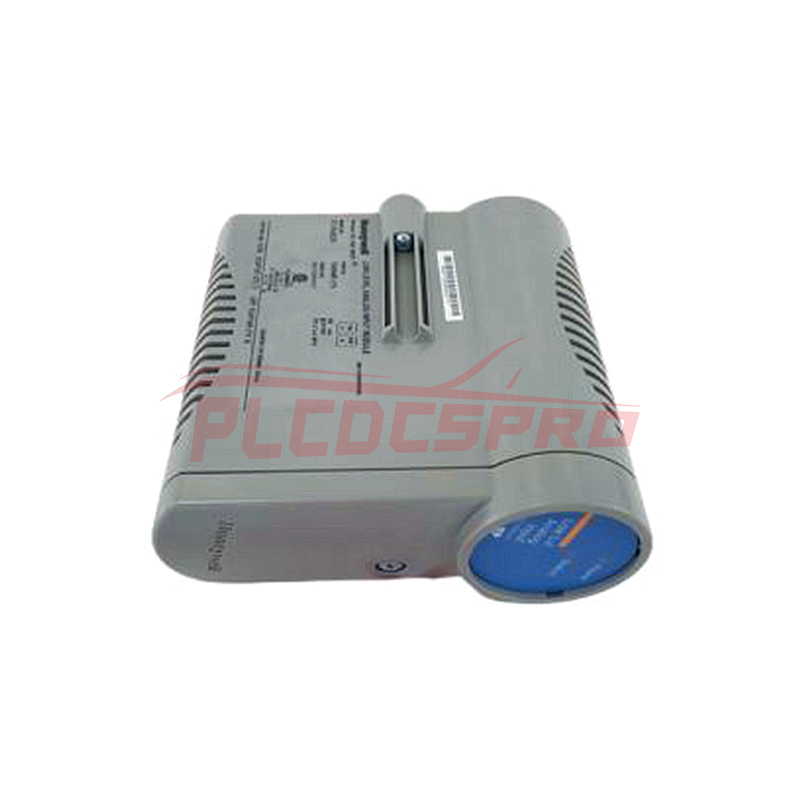

The Honeywell CC-PAIM01 is a low-level input multiplexer designed for industrial automation systems. It supports thermocouple and RTD inputs across 64 fully isolated channels, providing precise signal processing and reliable performance.
Key Features
Input Type: Thermocouple and/or RTD
Isolation: 64 fully-isolated channels, including channel-to-channel, channel-to-PM, and channel-to-power supply common.
High Precision: Accurate signal conversion with minimal error.
Specifications
Parameter
Specification
Input / Output Model
CC-PAIM01
PMIO FTA Models
1 MU-TAMR04, TAMT04, TAMT14
Input Channels
64 fully-isolated, in 16 channel increments
Input Scan Rate
1 Second fixed by IOM (up to 64 channels/sec max.)
Channel Bandwidth
0 to 4.7 Hz (-3 dB)
Nominal Input Range (TC only)
-20 to +100 millivolts
Max Normal Mode Input (TC)
-10 to +10 volts
Max Normal Mode Input (RTD)
-1 to +2 Volts @ 100 milliamps
Gain Error (TC Range)
0.050% full scale max
Temperature Stability (TC/mV Inputs)
+/-20 ppm per °C max
Temperature Stability (RTD Inputs)
+/-20 ppm per °C max
Long Term Drift
500 ppm
Input Impedance (TC only)
1 megohm at dc
CMV with Respect to Power System Common, DC to 60 Hz
+/-250 VDC or VAC RMS
CMRR, 50 or 60 Hz
120 dB min (with 1000 ohms source impedance max.)
Voltage, Channel-to-Channel, DC to 60 Hz
+/-250 VDC or VAC RMS
Crosstalk, DC to 60 Hz
80 dB (120 dB at 50 and 60 Hz)
NMRR at 50/60 Hz
60 dB min
Line Frequency Integration
Fixed selection of 50 Hz or 60 Hz
RTD Sensor Excitation Current
1 milliamp
Cold Junction Reference Accuracy
0 to +50°C - +/-1.0°C Max<br>-20 to +60°C - +/-1.5°C Max
